*** This is a Brand new item taken from a kit (chopped part), therefore will not have a Traxxas packaging ***

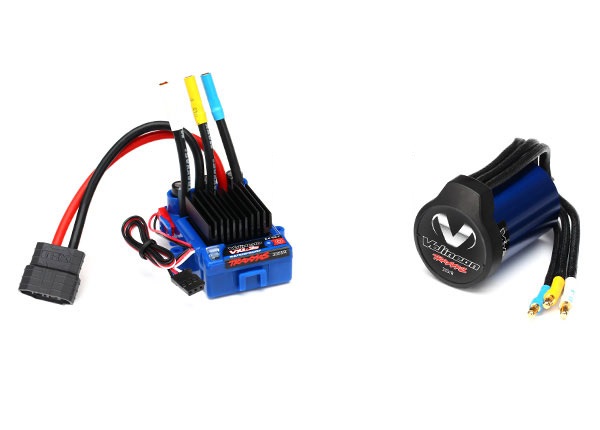

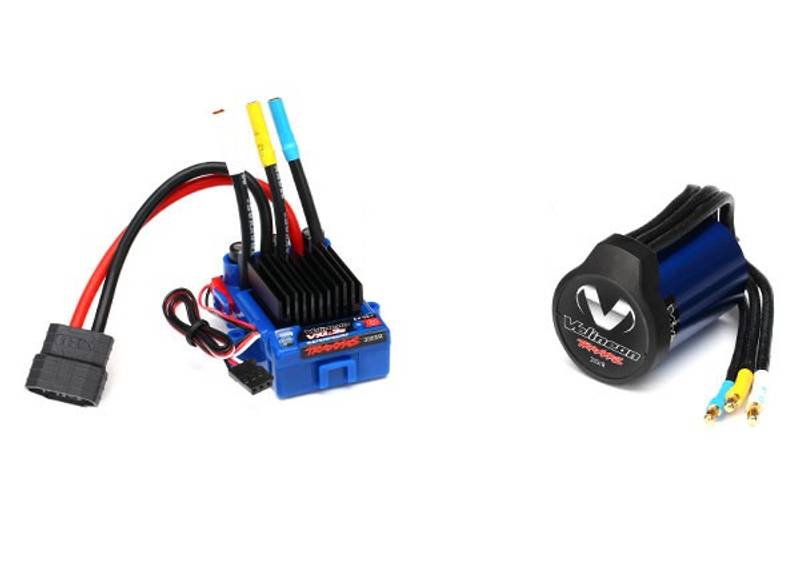

Waterproof Velineon VXL-3s Brushless Power System (includes VXL-3s ESC og Velineon 3500 motor)
Børsteløst powersett til elektrobiler, på 3 celler yter denne motoren veldig mye og kan fint brukes alene som motor i E-Maxx, E-Revo eller lignende biler. Som motorsett i 1:10 får dette powersettet lett bilen opp i 100km/h. 4mm aksel.
- This is the Traxxas Velineon Extreme Brushless Power System for electric powered R/C vehicles.
- FEATURES: Each component engineered to work wih each other to eliminate restrictions and allow maximum power flow
Velineon VXL3s ESC; vAuto-detects and compatible with brushed, brushless and sensored brushless motors
- Compatible with NiCd, NiMH (4-9 cells) and 2-3 cell LiPo battery
- packs-two stage low voltage detection for LiPos
- Three driver profiles-Sport, Race and Training Modes
- Gold-plated motor connectors
- Velineon 3500 Brushless Motor;
- 10-turn 3500kV
- Optimized for extreme power and efficiency in 1/10 scale vehicles
- Ultra high temp neodymium magnets, high-speed ball bearings
- Precision balanced rotor
- Traxxas High-Current Connector
- Reverse polarity protection makes backward connections impossible
- Compatible with high-current 12-gauge wire
- Gold-plated wide surface terminals
- Textured surface for easy gripping
- INCLUDES: Velineon VXL3s ESC, Velineon 3500 Brushless Motor and high-current connector
- REQUIRES: Installing in vehicle
- NiCad, NiMH (4-10 cells) or 2-3 cell LiPo battery
SPECS: VXL-3s
- Input voltage: 4.8-11.1V (4-9 cells NiMH or 2S-3S LiPo)
- Supported motors: Brushed/Brushless/Sensorless brushless
- Motor Limit: None
- Continuous current: 200A
- Peak current: 320A
- BEC voltage 6.0V DC
- Transistor type: MOSFET
- On-resisteance: 0.00075 ohms Max (0.006/8 FETs)
- PWM frequency: 12,000Hz
- Battery connectors: Traxxas High-Current Connector
- Motor connectors: TRX 3.5mm bullet connectors
- Motor/battery wiring: 12-gauge Maxx Cable
- Thermal protection: 2-ge thermal shutdown
- Case size (l/w/h): 2.19" x 1.54" x 1.3" (55 x 39 x 33mm)
- Weight: 3.17oz (90g)
- Velineon 3500
- Type: Sensorless brushless
- RPM/volt: 3500 (10-turn)
- Magnet type: Ultra High-Temperature, sintered neodymium
- Connection type: TRX 3.5mm bullet connectors
- Wire Size: 12-gauge Maxx Cable w/ solder tabs
- Current Ratings: 65A constant; 100A peak/burst
- Max RPM: 50,000
- Diameter: 1.42" (36mm) (540 size)
- Length: 2.165"(55mm)
- Weight: 9.24oz (262g)
