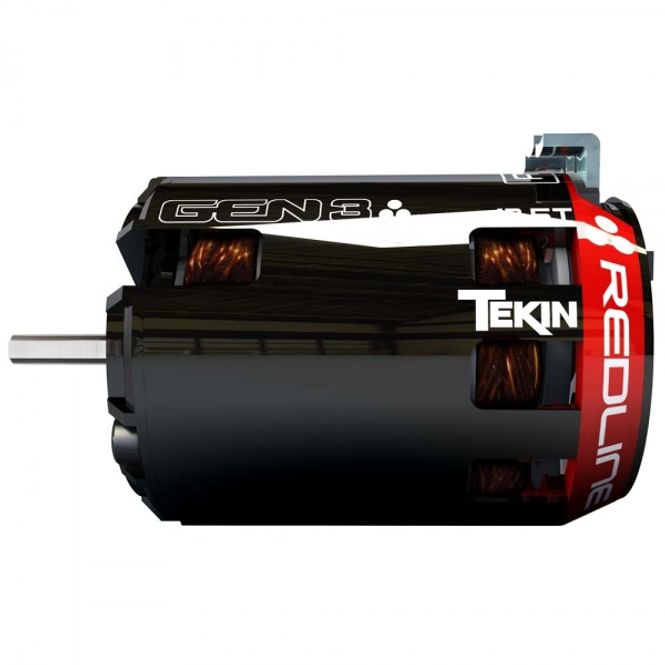

Tekin 10.5 Redline Gen3 Sensored BL Motor 36mm

Art.nr: 2708

Copied

This is the Tekin Redline GEN3 10.5 Turn Brushless Sensored Motor.     FEATURES CNC machined T 6061 billet aluminum heat sink can For on- or off-road use 12.5mm performance rotor Dual-plug sensor wire harness for all sensored and sensorless systems Anodized end-bell plates maximize corrosion and wear resistance High RPM precision ball bearings Neodymium sintered magnet Rebuildable Adjustable timing Low resistance solder tabs Solderless sensor PCB replacement     INCLUDES Redline GEN3 10.5 Turn Brushless Sensored Motor with Sensor Wire     SPECIFICATIONS Input Voltage: 2S all, 3S-10.5 and up Shaft Dimensions: 3.2mm (1/8") x 15.3mm Weight: 5.6oz (158g) Motor Diameter: 1.40" (35.85mm) Motor Length: 1.9" (48.5mm) Bearing Dimensions: Front: 4x13x5mm / Rear: 1/8x3/8x5/32"

1.295,-

KJØP

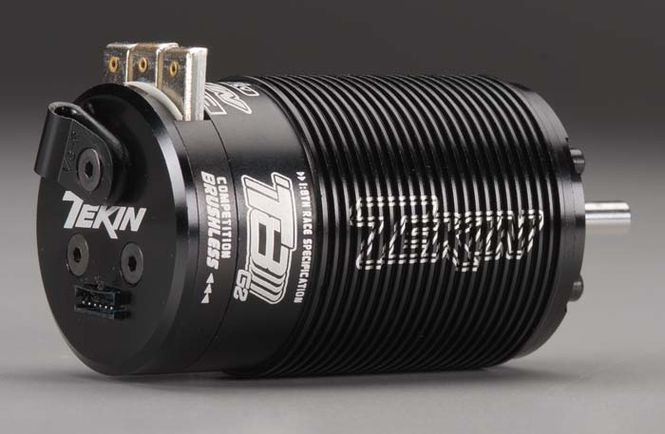

Tekin 2359 1/8 T8 Gen2 4030 Brushless Motor 1400kV

Art.nr: 2359

Copied

This is the Tekin Redline T8 Gen 2 1400kV Sensored Brushless Motor.     FEATURES Designed for 1/8 scale buggies CNC machined 6061 T6 billet aluminum ribbed heatsink can ROAR approved Sensored and sensorless operation Dual plug sensor wire harness Four pole neodymium sintered magnet ABEC5 precision high-speed oversize bearings Rebuildable design High current solder tabs Solderless sensor PCB replacement     INCLUDES Tekin Redline T8 Gen 2 1400kV Sensored Brushless Motor     REQUIREMENTS Electronic Speed Control such as the Tekin RX8 GEN2, TT2301     SPECIFICATIONS Motor Length: 2.71" (69mm) Motor Diameter: 1.57" (40mm) Shaft Dimensions: 19x5mm Weight: 11oz (311g) Voltage: 4S-6S kV: 1400 Rotor: 18.5mm

2.190,-

KJØP

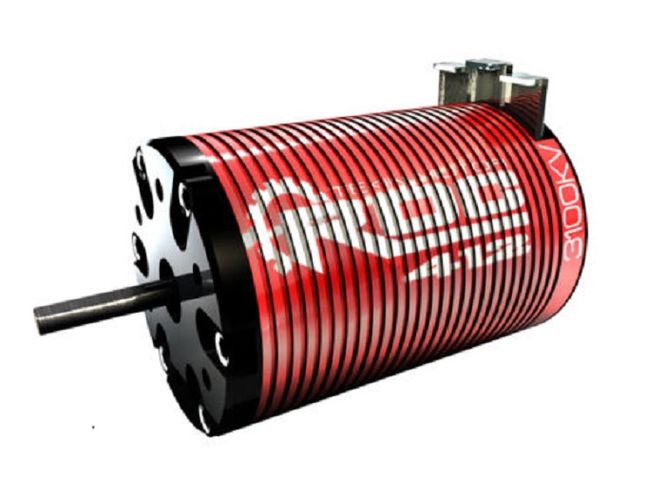

Tekin 2600 ROC 412 Brushless Crawler 3100kV Motor

Art.nr: 2600

Copied

This is the Tekin Redline ROC 412 3100kV 1.5Y Turn Brushless Sensored Crawler Motor. FEATURES Four pole twelve slot high torque design CNC machined 6061 T6 billet aluminum heat sink can Dual plug sensor wire harness for use with all sensored and sensorless systems High purity copper windings Anodized endbell plate for corrosion and wear resistance INCLUDES Tekin Redline ROC 412 3100kV 1.5Y Crawler Motor with Sensor Wire SPECIFICATIONS Motor Length: 2.1" (52.9mm) Motor Diameter: 1.4" (35.8mm) Shaft Dimensions: .60 x .125" (15.3 x 3.18mm) Weight: 6.3oz (180g)

1.690,-

KJØP

Tekin 2713 5.5 Redline Gen3 Sensored BL Motor 36mm

Art.nr: 2713

Copied

This is the Tekin Redline GEN3 5.5 Turn Brushless Sensored Motor. FEATURES CNC machined T 6061 billet aluminum heat sink can For on- or off-road use 13mm performance rotor for extra torque needed for modified racing Dual-plug sensor wire harness for all sensored and sensorless systems Anodized end-bell plates maximize corrosion and wear resistance High RPM precision ball bearings Neodymium sintered magnet Rebuildable Adjustable timing Low resistance solder tabs Solderless sensor PCB replacement INCLUDES Redline GEN3 5.5 Turn Brushless Sensored Motor with Sensor Wire SPECIFICATIONS Input Voltage: 2S all, 3S-10.5 and up Shaft Dimensions: 3.2mm (1/8") x 15.3mm Weight: 5.6oz (158g) Motor Diameter: 1.40" (35.85mm) Motor Length: 1.9" (48.5mm) Bearing Dimensions: Front: 4x13x5mm / Rear: 1/8x3/8x5/32"

1.295,-

KJØP

Tekin 3805 Pro Crawlwer Motor Rebuild Kit ...

Art.nr: 3805

Copied

This is the Motor Rebuild Kit for the Tekin Pro Rock Crawling Motors.     FEATURES Restores performance to Tekin Pro brushed rock crawling motors with  worn brushes   INCLUDES Two Brushes and two Springs

119,-

KJØP

Tekin 3825 Hotwire Adaptor Gen2 ESC's

Art.nr: 3825

Copied

This is the HotWire Adaptor for use with the Tekin RXS, RX8G2 and RSG2 ESCs. FEATURES: Plugs between the ESC and the HotWire and allows the HotWire PC interface to be used with the electronic speed controls listed above INCLUDES: HotWire Adaptor with Connectors

79,-

KJØP

Tekin ROC 412 4-Pole Sensored Brushless Rock Crawler ...

Art.nr: 2601

Copied

This is the Tekin ROC 412, 2300kV 4-Pole Sensored Brushless Rock Crawler Motor. Tekin's latest contribution to the popular Redline series of brushless motors is the ROC 412 crawler motor. The ROC 412 provides enthusiasts with the next generation in crawling performance. The 412 gives 3S LiPo / 35T brushed crawler speeds with 2S LiPo / 55T brushed precision and feel. Using a 4-pole, 12-slot motor design, the ROC 412 harnesses the benefits of brushless torque and efficiency to keep you on the trail longer with more power. Couple the ROC 412 with an RS or RX8 speed control for the smoothest brushless crawling system available. Take your rig to the next level with the ROC 412.  Designed specifically for rock crawlers and scale trail rigs, the ROC 412 boasts the proven 4-pole 12-slot sensored motor design from the popular T8 and Pro4 series motors. Some special tweaks have been made to produce a powerplant capable of pushing your G6 trail ride or competition crawler to maximum performance. Grab a ROC 412 today for the ultimate in rock-crushing, axle-snapping power.  Features:  4 Pole 12 Slot Hi-torque Motor Design CNC Machined 6061 T6 Billet Aluminum Heatsink Can Crawler and Trail Rig Specific Neodymium Sintered Magnets Rebuildable Design High Purity Copper Windings Maximizes Efficiency Precision Engineered for Maximum Energy Conversion Dual-Plug Sensor Wire Harness for use with all sensored and sensorless systems High RPM ABEC5 Oversized Bearings  Specifications:  Weight: 6.95oz / 197g  Shaft Dimensions: .60"x .125" / 3.18mm (1/8") x 15.3mm  Motor Diameter: 1.4" / 35.8mm  Motor Length: 2.1" / 52.9mm  Bearing Dimensions: Front: 5x14x5mm / Rear: 5x11x5  Turns: 2Y  Voltage: 2-4S   kV: 2300   Rotor: 18.5mm

1.690,-

KJØP

Tekin ROC412 Element Proof 4-Pole Sensored Brushless ...

Art.nr: TT2622

Copied

Tekin ROC412 Element Proof 4-Pole Sensored Brushless Rock Crawler Motor (3100kV) The Tekin ROC412 Element Proof 4-Pole Sensored Brushless Rock Crawler Motor offers protection from the elements, giving you the power to take on the trails or track without fear of water, mud or snow! Designed for heavier trail or rock racing rigs, the ROC 412 delivers more torque and more power on demand. Using a 4-pole 12-slot motor design, the ROC 412 harnesses the benefits of brushless efficiency and reliability to keep you and your rig on the trail longer with more power. When combined with the ROC 412 with an RX4 or RS GEN2 speed control and you have the smooth power and precision required for rock racing or crawling at your disposal.   Features: Element Proof design tackles Water, Mud and Snow* 18.5mm Rotor provides more Torque and Braking Power 4 Pole 12 Slot Hi-torque Motor Design CNC Machined 6061-T6 Billet Aluminum Heatsink Can Crawler, Rock Race and Trail Rig Specific Neodymium Sintered Magnets Rebuildable Design High Purity Copper Windings Maximizes Efficiency Precision Engineered for Maximum Energy Conversion Dual-Plug Sensor Wire Harness for use with all sensored and sensorless systems High RPM ABEC5 Oversized Bearings NOTE: * Element Proof ESCs and Motors are specially designed to withstand water splashes and are not meant to be submerged. Included dielectric grease must be used on the sensor and fan port connections to protect them from shorting. ** The ROC412 EP is not intended for operation while submerged in liquid. *** Anytime your motor sees water it is important that you perform the proper after run maintenance. Warranty does not cover neglect, lack of maintenance, bearings, rust or any damage that may occur if the motor is submerged in water. Specifications: Input Voltage: 2S - 5700kV / 4600kV / 3100kV 3S - 3100kV / 2300kV / 1800kV 4S - 2300kV / 1800kV / 1200kV 5S - 1800kV / 1200kV / 500kV 6S - 1200kV / 500kV Weight: 180g / 6.3oz Shaft Dimensions: 3.2mm (1/8") x 15.3mm Motor Diameter: 35.8mm / 1.41" Motor Length: 52.5mm / 2.10" Bearing Dimensions: Front: 5 x 14 x 5mm / Rear: 5 x 11 x 5mm Rotor Size: 18.5mm Rebuildable: Yes

1.999,-

KJØP

Tekin ROC412EP HD Brushless Crawler Motor 2D 3100kV

Art.nr: 2631

Copied

  This is the Tekin ROC412EP HD 2D 3100Kv Brushless Crawler Motor.       FEATURES Designed for heavier trail or rock racing rigs 4 pole 12 slot crawler motor design CNC machined 6061 T6 billet aluminum heatsink can High RPM ABEC5 oversized ball bearings 18.5mm rotor for greater torque and braking power Neodymium sintered magnets Rebuildable 0.196" (5mm) diameter high-strength pinion shaft Dual-plug sensor wire harness for use with all sensored and sensorless systems EP Element Proof design tackles water, mud and snow* _   INCLUDES ROC412EP HD 2D 3100Kv Brushless Crawler Motor     REQUIREMENTS Electronic Speed Control such as the Tekin RX4. Pinion gear of modeler's choice     SPECIFICATIONS Input Voltage: 2-3S Weight: 7.8oz (221g) Shaft Dimensions: .196 x .60" (5 x 15.3mm) Motor Diameter: 2.5" (62.5mm) Motor Length: 2.5" (62.5mm) Bearing Dimensions: Front: 5 x 14 x 5mm, Rear: 5 x 11 x 5mm Rotor Size: 18.5mm     COMMENTS *Designed to withstand water splashes, not meant for operation when submerged in liquid. Included dielectric grease must be used on the sensor and fan port connections to protect them from shorting.

1.990,-

KJØP

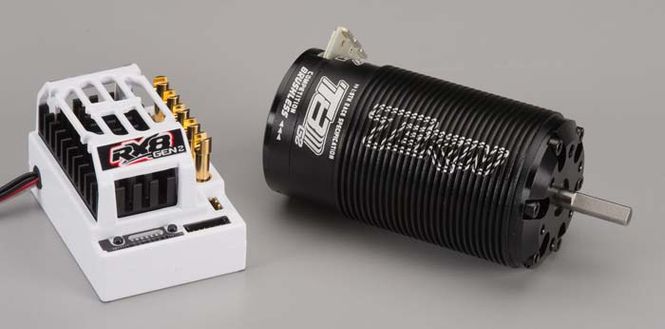

Tekin 2327 1/8 RX8 Gen2 Brushless ESC/1700KV 4038 ...

Art.nr: 2327

Copied

This is the Tekin Redline T8 Gen 2 1700kV Sensored Brushless Motor and the RX8 GEN2 Electronic Speed Control. FEATURES Motor; Tekin 2367 Designed for 1/8 scale truggies CNC machined 6061 T6 billet aluminum ribbed heatsink can ROAR approved Sensored and sensorless operation Dual plug sensor wire harness Four pole neodymium sintered magnet ABEC5 precision high-speed oversize bearings Rebuildable design High current solder tabs Solderless sensor PCB replacement ESC;Tekin 2301 HotWire PC interface for advanced programming and updating (Hotwire Interface (Tekin 1450) and Adapter (Tekin 3825) must be purchased separately) Datalogging capability D2 Dual Drive Mode technology Replaceable cooling fan with impact resistant design for off-road applications On-board teperature indicator Pit tune mode Self test diagnostics and factory reset DGF2 digital glitch filtering V2 Sensor plug for precise communication with all motors HDAC high density copper PCBs INCLUDES Tekin Redline T8 Gen 2 1700kV Sensored Brushless Motor with the RX8 GEN2 ESC, Sensor Wire and Cooling Fan SPECIFICATIONS Motor; Motor Length: 3.03" (77mm) Motor Diameter: 1.57" (40mm) Shaft Dimensions: 19x5mm Weight: 13oz (368g) Voltage: 4S-5S kV: 1700 Rotor: 18.5mm ESC; Controls: Forward/Brake/Reverse Input Voltage: 2S-6S Lipo Continuous Current: 220 amps BEC: 6.0v / 7.4v 7amps Motor Limit Brushless Mode: No limit Motor Limit Brushed Fwd Only Mode: No limit Motor Limit Brushed Fwd/Rev Mode: No limit Max Current: 220amps per phase Timing Profiles: 7 choices (on board) Brushed Modes: Fwd Only, Fwd/Rev, Rev Delay Dimensions: 1.5 x 2.2 x 1.4" (38 x 55.8 x 25.5mm) Weight: 2.7oz (76.5g)

3.995,-

4.295,-

KJØP

-7%

Tekin T-440 Digital Hi-Torque Programmable Servo (High ...

Art.nr: TT1507

Copied

Tekin T-440 Digital Hi-Torque Programmable Servo (High Voltage) Hit the trails hard with the Tekin T-440 Crawler Servo. Rocks, Mud, Dirt or Snow. The Element Proof Design means you can tackle any terrain. Full Metal Gear set, All Aluminum Housing, Digital Position Encoding and loads of Torque, this servo keeps you out of a bind. Fine-tune your setup with an extensive set of adjustments via Tekin’s HotWire PC Interface.   The Difference is in the Design Tekin servos are crafted from the highest quality materials available. CNC Precision Cut gears provide an extremely smooth and efficient drive train. 6061-T6 machined aluminum 3-piece o-ring housings provide strength and protection from the elements while the finish quality and design are second to none. Sleek chamfered edges and bold lines combined with a matte anodized finish are sure to accent any build. Included with the T-440 Servo is a machined aluminum 20mm Crowbar 25T dual clamping servo arm. Advanced Technology: Digital Magnetic Position Encoder (DPE): Our servos use Digital Magnetic Position Encoding (DPE) rather than a standard potentiometer, which gives Tekin servos industry leading accuracy, linearity and consistency. Accuracy: Precise linear movement through the entire motion range with less than .2 degrees of deviation from start point to end point make Tekin the superior performance product.  Low deviation DPE technology translates to pinpoint accuracy not found in other potentiometer servos, which tend to wander and center poorly and get worse as they age. Tekin is built to last at peak performance. Linearity: Potentiometer servos can be up to seven degrees non-linear from end point to end point, creating a disconnected feel from your transmitter. Tekin servos eliminate this disconnect, giving you a linear feel and more precise control over your servo movement and position. Consistency: Performance is important but we are all about consistent performance. Potentiometer performance drifts due to many variables; heat, age, component quality, etc. DPE is a rock-solid, repeatable and consistent technology bringing an unmatched consistency to Tekin servos. Tired of constantly trimming your servo and having response feel different during times of longer usage? Tekin servos are the answer. Efficiency: Accuracy drives efficiency. A servo that has to work less to center or stop without overshooting position is using less energy. This means less heat build-up, less component fatigue and longer life. Adaptability: Tekin Servos come with a series of unique features; DPE technology lets you set the center point anywhere, and servo travel limits can be set without reducing the End Point Adjustments (EPA’s) on your transmitter.  Most servos are limited to 90° travel in each direction with a physical stop point; DPE means that Tekin servos can be programmed to travel beyond 360°-- up to 5 full rotations in each direction! Element Proof: Dependable, no matter the terrain. Element Proof Tekin products are designed to handle water, mud & snow within reasonable restrictions. While we are not afraid to take on the elements, submerging is not recommended. Features: Digital Magnetic Position Encoder (DPE) Specifically Designed for 1/8 and 1/10 Scale Applications Included Aluminum Vector Servo Arm ​Full Aluminum Servo Housing ​Element Proof Design* ​Precision Cut Full Metal Gears ​ABEC5 Ball Bearings ​High Voltage Capable ​High Torque Coreless Motor ​25T Output Spline ​Programmable via HotWire PC Interface ​Overload Protection Technology ​Thermal Protection Circuitry ​Low Voltage Alarm** ​Quiet, Efficient, Cool Operation ​HDAC: High Density Copper PCB's *Tekin Element Proof products are designed to withstand water, snow and mud. Not intended for operation while submerged in liquid. **requires HotWire sold separately HotWire Programmable Features: Feel - Mild to Aggressive ​Speed Limit ​Torque (0-100%) ​Torque Delay ​Direction - Normal / Reverse ​Center Point ​Travel ​Soft Starting Speed & Torque ​Max Temp Alarm ​Low Voltage Alarm ​Over Voltage Alarm ​Bind Relief ​Fail Safe Speed and Position ​Set Custom Servo Name Specifications: Size Category: Standard Type: Digital Application: Rock Crawling and Rock Racing Torque: 502 oz-in (36.2kg-cm) @ 8.4V; 460 oz-in (33.1kg-cm) @ 7.4V; 421 oz-in (30.3kg-cm) @ 6.0V Speed: 0.11sec/60 deg @ 8.4V; 0.13sec/60 deg @ 7.4V; 0.15sec/60 deg @ 6.0V Length: 1.57 in (40mm) Width: 0.79 in (20mm) Height: 1.57 in (40mm) Weight: 2.57 oz (73g) Bushing Or Bearing: Bearing Motor Type: Coreless Gear Type: Metal Voltage: 4.8V to 8.4V

2.195,-

2.495,-

KJØP

-12%
