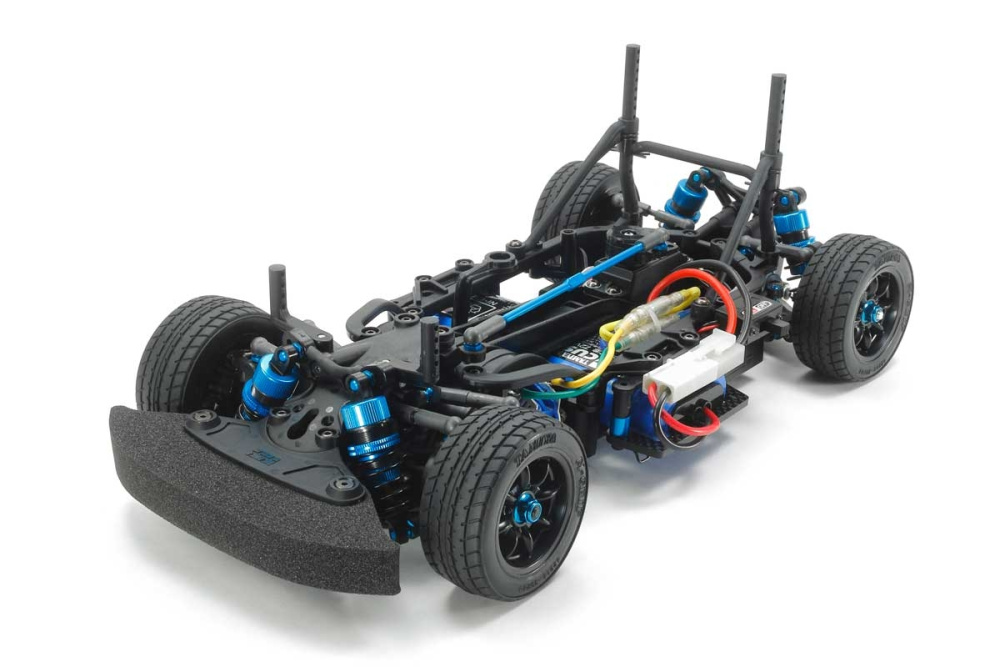

Tamiya 47520 M-07R Chassis Kit

Art.nr: 47520
3.895,- 4.295,- -9%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Tamiya
På lager: 4

Dette FWD-chassisettet tar det revolusjonerende M-07-konseptet og fyller esken med en rekke tilleggsdeler, valgt av Tamiya Racing Factory (TRF)-teamet for et racingoppsett. Dette er rett og slett mye for pengene, for de som ønsker å komme rett inn i racing, eller oppnå en race spec’et bil uten å måtte velge masse Hop-Up-alternativer og reservedeler selv.
M-07 er et fantastisk chassis, og gir deg enorm kjøreglede.
M-07 chassiset kan valgfritt monteres  med 225mm (M) eller 239mm (L) hjulbase.

Må kompletteres med:

  • Radio og mottaker
  • Servo (low profile)
  • Fartskontroller
  • Motor (540 størrelse)
  • NiMH eller LiPO batteri
  • Egnet batterilader
  • Karosseri (M-chassis)
  • PS lakk

Mere info på engelsk:

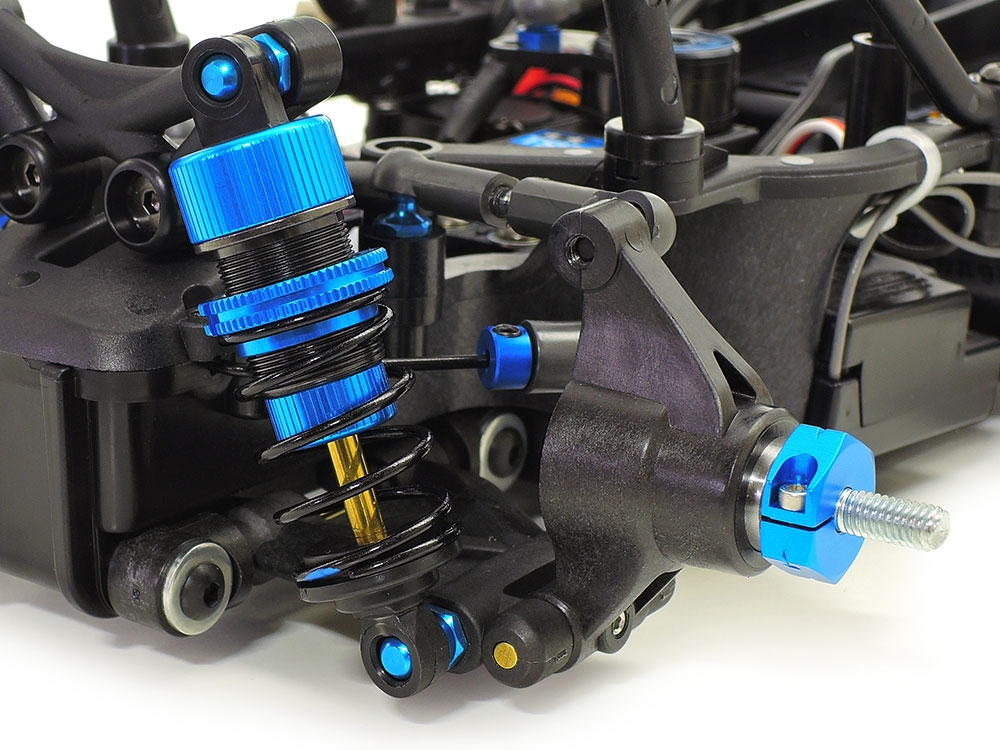

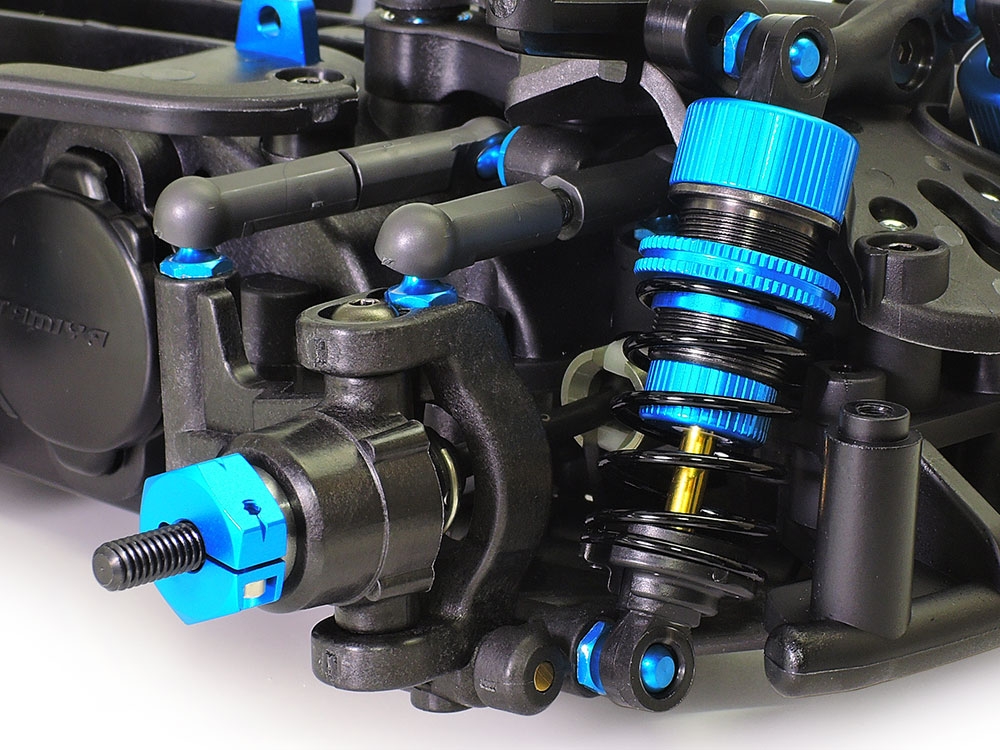

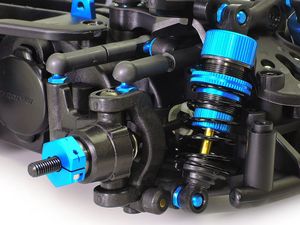

    ★Left: Long arms and steering linkage components optimize damper leverage ratio. The chassis’ camber can also be adjusted.★Right: Adjust the M-07 Concept’s rear toe angle via the insertion of spacers where the suspension mount parts are attached.



    ★Left: One of the key points is the easy-access differential unit, which can be removed and changed from the underside.★Right: Enjoy silky-smooth power from your chassis thanks to full ball bearings, universal drive shafts and gear differential unit.



Specifications
●Length: 332mm (including bumper) ●Width: 164mm ●Wheelbase: 225mm or 239mm (Selectable) ●Monocoque Frame ●Front-Midship Motor, Front-Wheel Drive ●Gear Differential ●3-Piece Steering Tie-Rod ●4-Wheel Independent Double Wishbone Suspension ●CVA Oil Dampers ●Gear Ratio = 5.78:1 using included 20T pinion gear (7.22:1 – 4.81:1 available with separately sold pinion gears) ●Requires an Electronic Speed Controller (sold separately)

This R/C FWD chassis kit takes the revolutionary M-07 Concept and pairs it with a range of option parts, selected by the Tamiya Racing Factory (TRF) team for a racing setup. This is a great value-for-money option for those who want to get straight into racing, or achieve a race-spec car without having to select Hop-Up Option and Spare parts themselves.

Featured Components
• M-07 Concept High-Traction Lower Deck (54812)
• TRF Special Damper (Hard Black Coating) (42102)
• M-07 Concept Reinforced C Parts (Uprights) 2pcs. (54810)
• M-07 Concept Reinforced D Parts (Suspension Arms) 2pcs. (54811)
• 33mm Double Cardan Joint Shaft (2pcs.) (42312)
• Clamp Type Aluminum Wheel Hub (5mm Thick) (53823)
• Rear Stabilizer
• Aluminum Cup Joint for TA06 Gear Differential Unit (2pcs.) (54532)
• Hard Fluorine Coated 0.6 Aluminum Pinion Gear (20T) (53509)
• φ2.6mm Titanium Coated Suspension Shaft Set for Reversible Suspension (53917)
• 46mm Titanium Coated Suspension Shafts 2pcs. (53851)
• 3x106mm Aluminum Turnbuckle Shaft (54756)

• 1/10 scale R/C chassis assembly kit. Length: 332mm.

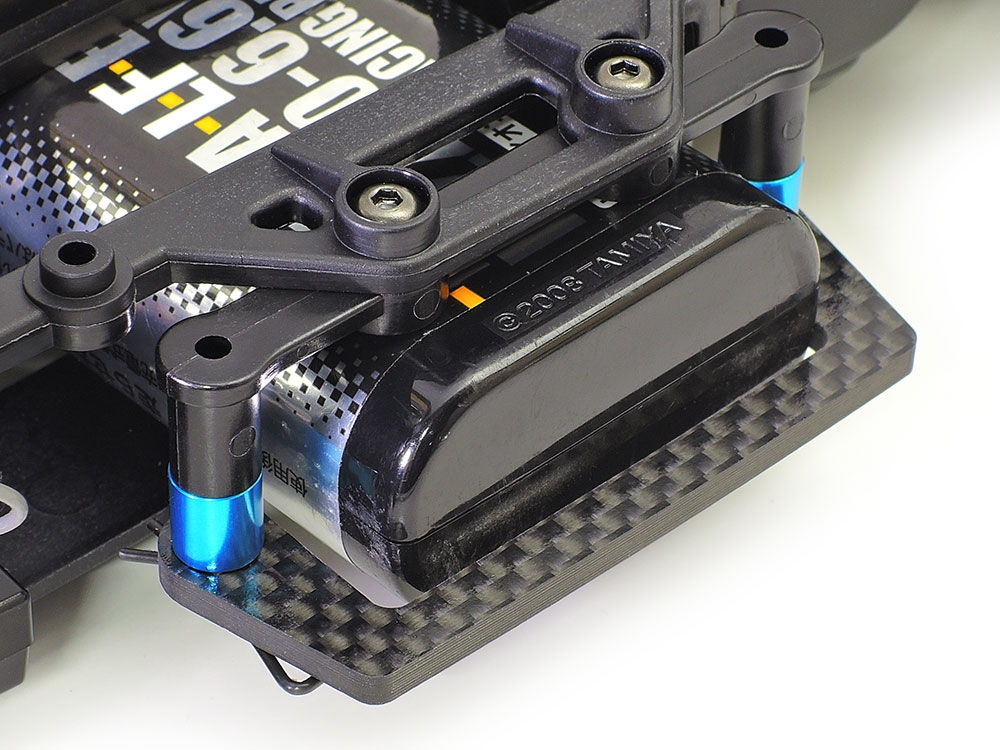

• Includes dedicated carbon fiber battery holders unique to this kit.
• The chassis has superb rigidity thanks to reinforced upright and suspension components, as well as a high- traction lower deck.
• A highly efficient drivetrain employs 33mm double cardan joint shafts and aluminum joint cups, plus a durable fluorine coated aluminum 20T pinion gear.
• Highly agile suspension utilizes TRF Special Dampers, rear stabilizer and titanium coated suspension shafts.
• Also included are aluminum hex hubs and 3x106mm turnbuckle shaft.
• Requires: 2-Channel Radio, servo, motor, ESC, 7.2-7.4volt battery pack & compatible charger, m-chassis body set, and Tamiya PS paint.

Tamiya

Tamiya

Mr. Yoshio Tamiya founded a saw mill/lumber factory in Shizuoka-City. Tamiya ventured into the modeling business in 1948, with a scale wooden ship model kit. Since then, Tamiya has been striving to offer merchandise that can truly be called "First in Quality Around the World."


Now Tamiya is offering more than 3000 different products, both in the fields of precision static models and high performance radio control vehicles. These products are not only sold in Japan but also exported in vast quantities to the United States, Europe, South East Asia, and to many other parts of the world. The standard of excellence achieved by Tamiya is regarded as among the very finest in the world of model hobbies.
