Castle Creations Crawler 4-Pole Sensored BL Slate 1406-2850kV

Art.nr: 060-0070-00
1.395,- 1.495,- -7%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

På lager: 8

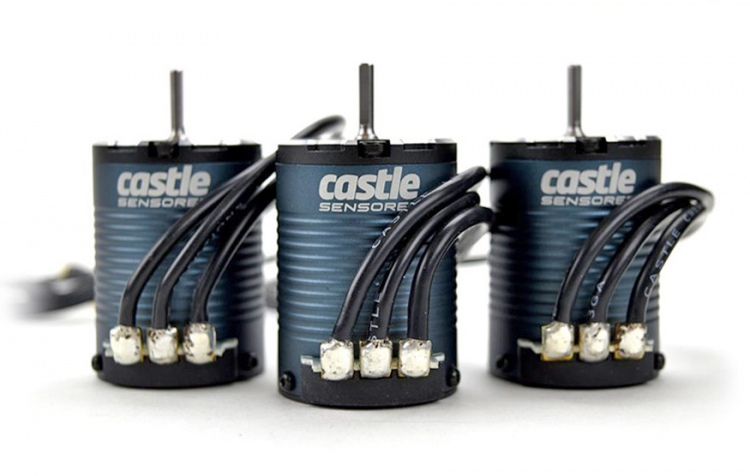

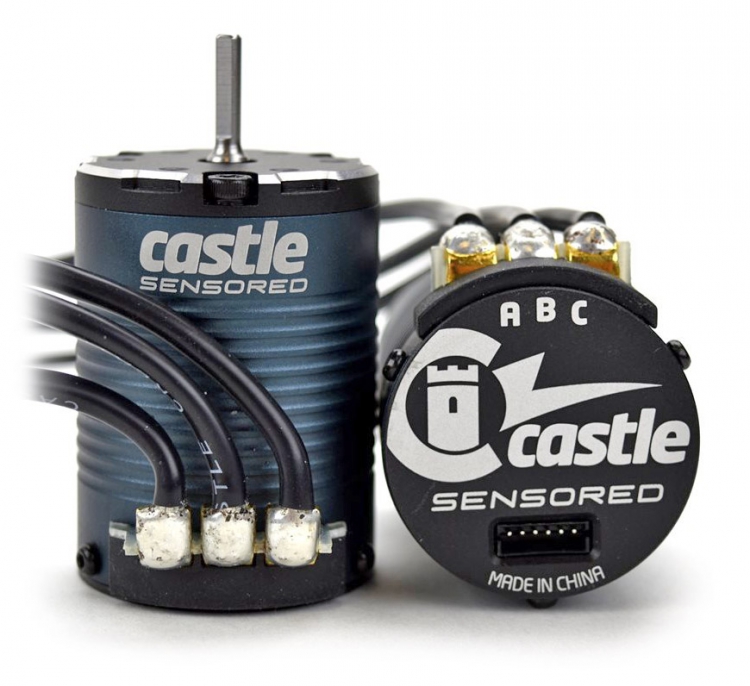

This is the Castle Creations 1406-2850Kv Brushless Sensored Motor.








FEATURES

Ideal for 1/10 scale rock crawlers, trail rigs, touring cars, stadium
 trucks and buggies powered by 2-4S LiPo batteries with appropriate
 gearing
 ROAR standard sensor port and labeled connections
 SMARTSENSE uses sensors to provide smooth starts, excellent torque
 and low speed driveability
 CNC machined 6061-T6 aluminum can, slate gray in color
 High performance 0.2mm steel lamination stacked stator
 High strength 180°C grade neodymium sintered magnets with Kevlar wrap
 Oversize NMB grade ball bearings
 Rebuildable






INCLUDES

1406-2850Kv Brushless Sensored Motor with Sensor Wire
 Three 4mm Female Castle Bullet Connectors






REQUIREMENTS

ESC such as the Castle Creations Mamba Max Pro, Mamba X and Mamba
 Micro X






SPECIFICATIONS

 Input Voltage Range: 2-4S LiPo
 Kv Rating: 2850
 Max RPM: 100.000
 Can Length: 1.9" (49.5mm)
 Can Diameter: 1.4" (36mm)
 Weight: 6.9oz (197g) with wires
 Shaft Diameter: 1/8" (3.17mm)
 Shaft Length: 0.59" (15mm)
 Mounting Hole Specifications: M3 @ 25mm
 Wire Lead: Castle 13 AWG silicone insulated wire
 Connectors: 4mm male Castle Bullet Connectors

Castle Creations

Castle Creations


Castle Creations makes the best electronic speed controllers in the industry, possibly the world!  Our engineers have spent countless hours integrating features and firmware that no other manufacturers can match.

Speed Controllers enabled with SmartSense use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with electronic timing. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at each. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This combines the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless running. Your motor will produce more power and less heat.
