Futaba R203GF Receiver 3CH S-FHSS

Art.nr: FPR203GF

599,-

649,-

- 8%
Futaba

Futaba
På lager: 1

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Informasjon

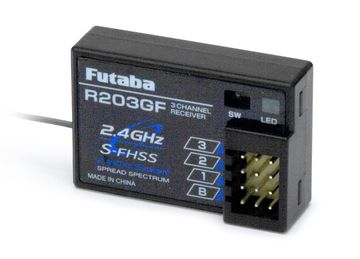

This is the Futaba R203GF 2.4GHz S-FHSS 3-Channel High Voltage Surface Receiver.

FEATURES

S-FHSS/FHSS auto detection

Normal and High-Speed Modes:Normal mode frame rate is (FHSS/S-FHSS) 13.63ms and accepts any type of servos or peripherals.

High-Speed mode (in 4PL tx only), with an output of 6.8ms accepts digital servos including the BLS series and most peripheral equipment such as brushless ESCs

INCLUDES

Futaba R203GF 2.4GHz S-FHSS 3-ch Receiver with Instructions

REQUIREMENTS

Installing in model and linking to transmitter

SPECIFICATIONS

Dimensions: 1.54 x 1.02 x 0.39" (39 x 26 x 10mm)

Weight: 0.28oz (8g)

Operating Voltage: 4.8 - 7.4V (shared with servo)

Battery Fail Safe Voltage: 3.8V*

Current Drain: 30mA at no signal

*Battery fail safe voltage is set for 4-cell NiCd/NiMH battery.Battery F/S does not work properly when other type of battery is used

Antenna Length: 7-1/2"

COMMENTS

Not compatible with Futaba FASST systems.
