Ultra Power 2X200W AC/DC Charger

Art.nr: 70-1-2002
3.790,-

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Modelsport AS
På lager: 1

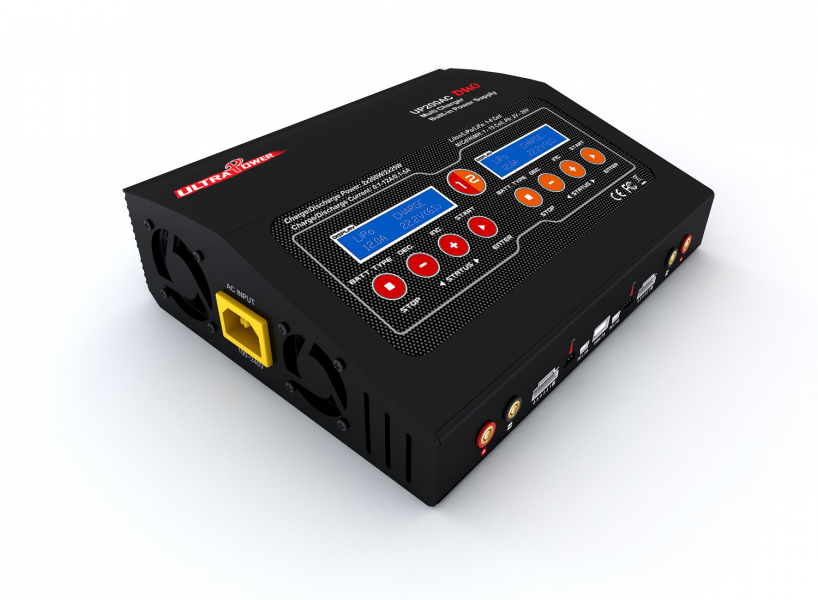

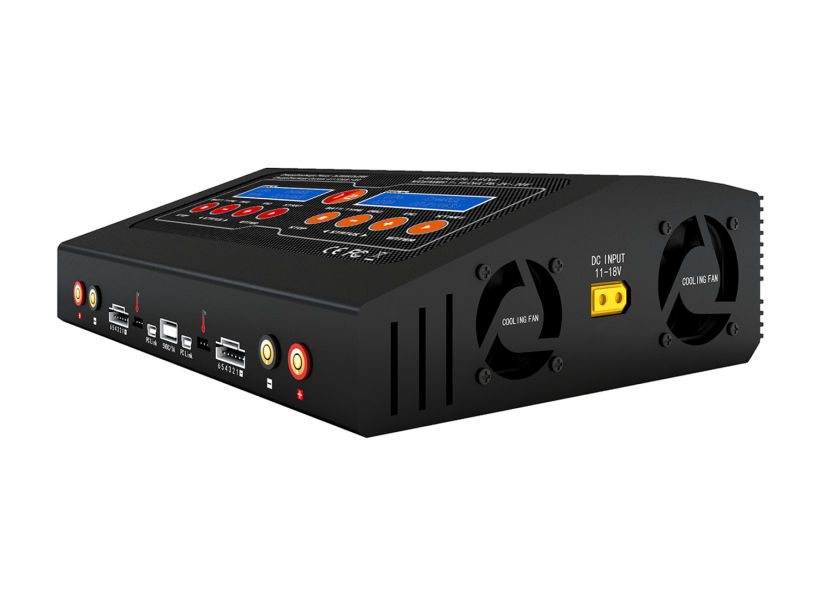

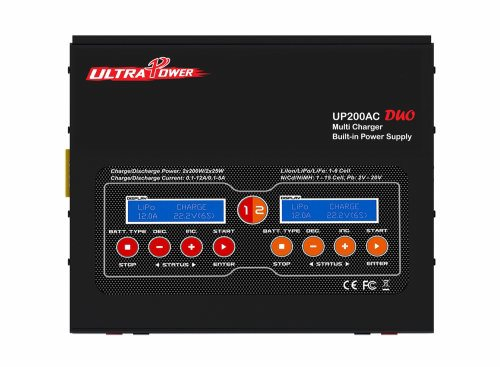

The UP200AC DUO Charger is the twins charger with 200watt power outputs and built-in power supply, total output is 400 Watts. Each channel is capable of charging all types batteries at up to 12.0 A and discharge at 0.1-5.0A, it include 4sets fan cooling system and an internal sensor for controlling fan speed, internal cell balancers, high contrast LCD displays and important warning and safety function



Input voltage: AC 100-240V
                         DC 11.0-18.0V
 Charge power: 2x200W (400W)
 Discharge power: 2x25W (50W)
 Charge current range: 0.1-12.0A
 Discharge current range : 0.1-5.0A
 LiIo/LiPo/LiFe cell count: 1-6 series
 NiCd/NiMH battery cell count: 1 - 15cells
 Pb battery voltage : 2V-20V  (1-10cells)
 Current drain for balancing LiPo: 300mah/cell
 Battery data memory: up to 10 data
 Dimension:244*199*76mm


*Charges 1-6 cell LiPo, LiFe and Li-ION, 1-15 cell NiCd and NiMH and 2-20V lead acid batteries

*Fast Charge, Balance Charge and Storage Charge modes for lithium batteries

*Automatically controls current rate during charging and discharging process

*Two independent 200 watt power outputs charges two batteries simultaneously

*Two independent balancing ports for lithium batteries

*Five user customizable pre-set per output

*Four fan cooling system with internal sensor for controlling fan speed

*Batteries can be set to automatically Charge/Discharge or Discharge/Charge up to a maximum of 10 cycles

*Automatic charge termination if battery temperature gets too high

*Temperature probe is required and must be purchased separately

*PC-based program can analyze the characteristics of each battery via a USB port, graph of voltage, current and capacity curves with individual voltage of each cell in a lithium pack can be displayed on a PC- *PC-LINK USB adaptor is required and must be purchased separately




Battery Type Number of Cells Voltage Level Max. Charge Voltage Max. Fast Charge Rate Min. Discharge Voltage
NiCd 1 - 15 1.2V / Cell 1.5V / Cell 1 - 2C* 0.85V / Cell
NiMh 1 - 15 1.2V / Cell 1.5V / Cell 1 - 2C* 1.0V / Cell
Li-Ion 1 – 6 3.6 / Cell 4.1V / Cell 1C 2.5V / Cell
LiPo 1 – 6 3.7V / Cell 4.2V / Cell 1C 3.0V / Cell
LiFe 1 – 6 3.3V / Cell 3.6V / Cell 4C 2.0V / Cell
Pb (Lead Acid) 1 - 10 2.0V / Cell 2.46V / Cell 0.4C 1.75V / Cell
