Tamiya 58673 1/10 R/C Comical Frog WR-02CB

Art.nr: 58673
1.990,-

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager kan du legge igjen epostadressen din i skjemaet under.

På lager: 1

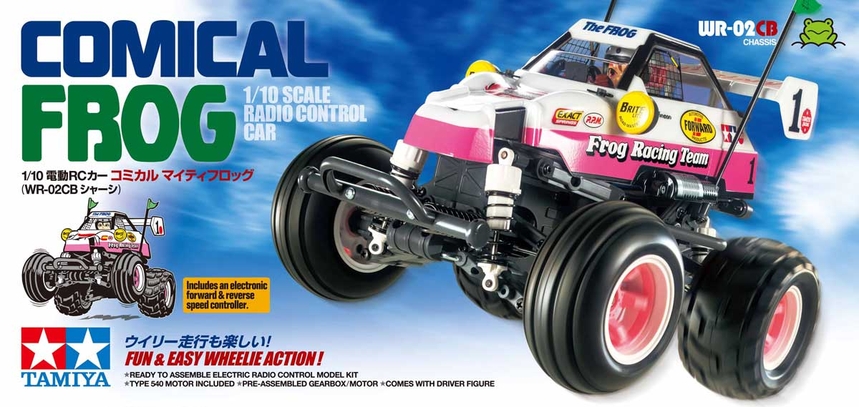

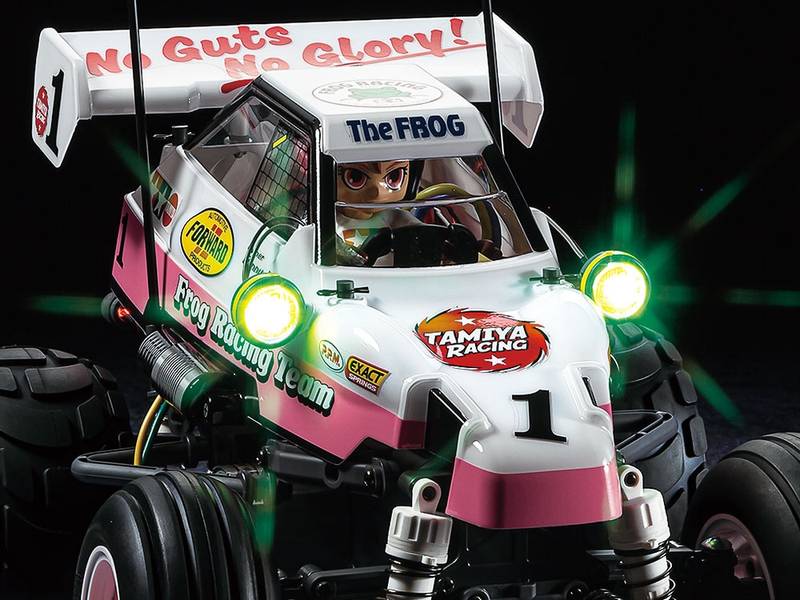

The original FROG needs little introduction. It was a Tamiya legend which inspired legions of fans since the 1980s. For many, it was their very first introduction into the world of radio control assembly kits. The original FROG is still among Tamiya’s best-selling kits to this day. Now the legend is re-imagined as the Comical FROG, with a new body inspired by the famous original. The re-imagined body sits on a new and dedicated variant of the proven off-road chassis: the WR-02CB.

WR-02CB Chassis - Great Fun Awaits!
The WR-02CB chassis is an exciting chassis at home on- and off-road, providing smooth driving and the potential for exciting wheelies! It features a pre-assembled gearbox with motor already attached to save time in the assembly process. Long suspension arms and CVA oil dampers make for excellent off-road performance, while under guard and side guards give great protection. A rear wheelie bar helps support the model when it leans back, maintaining a fun wheels-in-the air stance as the model plunges forward. Green and white 2-piece wheels are joined by bubble tires (front: ribbed, rear: round block) for a fun look and drive.

  • 1/10 scale R/C model assembly kit.
  • Length: 356mm, Width: 244mm, Height: 195mm, Wheelbase: 170mm
  • Tire Width/Diameter 46/95mm (Front), 56/98mm (Rear)
  • Tread 189mm (Front), 186mm (Rear)
  • Monocoque Frame Chassis
  • 3-Bevel Differential Gear
  • 2-Piece Steering Linkage
  • 4-Wheel Double Wishbone Suspension
  • Front and Rear CVA Oil Dampers
  • Gear Ratio = 18.3:1
  • Type 540 Motor included
FEATURES

Chassis: WR-02CB plastic monocoque with wheelie bar
Drive: Rear wheel
Differential: Gear type
Motor: 540 brushed
Electronic Speed Control: Tamiya TBLE-02S operates sensored
brushless motors and brushed motors (21.5 turn brushless motor
limit, 23 turn brushed motor limit), Tamiya battery plug
Body: Clear molded polycarbonate
Shocks: Oil-filled mini CVA with plastic bodies
Suspension: 4-wheel double wishbone, suspension arms feature
multiple shock attachment holes
Steering: Two-piece tie rod
Wheels: Two-piece ABS plastic, orange in color
Tires: Rib pattern front, block pattern rear
Front Bumper: Spring loaded plastic





INCLUDES

Tamiya 1/10 scale Electric Powered Comical Frog with 540 size
brushed Motor, ESC, Tires, 2-pc Wheels, Body, 18 tooth Pinion
Gear, Driver Figure and Instruction Manual





REQUIREMENTS

Radio: 2-channel with steering servo
Battery: 7.2V NiMH stick pack with Standard plug
Battery Charger: For selected battery pack
Polycarbonate safe spray or brush-on paint
Track and maintenance equipment





SPECIFICATIONS

Length: 14" (356mm)
Width: 9.6" (244mm)
Height: 7.7" (195mm)
Wheelbase: 6.7" (170mm)
Internal Gear Ratio: 18.3:1
Tread: Front 7.4" (189mm), Rear 7.3" (186mm), distance between center
of tires measured side-to-side
Tire Width: Front 1.8" (46mm), Rear 2.2" (56mm)
Tire Diameter: Front 3.7" (95mm), Rear 3.8" (98mm)
