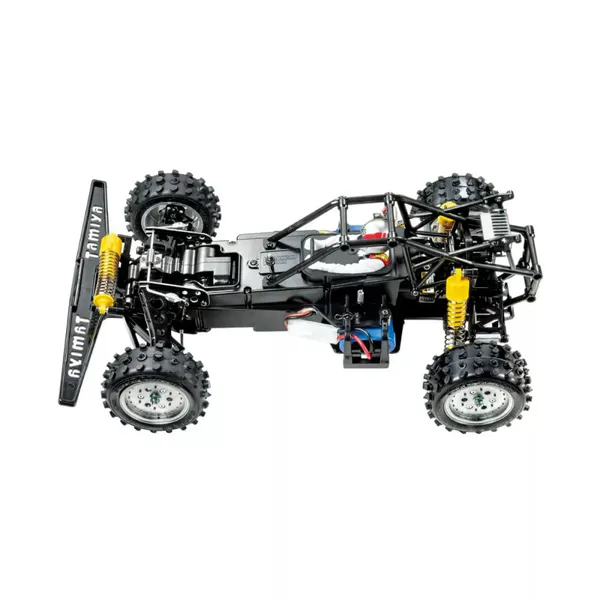

This is the 1/10 scale electric powered, radio controlled, re-release
of the 1985 Tamiya Hotshot Off-Road Buggy Kit.
FEATURES: Chassis: Monocoque ABS Resin
Drive: Four wheel shaft drive with dogbone type linkage
Motor: Type 540 with aluminum heat sink and connectors
Electronic Speed Control: Tamiya TEU-104BK w/reverse
Shocks: Front and rear mono type horizontally mounted
Gearboxes: Sealed
Differentials: Planetary gear
Transmission: Single-speed
Tires: Spike, Front 3" (77mm) diameter, 1.1" (28.5mm) wide
Rear 3" (77mm) diameter, 1.4" (37mm) wide
Wheels: Nylon resin, White in color
Front 1" (25.4mm) wide, 2" (51mm) diameter
Rear 1.3" (33mm) wide, 2" (51mm) diameter
Bumpers: Front plastic
Suspension: Four wheel double wishbone
Camber Tie Rods: Non-adjustable
Steering Tie Rods: Adjustable
Steering: Bell crank type with servo saver
INCLUDES: Tamiya Hotshot buggy with two shocks, 540 motor, heat sink
, body, tires, wheels, 13 and 15 tooth
tooth pinion gears, spur gear, instructions and decal sheet
_
REQUIRES: Radio: 2-Channel with 1 Servo for Steering and ESC
Radio Batteries: (8) AA size
Battery: 6-cell w/standard connector
Charger: AC/DC Timed or Peak for 6-cell battery
Paint: Polycarbonate safe spray or brush-on
Misc. Items: Building and track equipment
SPECS: VEHICLE-
Length: 15.3" (390mm)
Width: 9.2" (235mm)
Height: 5.9" (150mm)
Weight: 2.8lbs (1270g) approximately
Gear Ratio: 10.43:1 with 13T pinion gear
8.704:1 with 15T pinion gear
BODY-
Length: 8.7" (220mm)
Width: 3.7" (95mm) at rear wheels (widest point)
3.1" (80mm) at front wheels (thinnest point)
Height: 2.3" (59mm)
