Art.nr:
FS001P
Copied
6.995,-
7.995,-
-13%
Informasjon
Mottaker til FlySky Noble FS-NB4 PL18. Egner seg godt til radiostyrt bil og båt.
Informasjon på engelsk:

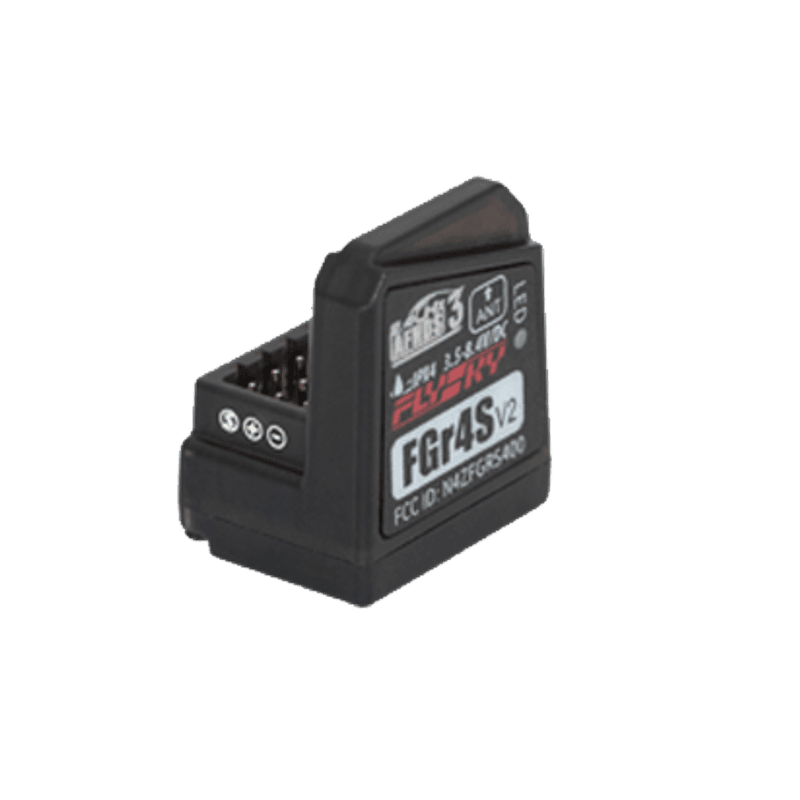

2.4GHz 4 channel receiver is compatible with FlySky Noble FS-NB4 PL18 Transmitter, good for Rc Car and Rc Boat.
FGr4S adopts AFHDS 3, Flysky’s third-generation automatic frequency hopping digital system. Easy to bind and very fast link-up, quick and extremely stable in performance.
It uses an internal single antenna with two-way transmission capabilities and is designed to be compact and easy to install.
The receiver supports PPM/i-bus/PWM data output, suitable for AFHDS3 system remote controller.
Fra produsenten:
Product Model: FGr4S
PWM channel: 4
Wireless frequency: 2.4GHz
Wireless protocol: AFHDS 3
Range:> 200m (ground)
Antenna type: Built-in single antenna
Power: 3.5-8.4V
RSSI: Supported
Data port: PWM / PPM / i.bus / s.bus
Temperature range: -10 ℃ — + 60 ℃
Humidity range: 20% -95%
Online Update: Yes

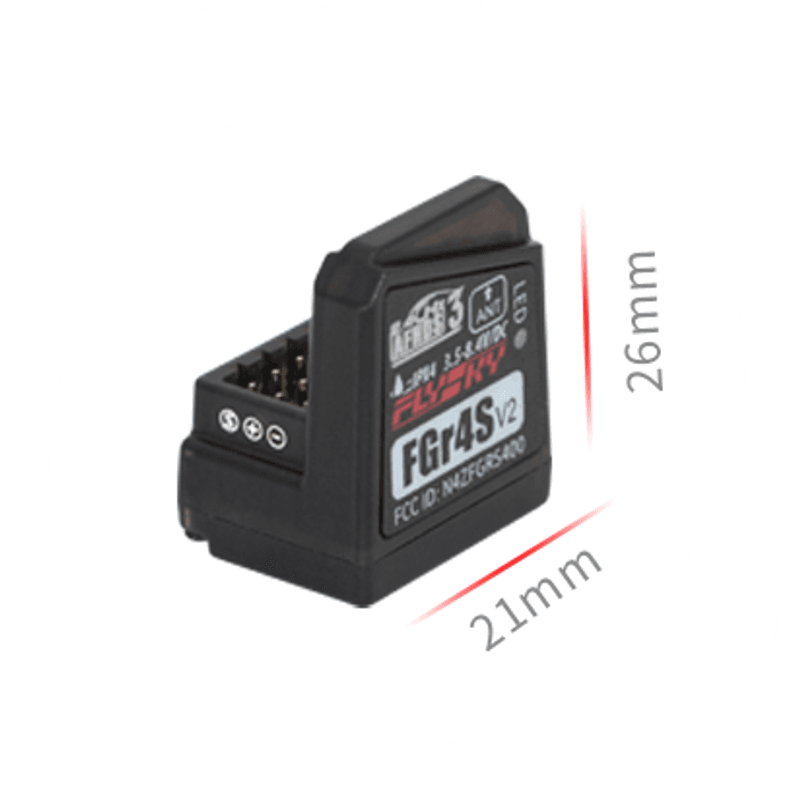

Dimensions: 25.5 * 22 * 17.3 mm
Weight: 5.1g
Certification: CE, MIC, RCM, FCC ID: N4ZFGRS400
Package List:
1 * FGr4S Receiver
1 * Binding Cable
Binding:
To ensure good signal strength, make sure the receiver antenna is as far away from any metal parts when installing the receiver.
1. Insert the binding cable into the receiver’s BIND port.
2. Plug the power cable into any other port, and the receiver’s LED will start to flash quickly indicating that it has entered bind mode.
3. Put the transmitter into bind mode; (See the transmitter’s instruction manual for more information.)
4. Binding is successful when the receiver’s LED starts to flash slowly. Remove the power and bind cables from the receiver *if the transmitter is bidirectional the reciever status indicator will not fash slowly.
5. Reconnect the power cable to the receiver.
6. Check to make sure that the transmitter and receiver are working as expected, if there are any issues or unexpected operation follow the steps above to bind again.
