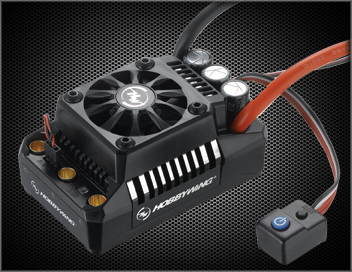

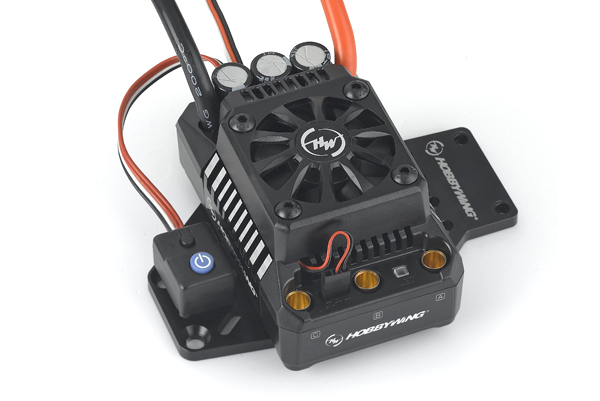

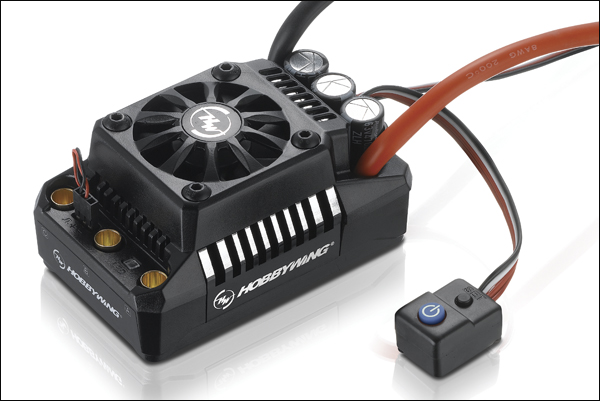

Ezrun Max 5 Hobbywing ESC

Art.nr: 30104000
2.359,- 2.659,- -11%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Hobbywing
På lager: 2

Hobbywing EzRun Max5 er vannbestandig og leveres med ferdig påloddet motorkontakter (6,5mm female gullkontakt) og uten batterikontakt. Regulatoren er kompatibel med 3-8s LiPo beregnet for bruk på 1/5 biler som Traxxas X-Maxx, HPI Baja, Desert Buggy XL og Losi 5IVE. På 8S er det anbefalt med motorer under 1000KV.


Høy kvalitet

MAX5 består kun av høy-kvalitetskomponenter og er designet for bruk til hard-core bashing biler.


Fleksibel og allsidig

Her har brukeren muligheten til å justere ESCens parametere for å tilpasse til egen kjørestil.

  • Ekstrem akselerasjonsmuligheter
  • Stabil Output
  • Asfalt og terreng




All slags vær!

Regulatoren er vanntett og støvtett og passer til bruk i all slags vær.


High Voltage BEC

BECen er innebygd og har en output current på 25Amp og justerbar output voltage på 6-7.4V.


Elektronisk bryter

Med regulatoren følger det med en elektronisk bryter som skal holde til å kunne slå av og på bilen over 50.000 ganger! Bryteren er plassert i et vann og støvtett cover.


Oppdateringer

Alle oppdateringene som gjøres på MAX5 kan gjøres via USB-Link, LCD Program Boxen og en PC. Alle oppdateringene er gratis.


Vedlikehold

Med unntak av kjøleviften så er ESCen så og si vedlikeholdsfri, vi anbefaler uansett å fjerne støv, steiner og vann fra bil for å unngå slitasje på drivverk.


Anti-Spark

MAX5 har innebygget anti-spark koblinger som hindrer gnist ved tilkobling av batterier med høy spenning.


Size Matters!

MAX5 er som tidligere nevnt designet for bruk i 1/5 skala biler. Noen eksempler på biler som vil passe MAX5 er:

  • HPI Baja Buggy
  • Losi 5IVE-T Elektrisk konvertering
  • Desert Buggy XL
  • Traxxas X-Maxx



  • Spesifikajoner
  • Innspenning: 3-8S LiPo
  • Dimensjoner: 93.4 x 58.1 x 47.8mm
  • Vifte: 45 x 45 x 10mm (5-7.4V)
  • BEC: Ja
  • Programmering: Støtter LED og LCD Program Box, SET Button programmering, WiFI-Module, OTA-Programmer og Programeringsport
  • OBS!
    Dette er en ekstremt kraftig ESC det er derfor viktig å fjern pinion gir ved nyinstallering og gjør kalibrering og programmering før montering av pinion igjen. Det anbefales også alltid å ha hjulene i luften under oppstart.

High Reliability & Durability

Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX5/MAX6 is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the MAX5/MAX6 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

MAX5 Applications:

The EZRUN MAX 5 provides the ultimate power upgrade solution for many popular 1/5th scale vehicles like HPI Baja buggy, Losi 5IVE-T Nitro-to-Electric truck, and Desert Buggy XL Nitro-to-Electric buggy.

It’s also suitable for various other brand of 1/5th scale on-road cars, truggies, SCTs and buggies.

Specifications:



Model

EZRUN-MAX6

EZRUN-MAX5

Cont./Peak Current

160A/1050A

200A/1300A

Motor Type

Sensored / Sensorless Brushless Motor (only in sensorless mode)

Applications

1/6th Touring Car, Buggy, Truggy and Truck

1/5th Touring Car, Buggy, Truggy and Truck

Motor Limit

With 6S LiPo/18S NiMH: KV ≤1500 (5892 size motor)
With 8S LiPo/24S NiMH: KV ≤1200 (5892 size motor)

With 8S LiPo/24S NiMH: KV ≤ 1000 (58110 size motor)

LiPo/NiMH Cells

9-24S NiMH, 3-8S LiPo

BEC Output

6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)

Cooling Fan

Powered by the stable BEC voltage of 6V/7.2V

Connectors

Input End: No, Output End: Female 6.5mm Gold Connectors (pr e-soldered onto the PCB of the speed contr oller).

Size/Weight

70(L)x56(W)x46.5(H)/240g

93.35 (L)x 58.12 (W)x 47.81 (H)/342g

Programming Port

FAN /PRG Port



High Reliability & Durability

Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX5 is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.



Great Flexibility & Versatility

With incredible acceleration capabilities and a rock-solid, stable output, the MAX5 can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.



Applicable to All Weather Conditions

The waterproof and dust-proof design allows the MAX5 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.



High Voltage Built-in BEC

The MAX5 has adopted the world’s first HV built-in BEC with an output current of up to 25Amp and a switchable output voltage of 6V-7.4V. The high voltage BEC is designed to handle today’s high voltage servos on demand used by large scale vehicles.



Advanced and Secure Electronic Switch

The MAX5 features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.



Regular Firmware Updates Free of Charge

You can upgrade the MAX5 with the Hobbywing USB LINK software, a multifunction LCD program box and a laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.



Maintenance Free

The ESC minus the cooling fan is basically maintenance free. The cooling fan is designed to be shockproof, which in turn will reduce damage brought on by frequent vehicle high jumps and landings on hard surfaces.



Built-in Anti-Spark System

The MAX5 is built with internal anti-spark circuitry that protects not only battery connectors from damage but helps to prevent physical injury due to burnt fingers from the inevitable issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).



Wide Range of Applications

MAX5 Applications:
The EZRUN MAX 5 provides the ultimate power upgrade solution for many popular 1/5th scale vehicles like HPI Baja buggy, Losi 5IVE-T Nitro-to-Electric truck, and Desert Buggy XL Nitro-to-Electric buggy. It’s also suitable for various other brand of 1/5th scale on-road cars, truggies, SCTs and buggies



Specifications

  • Scale:1/5th
  • Brushed/Brushless: BL
  • Sensored/Sensorless: SL
  • Waterproof: WP
  • Cont./Peak Current: 200A/1300A
  • Input Voltage: 3-8S LiPo/9-24 Cells NiMH
  • BEC Output: Switch Mode:6V/7.4V,6A


Wires & Connectors

  • Input Wires: Red-8AWG-200mm*1/Black-8AWG-200mm*1
  • Output Wires: Black-10AWG-200mm*3
  • Input Connectors: No
  • Output Connectors: 6.5mm Famale Gold Connectors (pre-soldered onto the PCB)

(Note: All the wire length above is the original length not the length you see from the outside.)


Fan

  • Size: 45.0x45.0x10.0mm
  • Voltage Range: 5-7.4V
  • Powered by: Powered by BEC


ESC Programing via

  • SET Button on ESC: Supported
  • LED Program Box: Supported
  • LCD Program Box: Supported
  • WiFi Module: Supported
  • Program Port: FAN/Program Port


Firmware

  • Firmware Upgrade: Supported


Size & Weight

  • Size: 93.4x58.1x47.8mm
  • Weight: 342g


Applications

  • Motors: SL BL Motors/SD BL Motors(only in SL mode)
  • Vehicles: 1/5th Touring Car/Buggy/Truck
  • KV Rating/T Count: 8S LiPo: KV ≤ 1000 (58110 Size Motors)
