Castle Creations MAMBA X 5mm SCT, SENSORED, 25.2V WP ESC AND 141

Art.nr: 010-0155-13
3.995,- 4.195,- -5%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

På lager: 1

Castel Creations MAMBA X SCT, SENSORED, 25.2V WP ESC AND 1412-3200KV 5MM COMBO

Meet the next generation.

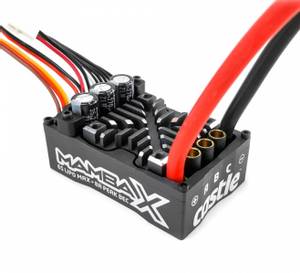

Castle Creations is proud to announce our new flagship surface product, the MAMBA X EXTREME 1:10 SCALE WATERPROOF ESC. We at Castle wanted to address three main concepts while designing a new ESC for the modern day RC enthusiast; VERSATILITYRELIABILITY, and PERFORMANCE. These are the pillars of the Mamba X design and the driving forces behind the feature-packed controller.

The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale*. The Mamba X with 1412-3200Kv with 5mm shaft sensored motor is perfect for 2WD and 4x4 short course trucks, monster trucks and rock racers running up to 3s LiPo and weighing up to 6.5 lbs; it can be run on a 4s LiPo with very conservative gearing and keep a close eye on temperatures. It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 4s LiPo.

FEATURES:

  • ESC voltage range 2S-6S
  • 1412-3200Kv 5mm shaft Sensored Motor
  • Waterproof
  • 8A Adjustable BEC (5.25V-8.0V)
  • Data-logging
  • Rugged CNC Aluminum Case
  • Castle Link Programming Support
  • Convenient Transmitter Programming
  • Auxiliary Wire Functionality for "on-the-fly" adjustments
  • SmartSense™Technology
  • Integrated Capacitors
  • Removable 30mm Cooling Fan
  • Integrated 4mm Bullet Connectors
  • 12 AWG Power Wires
  • Waterproof Switch
  • Audible Alerts and LED Alerts for easy diagnoses of common issues
  • ROAR Certified ESC
  • RECON G6 Certified ESC

MAMBA X ESC 1410-3200 5mm shaft COMBO COMES WITH:

  • Mamba X ESC with Sensor Harness
  • 1410-3200Kv 4-pole 12-slot sensored motor
  • Coupon for free Castle Link USB
  • Mamba Decals
  • Driver's Ed and Quick Start Guide
  • Gearing Chart for Castle Motors

*In 1/8th scale setups, the Mamba X is intended to be used for off-road racing in buggies weighing up to 9 lbs (including batteries and ready-to-run). In these 1/8th scale racing setups, the Mamba X should be run at 4S Lipo (16.8V) max and is recommended to be paired with the Castle 1512-1800Kv (P/N: 060-0062-00) or Castle 1515-2200Kv (P/N: 060-0063-00) motor, with appropriate gearing only.

ESC Technical Specs
Input Voltage Range: MIN: 2S LiPo
MAX: 6S LiPo (25.2V)
(4s maximum with included 1412 - 3200kv motor)
BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
Size: Length: 2.14" (54.4mm)
Width: 1.39" (35.2mm)
Height: 1.18" (30.0mm)
Weight (with wires): 3.56 oz. (101g)
Connectors: 4.0mm female bullets for motor connection.
Items Needed for Operation: Battery Connector required, Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs are recommended.
Product Use Statements:

*Although Mamba X is waterproof, it is not intended for operation while completely submerged in liquid. T Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

Max. Recommended Vehicle Weight: Up to 6.5lbs with included 1412 - 3200kv sensored motor.
Telemetry Link Capable: Yes
Tech Notes:
  1. Mamba X setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack's suitability for a brushless application. Recommended battery capacity for 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
  2. Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
  3. Applying voltages higher than 25.2V will cause irreparable damage to ESC.
  4. We recommend a high-current connector designed for high-powered electric systems, rated for 70+ amps. Invest in connector sets made for high-powered electric systems such as our Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs.
Motor Technical Specs
Input Voltage Range: 2-4S LiPo
Kv: 3200
Max. RPM: 75,000
Size: Length: 62.5mm
Diameter: 36mm
Weight (w/wires): 265.4g / 9.4oz
Shaft Size: Length: 21mm
Diameter: .197" (5mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional, coming soon!
Connectors: 4mm male Castle Bullet Connectors
Application Guidelines: Ideal for 2WD and 4x4 short course trucks, monster trucks and rock racers running up to 3s LiPo and weighing up to 6.5 lbs; it can be run on a 4s LiPo with very conservative gearing and keep a close eye on temperatures. It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 4s LiPo.
Recommended ESC(s): Combo includes Mamba X ESC.
Max. Recommended Vehicle Weight: See application guidelines
Tech Notes:

Running modes: SMARTSENSE™, Sensored only

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions.





Castle Creations

Castle Creations


Castle Creations makes the best electronic speed controllers in the industry, possibly the world!  Our engineers have spent countless hours integrating features and firmware that no other manufacturers can match.

Speed Controllers enabled with SmartSense use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with electronic timing. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at each. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This combines the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless running. Your motor will produce more power and less heat.
