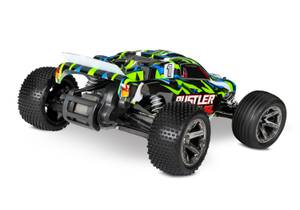

Traxxas Rustler® VXL Brushless 1/10 2WD Stadium Truck with Magnum 272R Transmission RTR - GREEN
Rustler® VXL combines outrageous Velineon® horsepower with the proven fun and durability that made Rustler the number-1 selling stadium truck. Rustler’s low, wide stance provides razor-sharp handling and phenomenal grip with Traxxas Stability Management® (TSM) keeping the power under your control. The Velineon Brushless Power System launches Rustler VXL to new heights with speeds of 112 kph and beyond! Go ahead, rip full throttle! Rustler VXL kicks up towering roosts of mud with fully-waterproof electronics to ensure that no adventure is out of reach, no matter how extreme.
FEATURES ON RUSTLER VXL (#37076-74):

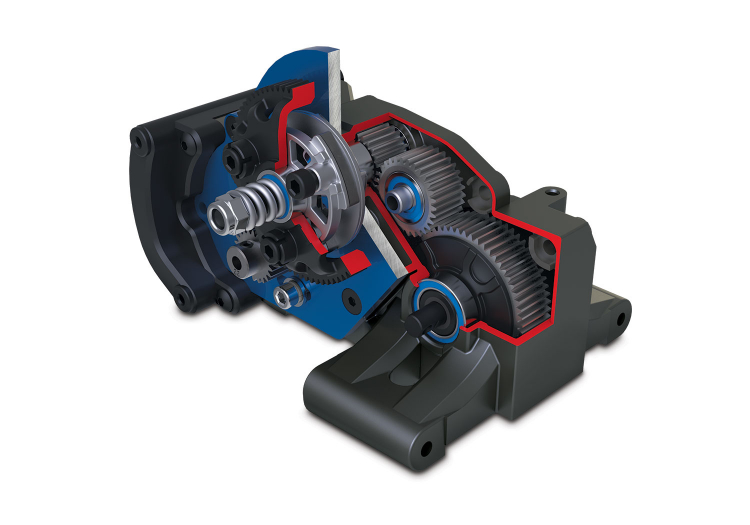

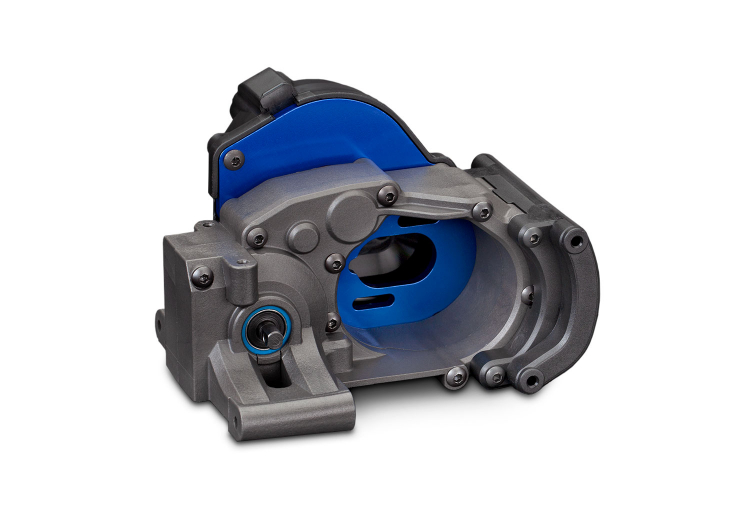

- NEW Magnum 272R transmission
- - Aluminum motor plate
- - All-metal internal gears
- - Sealed beveled-gear differential
- NEW ProGraphix® paint
- Velineon® brushless power system
- Traxxas Stability Management TSM®

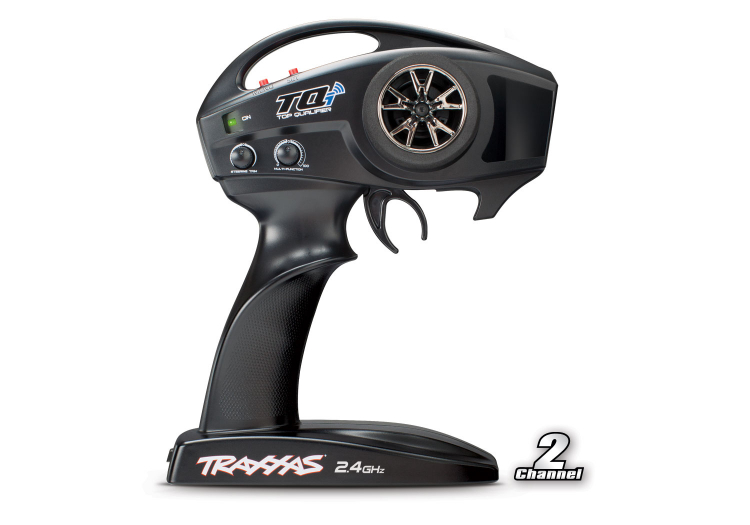

- TQi 2.4GHz transmitter and receiver
- Waterproof electronics

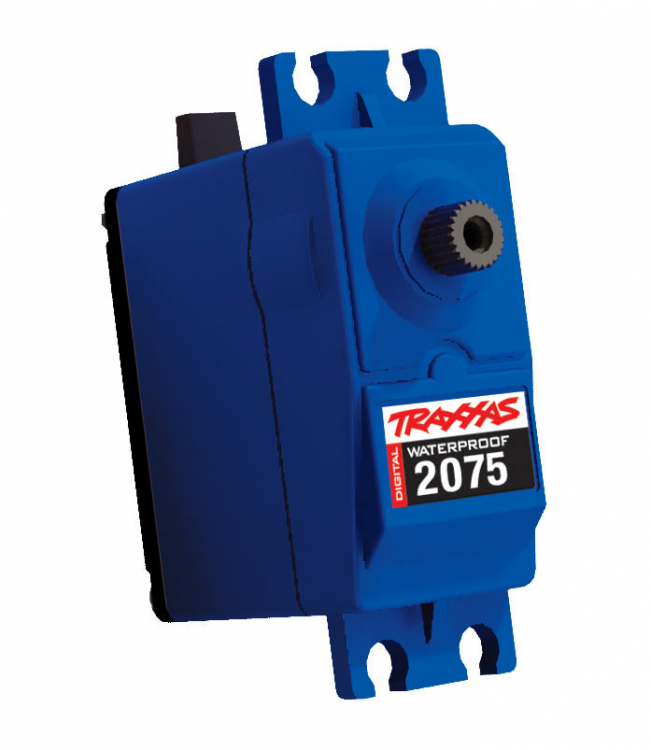

- Digital high-torque waterproof steering servo
- Precision steel turnbuckles with heavy-duty rod ends
- 100% Fully assembled and Ready-To-Race®
- Battery and charger sold separately
RUSTLER VXL (#37076-74) SPECS:
- Length: 445 mm
- Front Track: 311 mm
- Rear Track: 311 mm
- Weight: 1.69 kg
- Height (Overall): 178 mm
- Wheelbase: 289 mm
- Front Shock Length: Long
- Rear Shock Length: XX-Long
- Front Tires (Pre-Glued): Alias® Ribbed 2.8"
- Rear Tires (Pre-Glued): Alias® Step-Pin 2.8"
- Front Wheels: 2.8" Black-Chrome (All-Star™)
- Rear Wheels: 2.8" Black-Chrome (All-Star™)
- Electronic Speed Control: VXL-3s™
- Motor (Electric): Velineon® 3500 Brushless
- Gear Ratio (internal): 2.72 (Final Drive: 9.05)
- Differential Type: Planetary
- Gear Pitch: 48-Pitch
- Transmission: Magnum 272R™
- Steering: Bellcrank
- Chassis Type: Modified Tub
- Chassis Material: Composite Nylon
- Radio System: TQi™ 2.4GHz Radio System w/TSM Receiver
- Top-Speed: 112+kph**
- Skill Level: 2
- *Battery Tray Dimensions: 166 x 47.5 x 28 mm
- Required Items: NiMH or LiPo Battery, Charger, 4 "AA" Batteries (Transmitter)
*Battery expansion kit is available (#3725X)
**With 3S LiPo battery and optional 31-tooth pinion gear (sold separately)
VXL-3s WATERPROOF ESC SPECIFICATIONS:
- Input Voltage: NiMH 4-9 Cells (4.8 to 10.8 Volts DC); LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
- Case Size: 39 x 55 x 33 mm
- Weight: 90 grams
- Motor Limit (Brushless): No motor limit
- BEC Voltage: 6.0 V
- BEC Current: 2.5A
- Power Wire: 12-Gauge Maxx® Cable
- Input Harness Wire: 26 Gauge
- Low Voltage Detection: 2-Stage indicators, switchable (on or off)
- Thermal Protection: 2-Stage thermal shutdown
- Single-Button Setup: Yes, Traxxas EZ-Set®
- Battery Input Connector: Traxxas High-Current Connector
- Motor Types: Brushless (sensoreless)
- Ports: RX Input, auxiliary fan
Profile selection:
- Sport Mode: 100% FWD, 100% BRAKES, 100% REV
- Race Mode: 100% FWD, 100% BRAKES, NO REV
- Training Mode*: 50% FWD, 100% BRAKES, 50% REV
*Patented
Specs
| Car Type: |
Stadium Truck |
| Delivered as: |
RTR (Ready-To-Run) |
| Drive: |
2WD |
| Operating Mode: |
Electric |
| Scale: |
1/10 |
| Suitable For: |
Beginners , Experienced |
| Surface: |
Grass , Gravel |
| Length: |
445 mm |
| Height: |
178 mm |
| Weight: |
1690 g |
| Width: |
311 mm |
| ESC: |
Traxxas VXL-3s |
| Top Speed: |
110km/h with 3S Li-Po (Optional) |
| Transmitter: |
Traxxas TQi 2-Channel |
| Motor Type: |
Brushless |
| Motor/Engine: |
Traxxas Velineon 3500 |
| Battery: |
Not Included |
| Special Functions: |
TSM (Traxxas Stability Management) |
| Water Proof: |
Yes |
| Needed To Complete: |
2-3S Li-Po or 6-7 cell NiMh Battery with iD Connector , 4 AA batteries for transmitter , iD Charger |
