Tamiya 58752 Mercedes Benz 190E EVO II

Art.nr: 58752

2.595,-

2.795,-

- 7%
Tamiya

Tamiya

På lager: 2

På lager i vår butikk i Oslo

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Informasjon

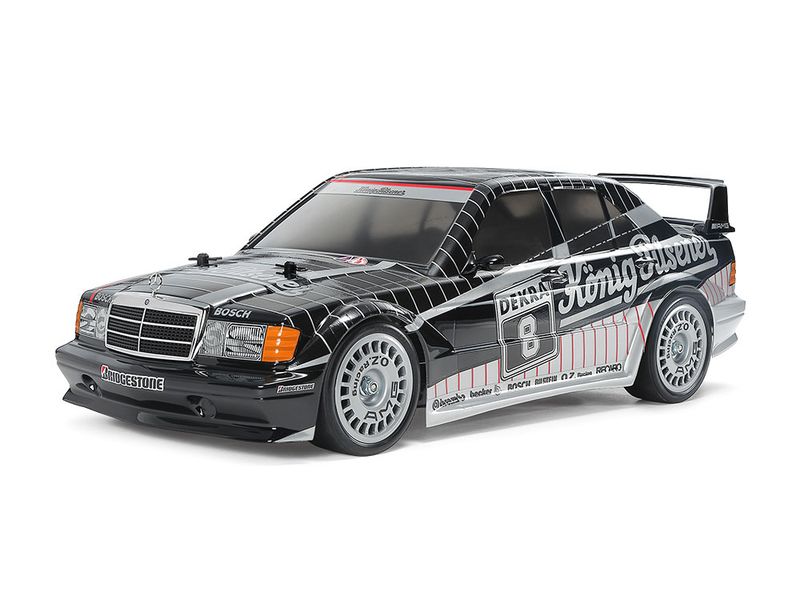

1/10 R/C Mercedes-Benz 190 E 2.5-16 EVO II 1991 (TT-02 chassis) byggesett.

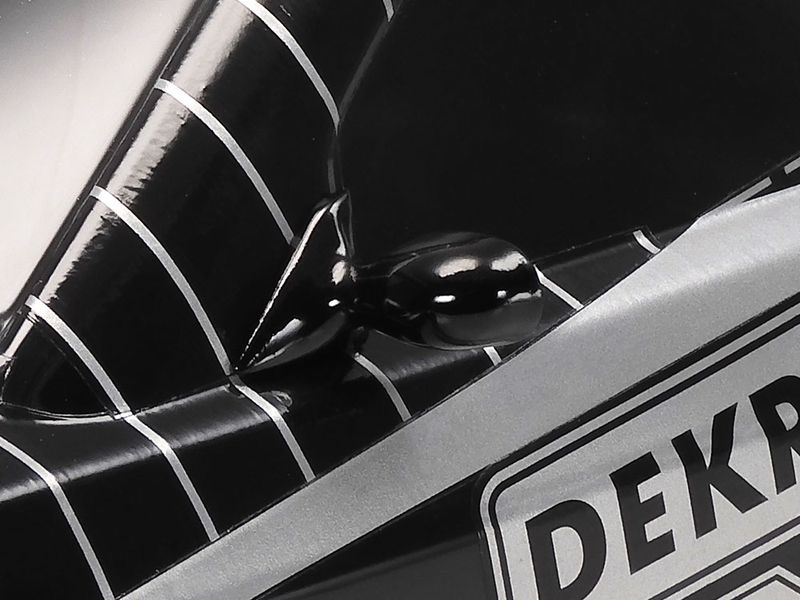

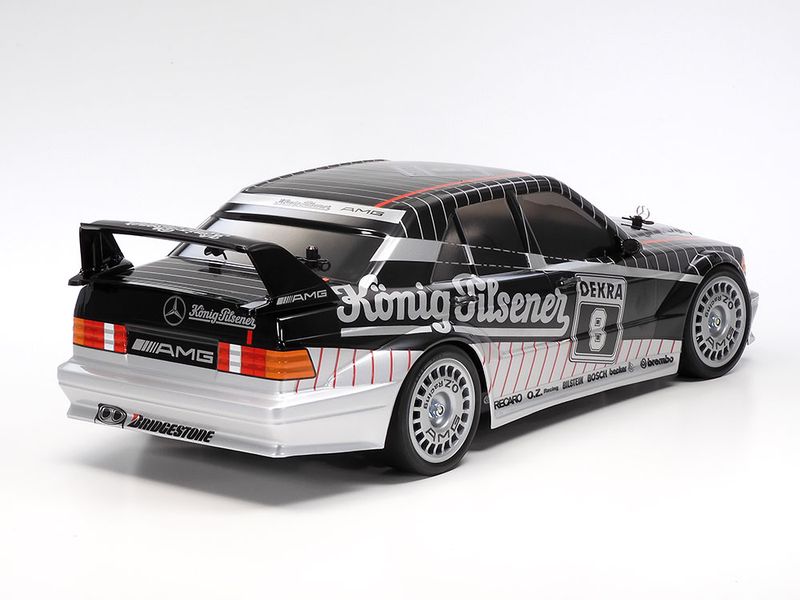

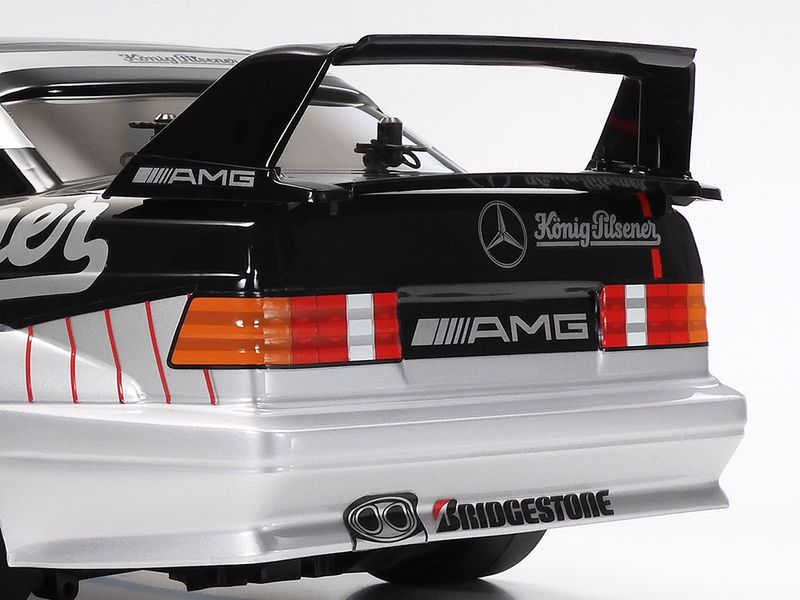

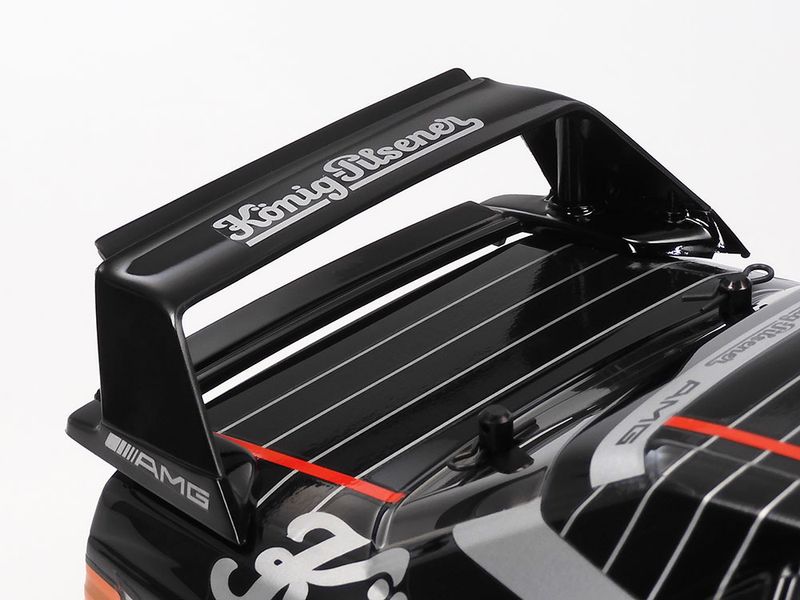

Denne bilen deltok i German Touring Car Championship (DTM) i 1991, og bidro til at Mercedes-Benz vant både konstruktør- og teammesterskapet det året. Dette byggesettet er en modell av bil nummer 8, med et karosseri i polykarbonat som gjenskaper den modifiserte 4-dørs sedan formen med frontleppespoiler og brede hjulbuer.

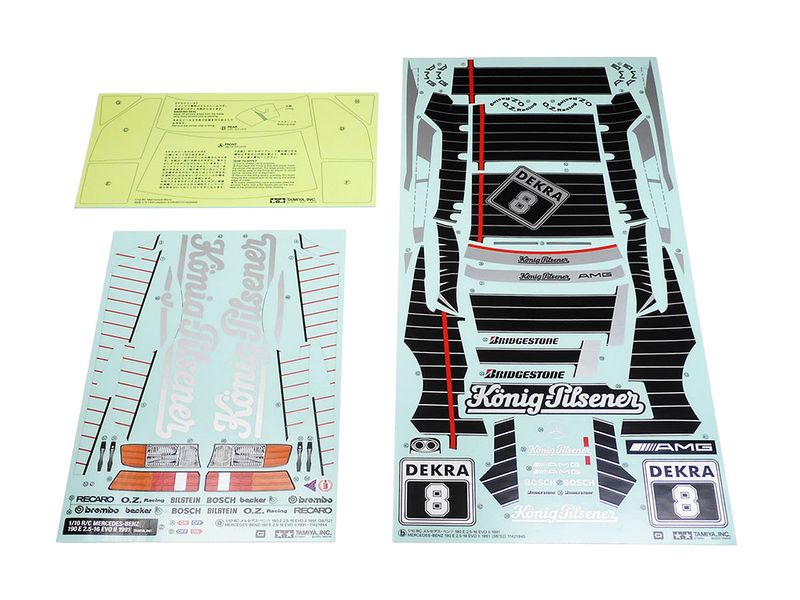

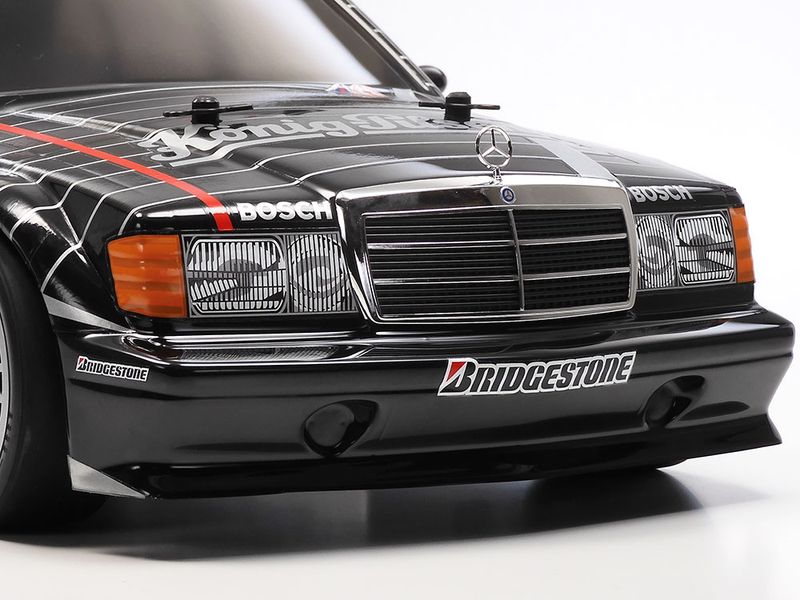

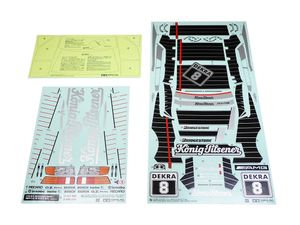

Separate forkrommede deler brukes til stjernen på panseret og til frontgrillen. Dekaler følger med for dekorering av karosseriet.

TT-02: Allsidig, balansert akseldrevet 4WD

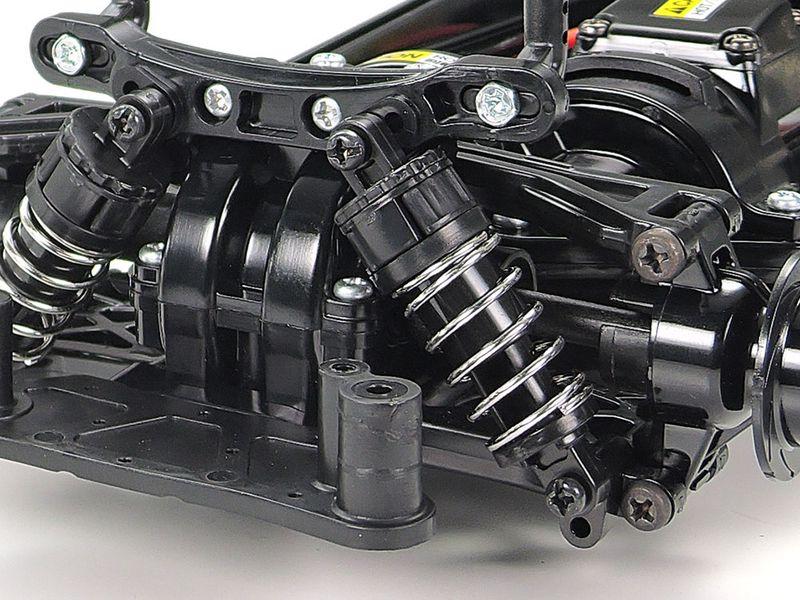

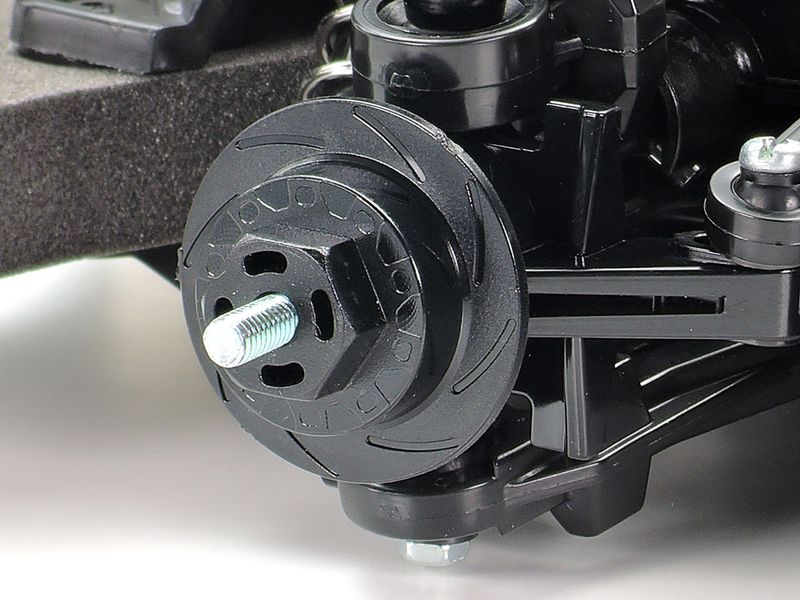

Det akseldrevne firehjulstrekk TT-02 chassiet har en langsmontert layout, med batteriet på venstre side og motoren på høyre for å gi utmerket stabilitet. I tillegg har det identiske venstre og høyre bærearmer og uprights, noe som gjør monteringen enklere, samt girkasser som er enkle å vedlikeholde.

Chassiet er svært tilpasningsdyktig, med to mulige oppsett av akselavstand, to innstillinger for bakkeklaring og for to sporvidder, i tillegg til ti mulige girforhold.

Spesifikasjoner

Lengde / bredde / høyde: 445 × 184 × 137mm
Hjulbase: 257mm

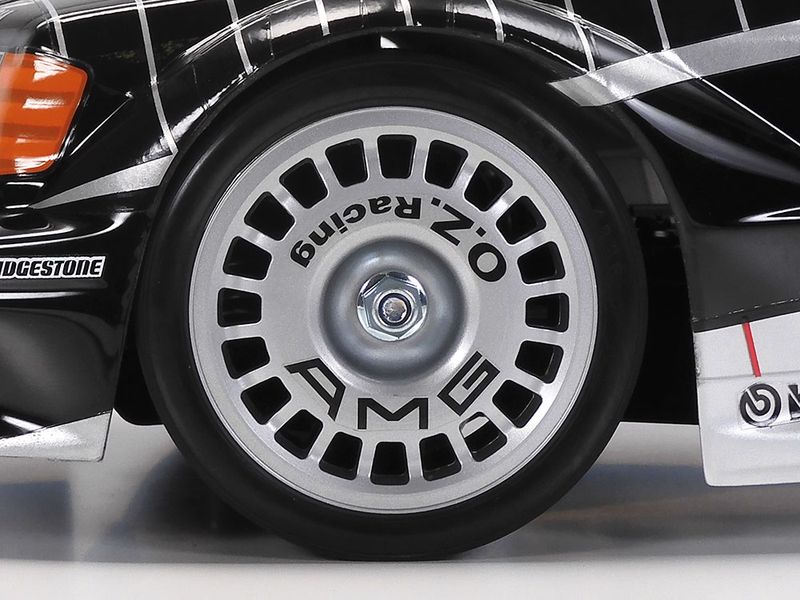

Dekkbredde / diameter: 27 / 67mm (for- og bakhjul)
“Bathtub”-type chassis
Akseldrevet 4WD
For- og bakdifferensial med 4 bevel drev (koniske tannhjul)
3-delt styrestag

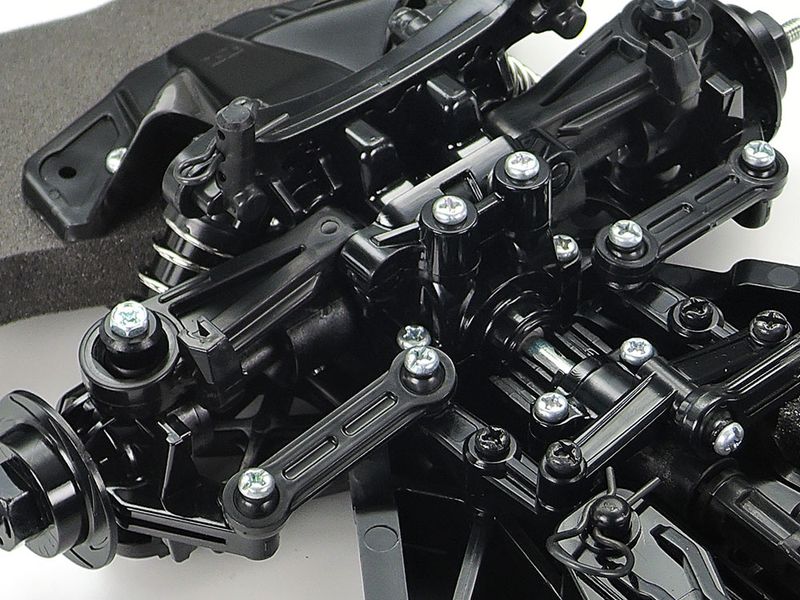

Firehjuls dobbel wishbone-oppheng
Friksjonsdempere foran og bak
Girforhold: 8.27:1 (9 ekstra forhold fra 11.38:1 til 7.28:1 mulig med separat solgte pinjonger)

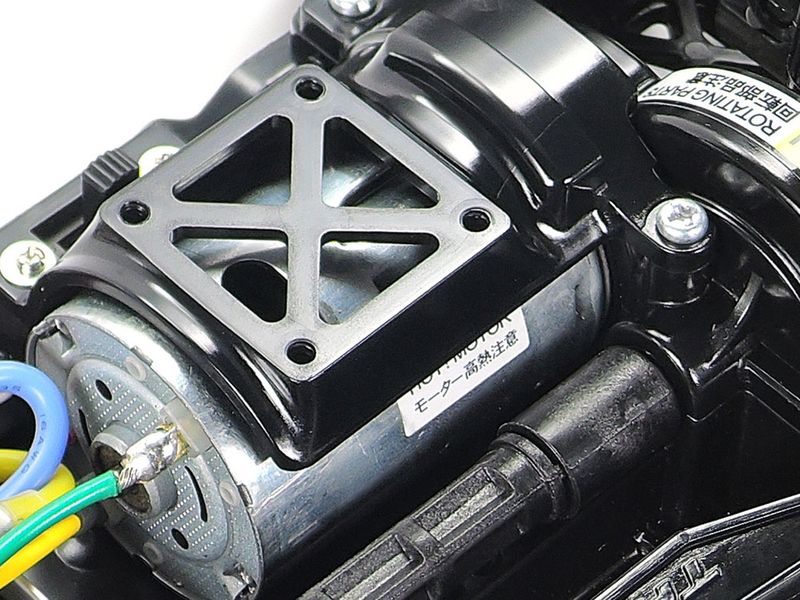

Motor: type 540 inkludert
ESC inkludert

Må kompletteres med:

  • Radio og mottaker
  • Servo
  • NiMH eller LiPO batteri
  • Batterilader
  • PS lakk

Anbefales:

  • Kulelagre

Anbefalte farger:

PS-5 Black
PS-12 Silver
PS-31 Smoke
TS-14 Black
X-18 Semi-Gloss Black
