The purebred racer, redefined!
The 1/10, electric Top Force 2017 4WD Kit reimagines the classic buggy that's been popular since 1991, adding square spike tires for superior traction! Other highlights include a Fiberglass-Reinforced Plastic (FRP) double-deck chassis, a powerful 540 motor with rear transverse mount, a polystyrene resin body, driver figure and white nylon wheels.
- Fiberglass Reinforced Plastic (FRP) double-deck chassis.
- Four-wheel shaft drive.
- 540-size motor with rear transverse mount.
- Polystyrene resin body with rear wing, marking decals and driver figure.
- Plastic oil CVA shocks.
- Fiberglass Reinforced Plastic shock damper stays.
- Fully independent double wishbone suspension.
- Bellcrank steering.
- Front/rear ball differentials with a rigid propeller shaft.
- Square spike tires with rubber construction.
- White nylon wheels.
- Adjustable toe-in/camber.
- Shielded ball bearings.

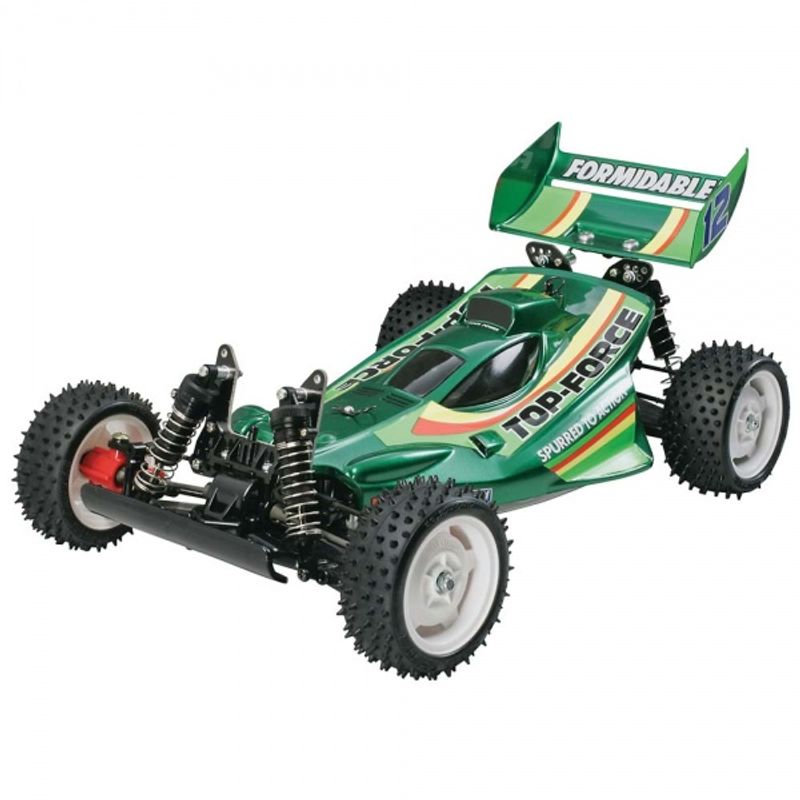

This is the 1/10 scale, Electric Powered, Radio Controlled,
Top Force 2017 Offroad Buggy Kit from Tamiya.
| FEATURES |
Chassis: 0.078" (2mm) thick fiberglass
Drive: Four wheel shaft drive
Differentials: Ball type
Motor: 540 size brush equipped, rear transverse mount
Ball Bearings: Shielded for long life
Shocks: Plastic body oil filled CVA type
Gearboxes: Sealed
Differential: Gear type
Body: Molded from clear polycarbonate
Tires: Square spike rubber construction
Wheels: One-piece nylon construction, white in color 2.2" (56mm)
diameter, front 0.93" (23.7mm) wide, rear 1.1" (29mm) wide
12mm hex
Suspension: Fully independent double wishbone
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable front only, caster/toe-in refers to the angle
of the suspension when viewed from the side of the car in relation
to the chassis
Steering: Ball bearing equipped bell crank type
| INCLUDES |
Top Force rolling chassis with oil-filled shocks, 540 motor, clear
polycarbonate body, decals, wheels, tires, 21 tooth pinion gear
spur gear and instructions
_
| REQUIREMENTS |
Radio: 2-channel with high-torque steering servo
Radio Batteries: AA size
ESC: Compatible with included 540 brushed motor
Battery: 6-cell flat w/standard connector
Charger: AC/DC timed or peak for 6-cell battery
Building and track equipment
| SPECIFICATIONS |
Vehicle;
Length: 15.7" (400mm)
Width: 9.8" (249mm)
Height: 7.4" (187mm)
Weight: 2.7lbs (1240g) approximately
Tires: Front, width 1.2" (31.5mm), diameter 3.1" (80mm)
Rear, width 1.6" (40mm) diameter 3.1" (80mm)
Body;
Length: 11.3" (287mm)
Width: 6.2" (158mm) at widest point
Height: 3.1" (79mm)
