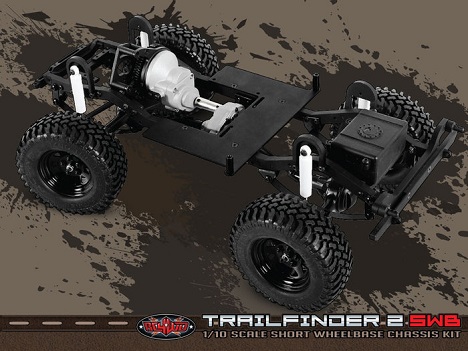

RC4WD 0045 Trail Finder 2 Truck TF2 Kit "SWB"

Art.nr: K0045
5.395,- 5.695,- -5%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

** Ikke på lager

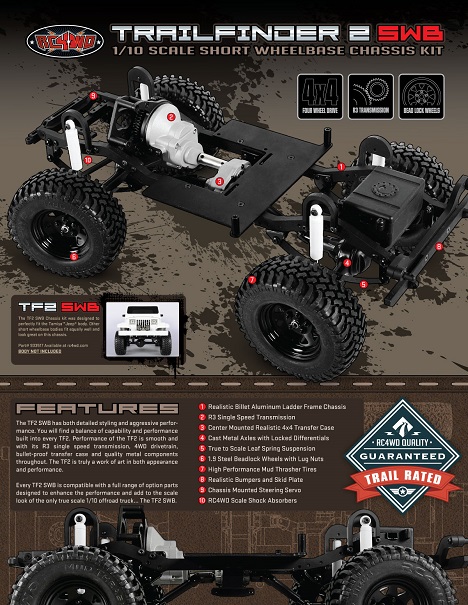

The TF2 SWB has both detailed styling and aggressive performance.
You will find a balance of capability and performance built into every TF2.
Performance of the TF2 is smooth and with its R3 single speed transmission, 4WD drivetrain, bullet-proof transfer case and quality metal components throughout.
The TF2 is truly a work of art in both appearance and performance.
Every TF2 SWB is compatible with a full range of option parts designed to enhance the performance
and add to the scale look of the only true scale 1/10 offroad truck... The Trailfinder 2 SWB.

Realistic Billet Aluminum Ladder Frame Chassis "SWB"
R3 Single Speed Transmission
Center Mounted Realistic 4x4 Transfer Case
Yota II Ultimate Scale Cast Axle
True to Scale Leaf Spring Suspension
5 Lug Wagon 1.9 Steel Stamped Beadlock Wheels (Black)
Mud Thrashers 1.9 Scale Tires
Realistic Bumpers and Skid Plate
Chassis Mounted Steering Servo
RC4WD Scale Shock Absorbers
Plastic Rod Ends
Full Ball Bearings

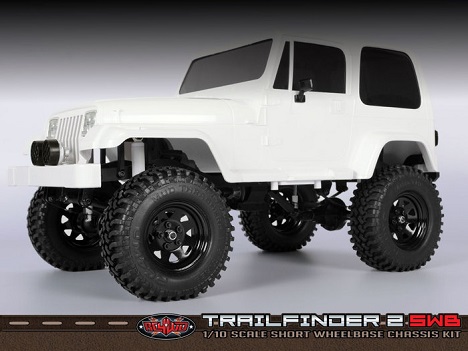

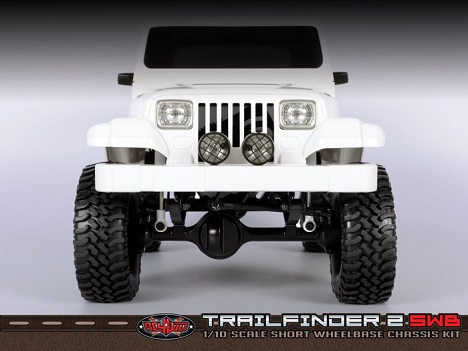

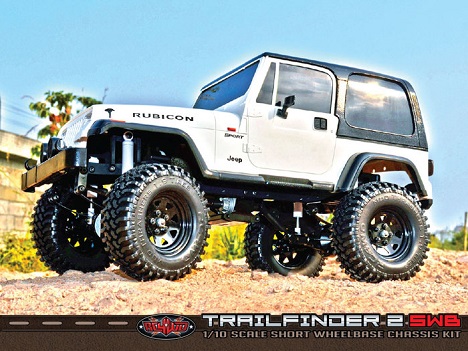

Shown with Tamiya Jeep Body for example (not included)

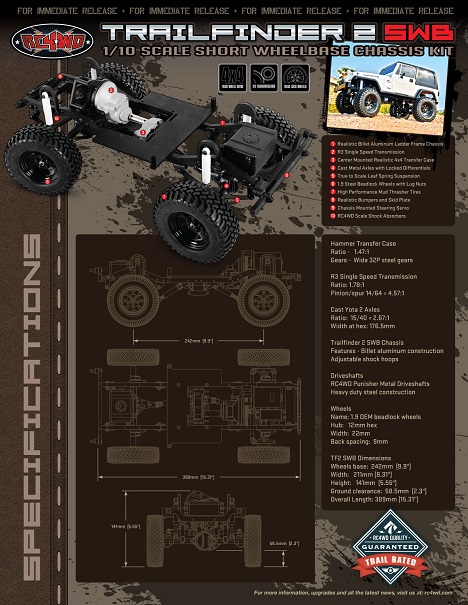

All New Hammer Transfer Case
Ratio - 1.47:1
Gears - Wide 32P steel gears

All New R3 Single Speed Transmission
Ratio: 1.78:1
Pinion/spur 14/64 = 4.57:1

Cast Yota 2 Axles
Ratio:  15/40 = 2.67:1
Width at hex: 176.5mm

Trailfinder 2 SWB Chassis
Features - Billet aluminum construction Adjustable shock hoops

Driveshafts
RC4WD Punisher Metal Driveshafts
Heavy duty steel construction

Wheels
Type: 1.9 5 lug Wagon Wheels
Hub: Pin type
Width: 25mm
Back spacing: 11mm

TF2 SWB Dimensions
Wheels Base: 9.9in / 242mm
Width: 8.3in / 211mm
Height: 5.55in / 141mm
Ground Clearance: 2.3in / 58.5mm
Overall Length: 15.31in / 389mm
Weight: 62.1oz / 1.76kg

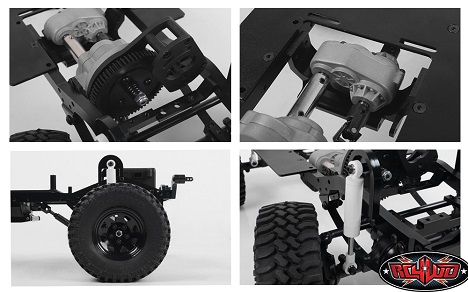

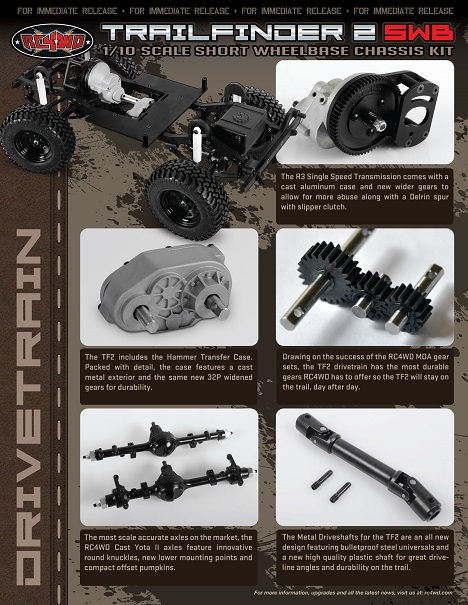

DRIVETRAIN
The TF2 includes the Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and the same new 32P widened gears for durability.

The most scale accurate axles on the market, the RC4WD Cast Yota II axles feature innovative round knuckles, new lower mounting points and compact offset pumpkins.

The R3 Single Speed Transmission comes with a cast aluminum case and new wider gears to allow for more abuse along with a Delrin spur with slipper clutch.

Drawing on the success of the RC4WD MOA gear sets, the TF2 drivetrain has the most durable gears RC4WD has to offer so the TF2 will stay on the trail, day after day.

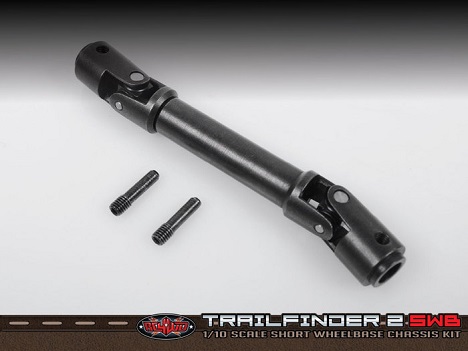

The Metal Driveshafts for the TF2 are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.

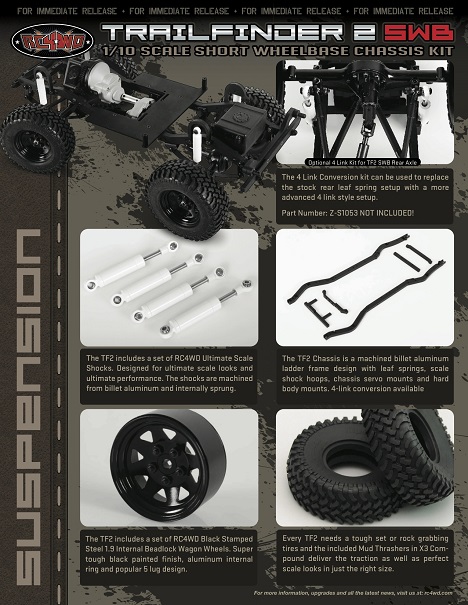

Suspensions

The TF2 includes a set of RC4WD Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

The TF2 includes a set of RC4WD Black Stamped Steel 1.9 Internal Beadlock Wagon Wheels. Super tough black painted finish, aluminum internal ring and popular 5 lug design.

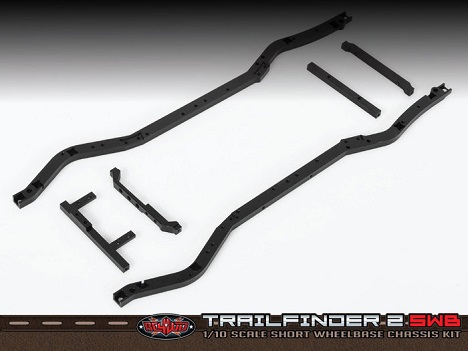

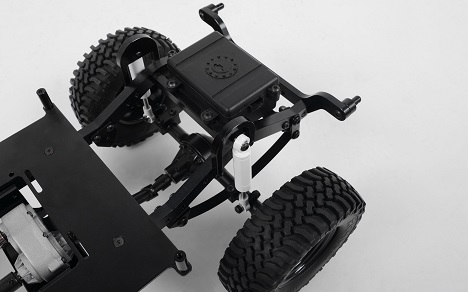

The TF2 Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts. 4-link conversion available

Every TF2 needs a tough set or rock grabbing tires and the included Mud Thrashers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

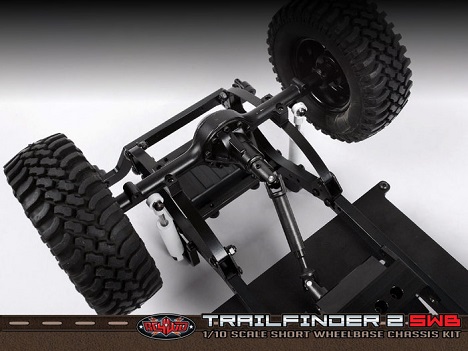

The 4 Link Conversion kit can be used to replace the stock rear leaf spring setup with a more advanced 4 link style setup.Z-S1053 (Not Included)

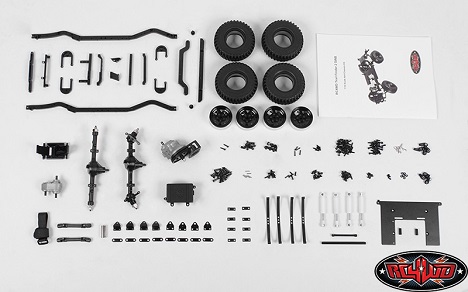

What's Included:
  • 1x RC4WD Trail Finder 2 SWB

Required to Complete:

Truck Kit
  • Hex Drivers  (1.5mm, 2mm, 2.5mm)
  • Long Nose Pliers
  • Associated Thread Locking Adhesive
  • Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Electronics:
  • Motor (35t, 45t, or 55t)
  • Electronic Speed Controller "ESC"
  • Radio and Receiver (3 channel or more)
  • 1x Standdard Size Servo
  • Battery (Consult your "ESC" manual)
  • Charger (Consult you battery Guide)

Replacement Parts:
  • Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis
  • Fuel Cell Radio Box
  • R3 Scale Single Speed Transmission
  • Electronics Top Plate w/Servo Mounts
  • Hammer Transfer Case (1.47/1)
  • Leaf Spring Shackles & Mounts Kit
  • Yota II Ultimate Scale Cast Axle (Front)
  • Yota II Ultimate Scale Cast Axle (Rear)
  • 5 Lug Wagon 1.9 Steel Stamped Beadlock Wheels (Black)
  • Mud Thrashers 1.9 Scale Tires
  • M3 Mini Plastic Rod End (20x)
  • M3 Offset Short Plastic Rod End (20x)
  • Silver Steel Body Clips 1.21mm

Tamiya Body Part Numbers:
  • Tamiya Jeep Wrangler Body
  • Tamiya Wrangler M Parts
  • Tamiya Jeep Wrangler L Parts
  • Tamiya Jeep Wrangler K Parts
  • Tamiya Jeep Wrangler H/J Parts
  • Tamiya Jeep Wrangler Metal Parts Bag
  • Clear Lexan Windshield for Tamiya Jeep Wrangler Body

Optional Parts:
  • 1.9" 5 Lug Steel Wheel Hex Hub
  • 1.9 5 Lug Steel Wheel Hex Hub with Brake Rotor
  • Scale Aisin/Yota Style Hubs
  • Scale Rear Hubs
  • XVD Axle for Ultimate Scale Yota II G2 Axle
  • King Off-Road Scale Dual Spring Shocks (80mm)
  • Triton Transfer Case (1:1)
  • Metal Hinge Set for Tamiya CC01 Wrangler
  • Hood Grill for Tamiya CC01 Wrangler
  • 1/10 Metal Grill for Tamiya CC01 Jeep Wrangler
  • Rear Detailed Lens for Tamiya CC01 Wrangler
  • Rear Lens for Tamiya CC01 Wrangler
  • Rear Diamond Plates Corner Set for Tamiya CC01 Wrangler (Silver)
  • Rear Diamond Plates Corner Set for Tamiya CC01 Wrangler (Black)
  • Front Lens for Tamiya CC01 Wrangler
  • 1/10 Metal Logo for Tamiya CC01 Wrangler
  • Rear Taillight Grill for Tamiya CC01 Wrangler
  • Mounting Adapter for TF2 SWB and Rampage Recovery Rear Bumper
  • Internal Springs for ARB 70mm Shocks
  • Punisher Shaft II (80mm-100mm,3.15"-3.93") 5mm hole
