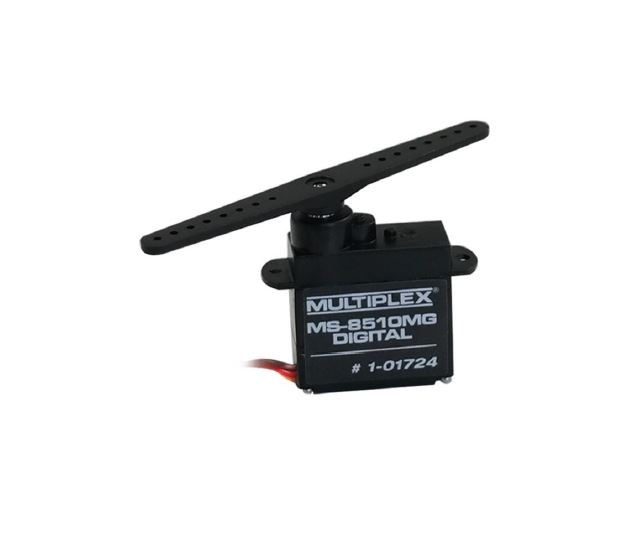

Multiplex SERVO MS8510MG DIGITAL
Perfekt servo for indoor fly. Eventuelt fly av micro størrelse. Med sin lille fysiske størrelse 8x23x20mm – OG sine beskjedene 5gr
Informasjon på engelsk:
The new multiplex indoor servo.
The MS-8510MG Digital is specially designed to meet the needs of indoor pilots.
It’s fast, strong, and precise.
Has a sturdy aluminum gear. (Finally no more “caries” after a contact with the ground, as with so many other micro servos with plastic gears)
An extra large servo lever is perfect for rope and rod linkage.
Last but not least, thanks to the “honest” 60 degree path, large deflections are possible at full power.
Look forward to many nice flights with the new MS-8510MG Digital
The MS-8510Mg Digital is also perfect for F3K, HLG and other models.
Bredde: 8 mm
Høyde: 23mm
Lengde: 20mm
Vekt: 5gr
Servotype: Mikro
Spesielle funksjoner: digital
Gear: metall
Driftsspenning i V: 4,8-6,0 V.
Posisjoneringstid s / 60 ° ved 6,0 volt: 0,06
Moment i kg/cm ved 6,0 volt: 1
Tanning: 5
Kulelager: Nei.
Vanntett: Nei
| DREV |
Metall |
|---|---|
| HASTIGHET |
0.06 |
| MERKE |
Multiplex |
| SPENNING |
4.8V, 6.0V |
| SPLINE |
15 |
| STØRRELSE |
Nano |
| TIL |
Fly |
| TORQUE |
1kg |
| TYPE |
Digital |
| VEKT |
5g |
