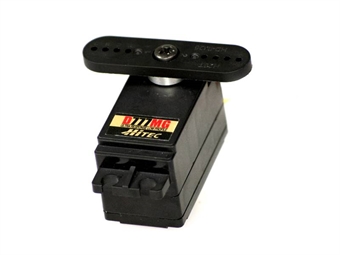

D777MG Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.09 ~ 0.07 |
| Maximum Torque Range oz. / in. | 72 ~ 90 |
| Maximum Torque Range kg. / cm. | 5.2 ~ 6.5 |
| Current Draw at Idle | 30mA |
| No Load Operating Current Draw | 200mA |
| Stall Current Draw | 3,000mA |
| Dead Band Width | N / A |
| Physical Specifications | |
| Dimensions (Metric) | 40.4 x 21.0 x 25.4 |
| Weight (Ounces) | 1.80 |
| Circuit Type | 32 bit Programable Digital |
| Motor Type | Coreless Metal Brush |
| Gear Material | MP 1st Gear & 3 Metal Gears |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | 25 / 6 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | N / A |
| MERKE |
HITEC |
|---|---|
| STØRRELSE |
Low profile |
| TYPE |
Digital |
| VANNTETT |
SPLASHPROOF |
| SPENNING |
4.8V, 6.0V |
| DREVTYPE |
Metal |
