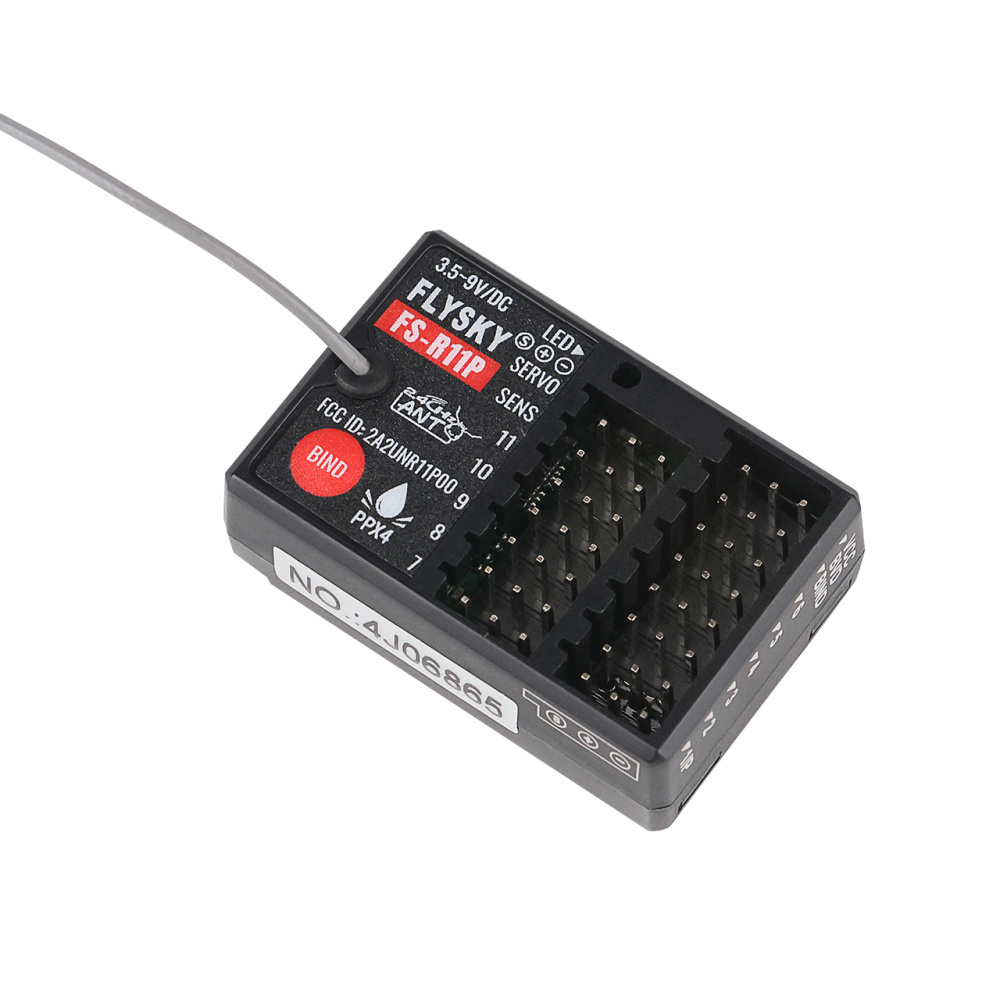

Flysky R11P ANT Receiver 11CH
The FlySky FS-R11P is a compact 11-channel ANT receiver for RC cars and boats. It supports PWM, PPM, i-BUS, S.BUS and i-BUS2, and its bidirectional ANT link enables telemetry and model setup directly via compatible FlySky transmitters (e.g., G11P / G7P+).
| Specifications |
| Model: |
FS-R11P |
| Compatible transmitters: |
FlySky radios with ANT protocol (e.g., G11P, G7P+) |
| Application: |
Car / Boat |
| Channels: |
11 |
| RF / Protocol: |
ANT |
| Transmit power (EU): |
<20 dBm |
| Resolution: |
4096 |
| Outputs: |
PWM / PPM / i-BUS / S.BUS / i-BUS2 |
| Input voltage: |
3.5 – 9 V DC |
| Antenna: |
External single antenna |
| Firmware update: |
Supported |
| Water / splash protection: |
PPX4 |
| Dimensions: |
37.0 × 25 × 13.3 mm |
| Weight: |
10 g |
| Operating temperature: |
−10 °C to 60 °C |
| Humidity: |
20% – 95% RH |
