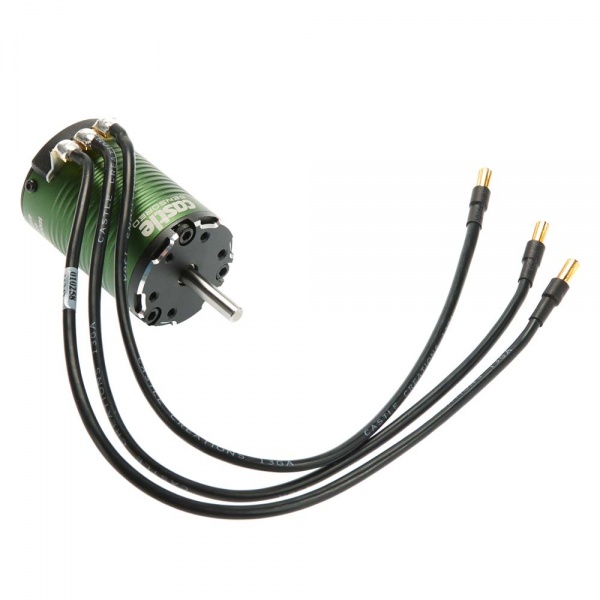

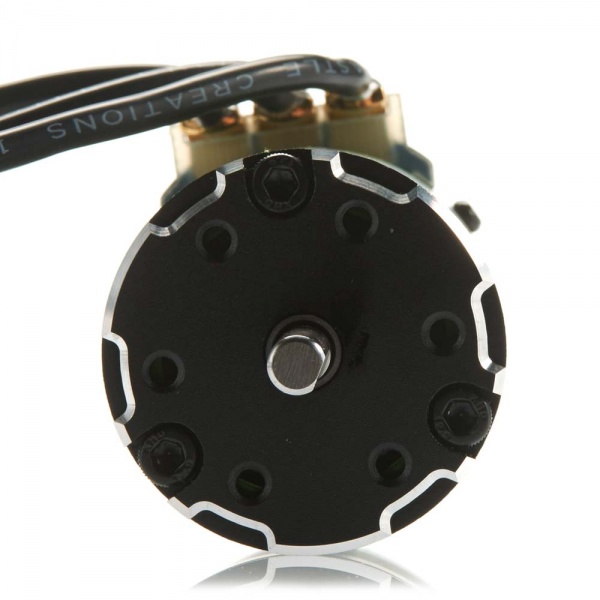

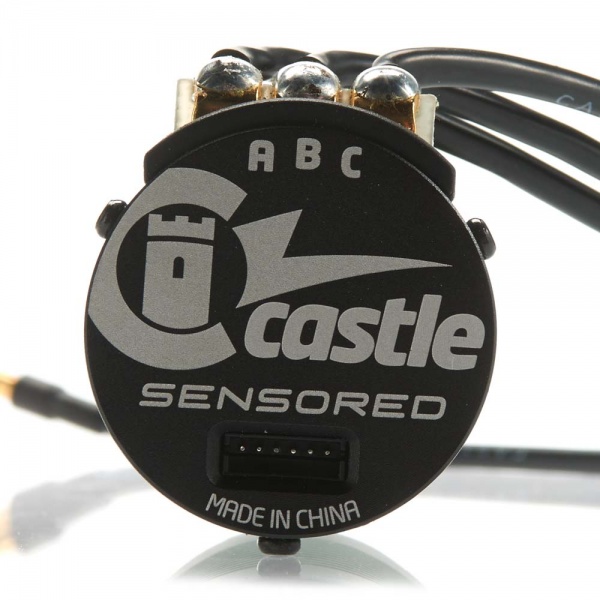

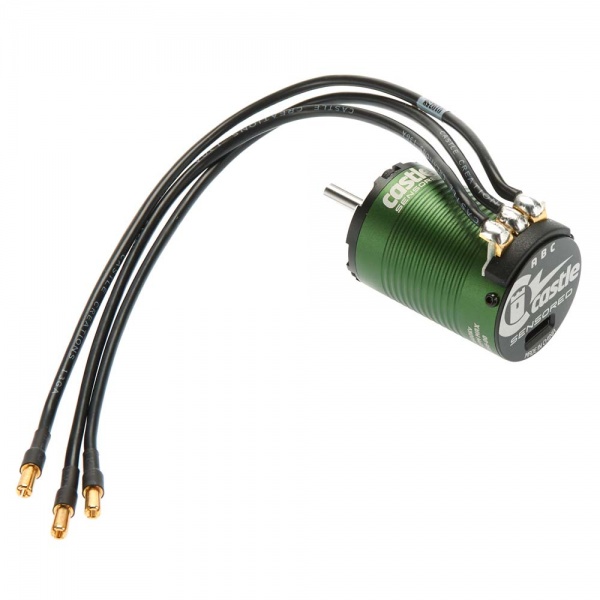

This is the Castle 1410 1Y 3800Kv 4-Pole Sensored Brushless Motor
with 0.197" (5mm) Diameter Shaft.
| FEATURES |
Ideal for 1/10 scale 2WD and 4WD short course trucks up to 6.5lbs
using a 2S LiPo, and 1/10 scale buggies and stadium trucks up to
4lbs using a 2-3S LiPo
High-strength 180°C grade neodymium sintered magnets with high-
strength wrap
High-temperature, high purity copper windings
High-performance 0.2mm steel lamination stacked stator
Vibration dampening wave spring on shaft
Rotor position sensor eliminates cogging and inconsistency during
startup
CNC machined 6061 T-6 aluminum endbells and motor can
13AWG high strand count silicone insulated wires with 4mm male bullet
connectors
Four pole configuration for maximum efficiency at high RPM
ROAR standard sensor port and labeled connections
Replaceable front end bell/bearing assembly and rotor/shaft assembly
| INCLUDES |

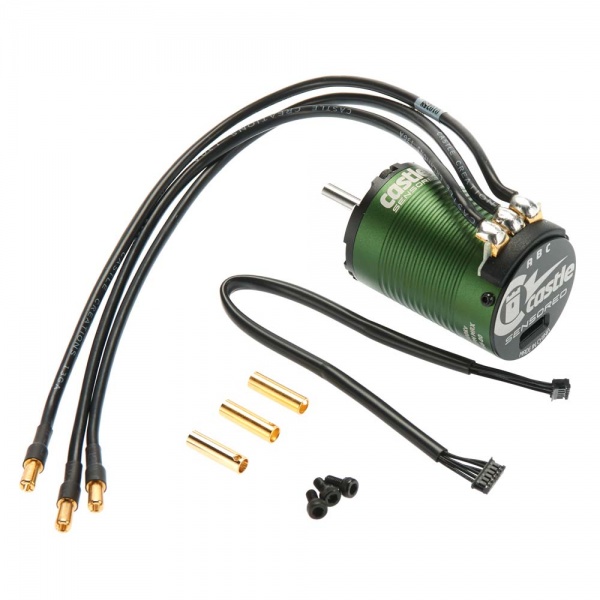

1410 1Y 3800Kv 4-Pole Sensored Brushless Motor, Sensor Wire, Power
Leads with 4mm Male and Female Castle Bullet Connectors and three
3x5mm Socket Head Cap Screws
| REQUIREMENTS |
Compatible electronic speed control such as the Castle Mamba Max Pro,
Mamba Monster X and Mamba X
| SPECIFICATIONS |
Input Voltage Range: 2-3S LiPo
Kv: 3800
Max RPM: 100,000
Length: 2.1" (52.7mm)
Diameter: 1.4" (36mm)
Shaft Diameter: 0.197" (5mm)
Shaft Length: 0.83" (21mm)
Weight: 8.4oz (237g)
Mounting Hole Size: M3 @ 25mm
Castle Creations makes the best electronic speed controllers in the industry, possibly the world! Our engineers have spent countless hours integrating features and firmware that no other manufacturers can match.
Speed Controllers enabled with SmartSense use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with electronic timing. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at each. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This combines the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless running. Your motor will produce more power and less heat.
