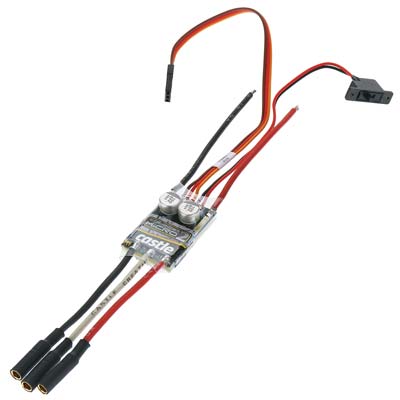

Castle Creations 010015000 1/18 Sidewinder Micro 2 ESC

Art.nr: 010-0150-00

1.199,- ~~1.249,-~~ -4%

Du vil motta en e-post så snart produktet er på lager!

En ukjent feil har oppstått. Prøve igjen

Castle Creations

På lager: 2

Informasjon
Produsent

Micro size, mega control

The Sidewinder Micro, Castle's popular and affordable Micro controller, has been revamped. Users will notice big advancements in start-up and performance, thanks to the updated circuitry. The BEC functionality has been upgraded (adjustable at 5.5V or 7.5V) as well as the addition of new audible alert tones for easy detection of common setup problems. The ESC is available individually, or in combination with one of Castle's 0808 4 Pole Sensorless Brushless Motors. The Sidewinder Micro 2 is ideal for 1/18 scale RC hobby vehicles weighing up to 2lbs.

Adjustable BEC–5.5V(default) or 7.5V (2A Peak)
Programmable via transmitter, Windows© based PC and a Castle Link USB adapter (sold separately), or a Field Link card (purchased separately).

Input Voltage Range–Minimum: 2S LiPo, Max: 3S LiPo, 12.6V
Plenty of programmable features including torque limit, punch control, motor type (brushless or brushed), forward/reverse speed limiting and more!

This is the 1/18 scale Castle Creations Sidewinder 2 Micro
Electronic Speed Control.

FEATURES

For 1/18 scale radio controlled vehicles weighing up to 2lbs (907g)
May be powered by 2S-3S LiPo, or 4-9 cell NiMH cells
Alert tones for start fail, voltage cutoff, radio glitch,
over-temperature, over-current and excessive load detections
Adjustable for 5.5V-7.5V operation
Link Live enables controller to communicate real-time telemetry data
such as battery voltage, ESC temperature, motor power output and
battery ripple (Requires purchase of Castle S.BUS2 Telemetry Link)
Manual programming settings include Brake/Reverse Type, Voltage
Cutoff, Brake Amount, Drag Brake, and motor type
Updated circuitry and refined software for ultra-smooth starts

INCLUDES

Sidewinder 2 Micro ESC, Motor Leads with 3.5mm bullet connectors

REQUIREMENTS

High-current battery connector rated for at least 40A

SPECIFICATIONS

Input Voltage: 2S-3S LiPo, 4-9 cell NiMH
BEC Specifications: Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
Size: 0.87 x 1.5" (22 x 38mm)
Weight: 0.92oz (26g) with wires

Castle Creations

Castle Creations makes the best electronic speed controllers in the industry, possibly the world! Our engineers have spent countless hours integrating features and firmware that no other manufacturers can match.

Speed Controllers enabled with SmartSense use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with electronic timing. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at each. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This combines the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless running. Your motor will produce more power and less heat.
