Putting the X in Extreme!

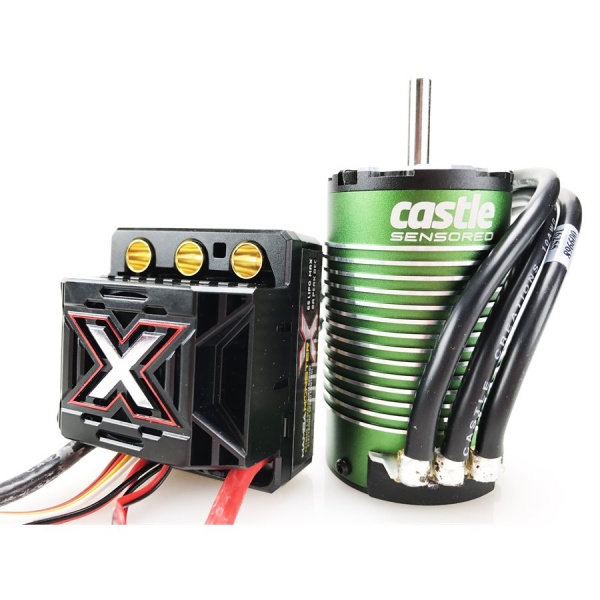

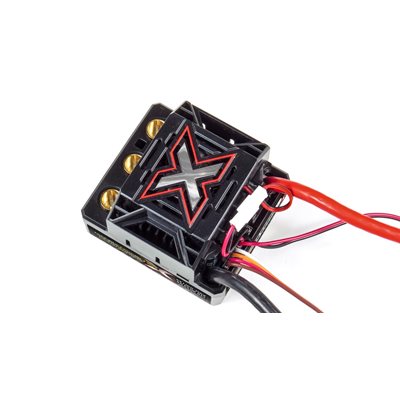

Mamba Monster X is our latest 1:8 scale and Monster truck controller capable of 2S - 6S LiPo (4s maximum with included 1512 - 2650kv motor), with an 8 amp peak BEC - and, it’s waterproof*, so you can run your vehicle through morning dew, across soggy snow, or a muddy trail. This is the perfect upgrade for 1:8 scale buggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 9 lbs with the included 1512 - 2650kv sensored motor. It also comes standard with a highly efficient, 30mm ESC cooling fan. Mamba Monster X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.

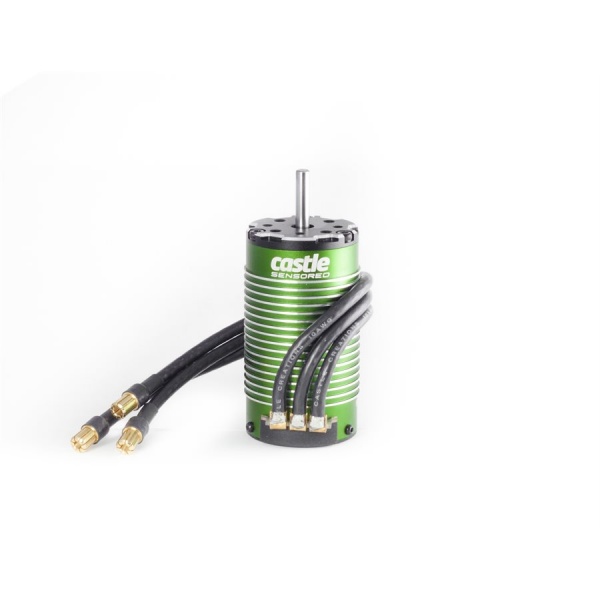

Now With a Sensored Motor!
The Mamba Monster X is now paired with our brand new sensored 15xx series motors.We have taken our award winning 15xx series motors and added sensor capabilities. So now you can all of the torque and performance you know and love and have even more control! We still use the same high quality components as our sensorless motors, such as ultra-thin stator laminations, high temperature sintered neodymium magnet and high RPM ABEC3 bearings.
Why sensored? Some drivers and applications are better suited for sensored motors. Some drivers need smoother throttle control in racing environments. When coming out of a corner a sensorless motor may not provide optimal throttle control and can cause the motor power to surge a bit. With sensored motors the throttle will feel smoother and more linear which allows for more precise throttle management. If you are simply bashing and not racing on a track you will most likely not see the full benefits from a sensored operation.
The Auxiliary Advantage.
Mamba Monster X features the addition of a new, programmable Auxiliary Wire that allows you to make “on-the-go” adjustments to several settings such as torque control, and max throttle, and fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter.
Mamba Monster X can capture and record performance data from your last couple of runs, commonly referred to as data logging. This data can be downloaded via the Castle Link USB programmer; you can use the Quick Connect Duo (sold separately) to allow you to quickly access the ESC's receiver wire without having to disconnect from your receiver. You can then analyze this data and make adjustments to the ESC to maximize both performance and battery life.
Mamba Monster X is telemetry ready, which means owners of the Futaba T4PX Transmitters can purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.
The 1512-2650kv version is capable of 2S to 4S LiPo and is perfect for 1/8 scale buggies and on-road cars weighing up to 9lbs (with batteries, ready-to-run). Paired with our Mamba Monster X ESC you will have all the power your 1/8th scale vehicle demands with the smoother throttle control of a sensored motor.
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit. Fan is not waterproof.
7.4V Speed: 0.095 6.0V Speed: 0.11 7.4V Torque: 20 kg-cm 6.0V Torque: 13 kg-cm Dimensions: 40.3 x 20.2 x 37.2mm...
