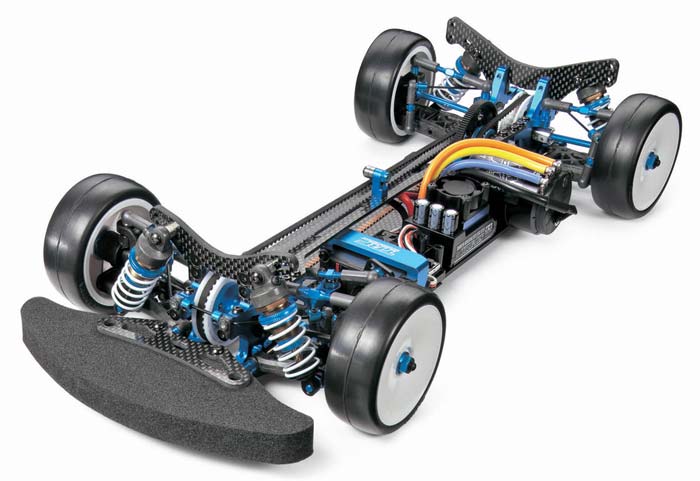

Tamiya 42240 TRF417WX Chassis Kit

Art.nr: 42240
5.990,-6.390,-

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager kan du legge igjen epostadressen din i skjemaet under.

På lager: 3

  This is the electric powered, radio controlled, 1/10 scale
            Tamiya TRF417V5 Premium Package Race Car Chassis Kit.

FEATURES: Chassis: Newly designed carbon fiber 0.09"(2.25mm) thick lower deck
            and 0.08" (2mm) thick upper deck with refined shapes to provide
            optimum roll flexibility
          Drive: Four wheel dual belt drive, universal drive shafts, front
            direct coupling equipped with cup joints and coupled with double-
            cardan drive shafts for smooth power transfer
          Differential: Gear Diff Unit II (ball diffs included)
          Shocks: Oil-filled TRF aluminum threaded body, high aeration design
          Shock Towers: Carbon fiber 0.14" (3.5mm)
          Motor Mount: One-piece aluminum, located near center of chassis for
            greater traction during racing
          Spur Gears: Two, composite construction 111 and 113 tooth
          Bumper: Front foam
          Suspension: Four wheel independent with carbon reinforced plastic
            parts, front and rear sway bars included, blue anodized
            aluminum threaded turnbuckles
          Ball Bearings: Full set
          Wheels: White dish touring car type 0.94" (24mm) wide, 1.9" (48.2mm)
            diameter, 0° offset, 12mm hex
          Wheel Hubs: Clamp type aluminum hubs. 0.16" (4mm) thick
          Caster: Adjustable front and rear, caster/toe-in refers to the angle
            of the front suspension when viewed from the side of the car in
            relation to the chassis
          Camber: Adjustable, camber refers to the angle of the tops of the
            tires from vertical when viewed from front or behind vehicle
          Steering: Bell-crank with servo saver, newly designed linkage is not
            connected to the upper deck for greater flexibility to hold
            traction during cornering

INCLUDES: Tamiya TRF417V5 Race Car Kit with decals, shocks, two spur gears,
            shock oil and instruction manual

REQUIRES: Radio: 2-channel
          Servo: Standard size, high-speed recommended for best performance
          Motor: Type 540
          Speed Control: To match selected motor
          Pinion Gear; 04 module
          Battery: 6-cell stick pack
          Battery Charger: Peak type recommended
          Radio Batteries: 8-AA for transmitter
          Tires: 1/10 On-road, 24mm slick
          Body: Tamiya TA05 and TA06 bodies fit well
          Paint of modeler's choice
          Building and track equipment

SPECS:    Length: 15" (380mm)
          Width: 7.4" (189mm)
          Wheelbase: 10.2" (260mm)
          Front and Rear Tread: 6.5" (165mm) distance between outer edges of
            tires side-to-side
