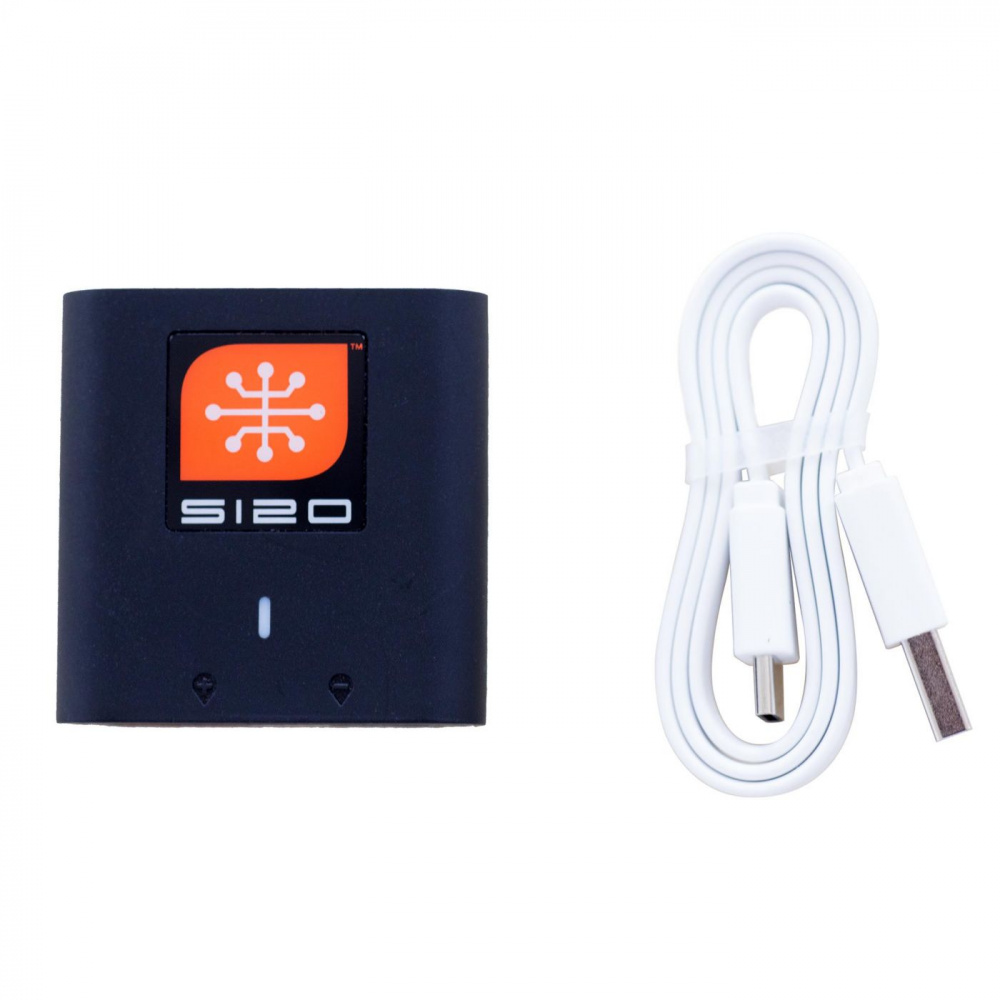

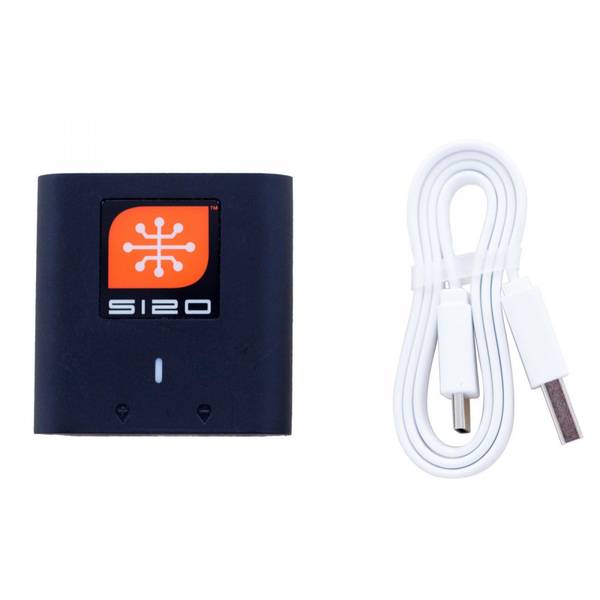

What's in the Box?

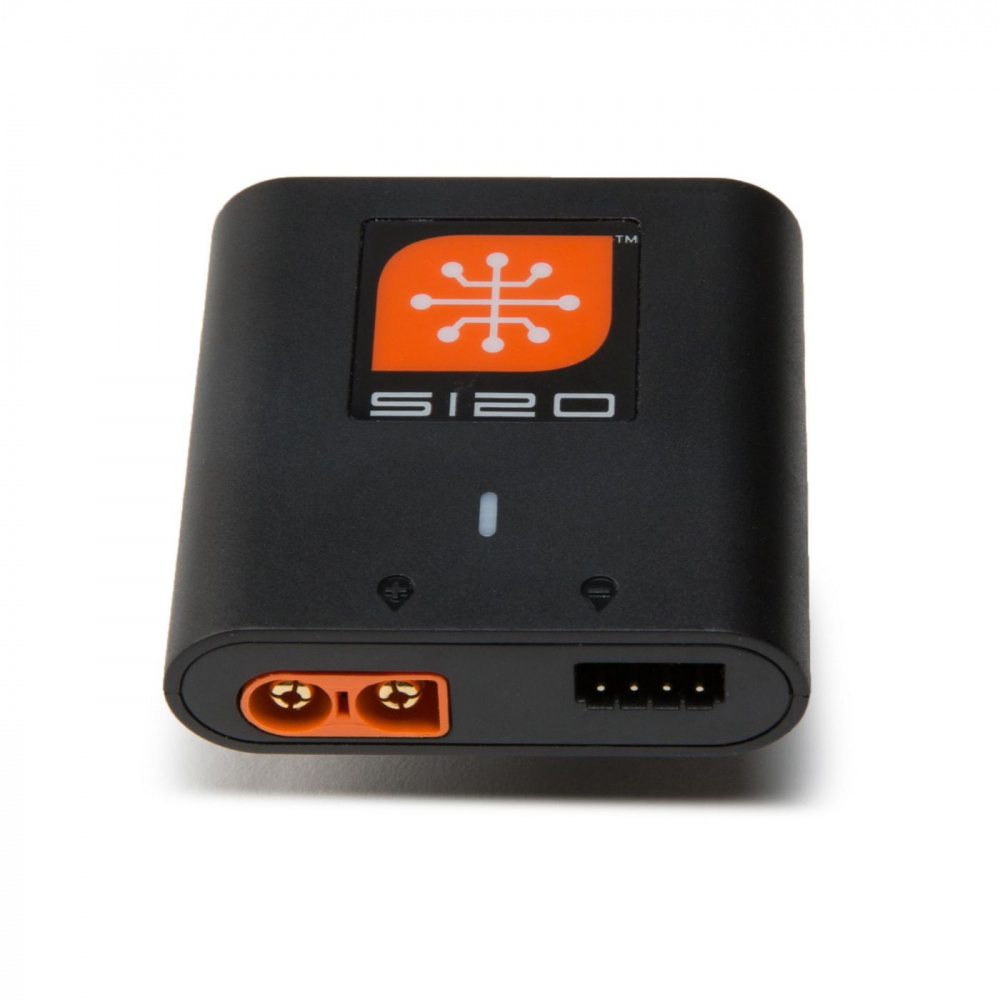

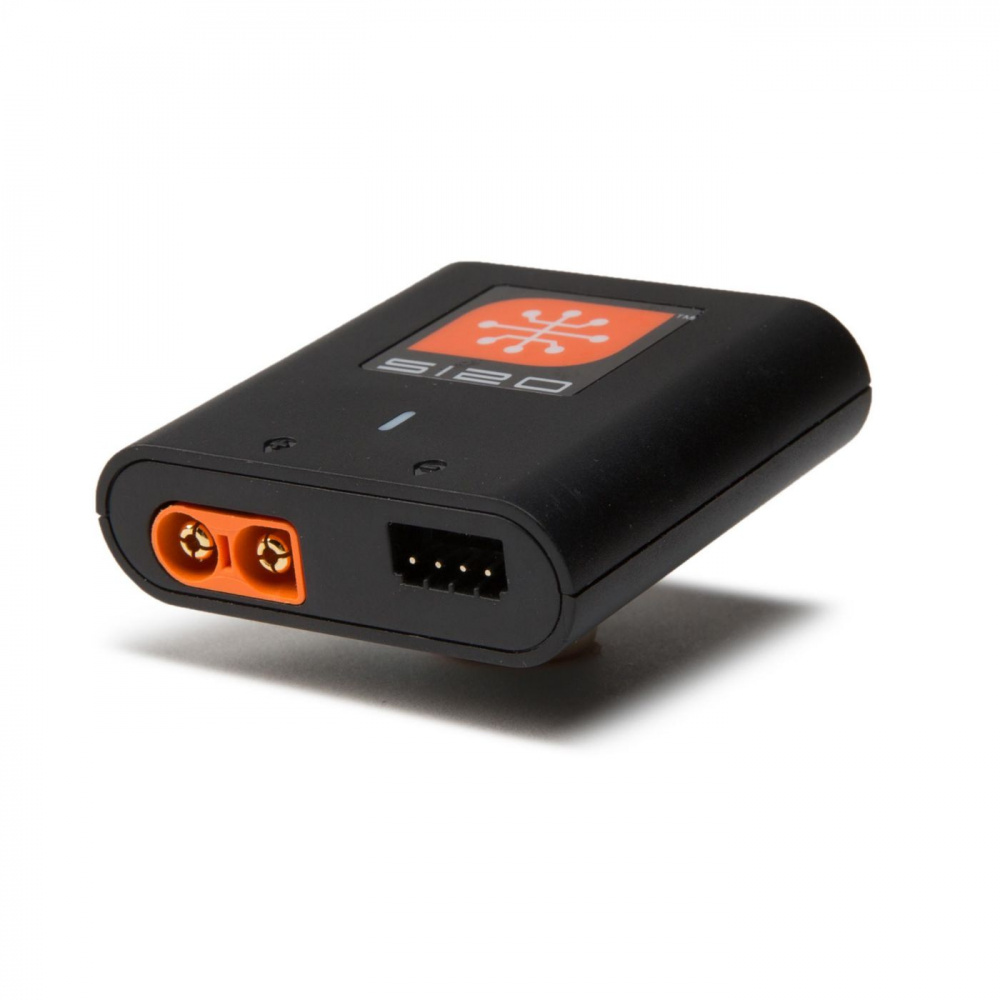

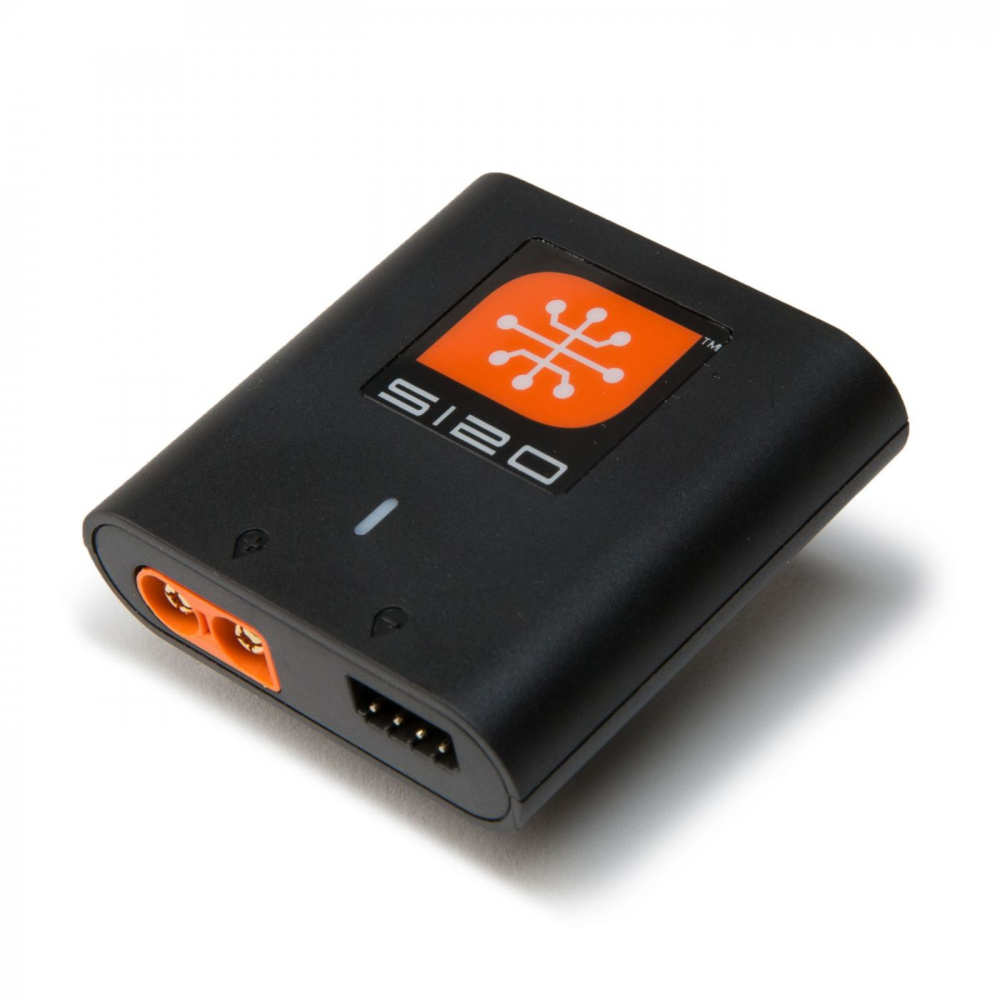

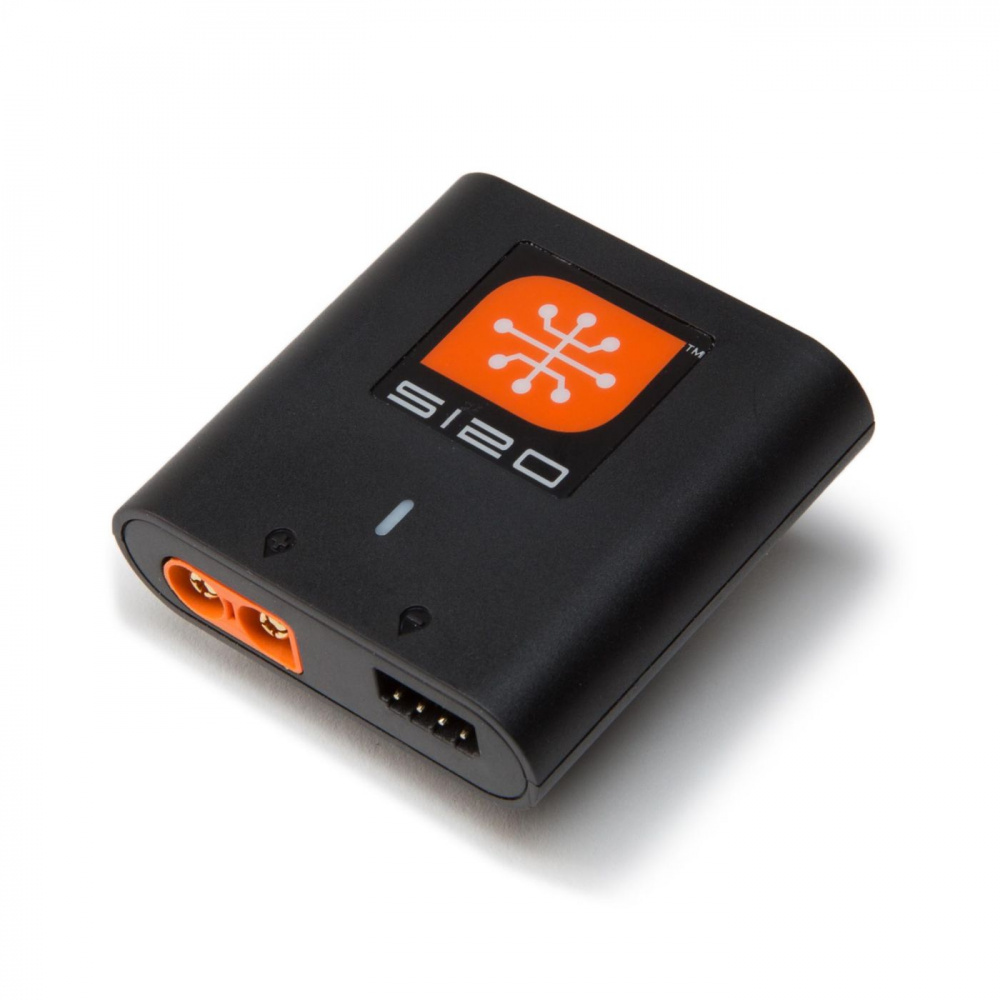

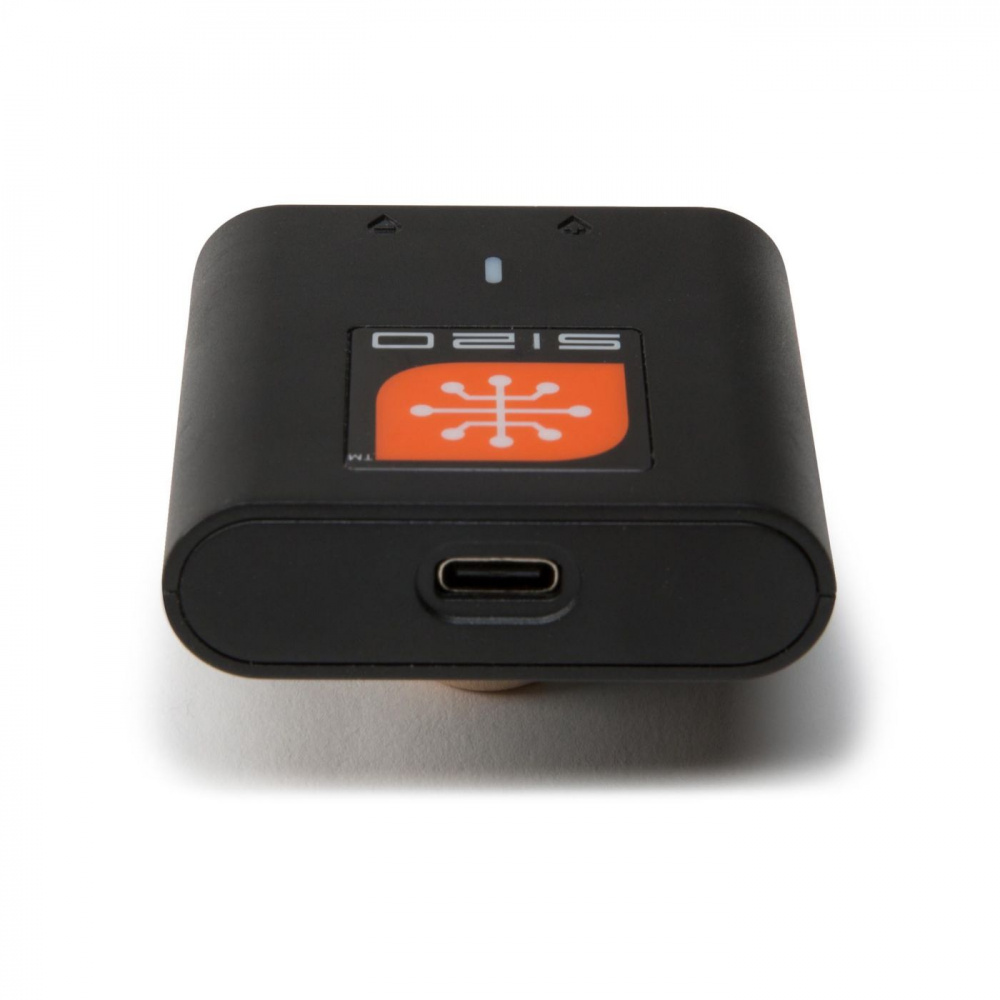

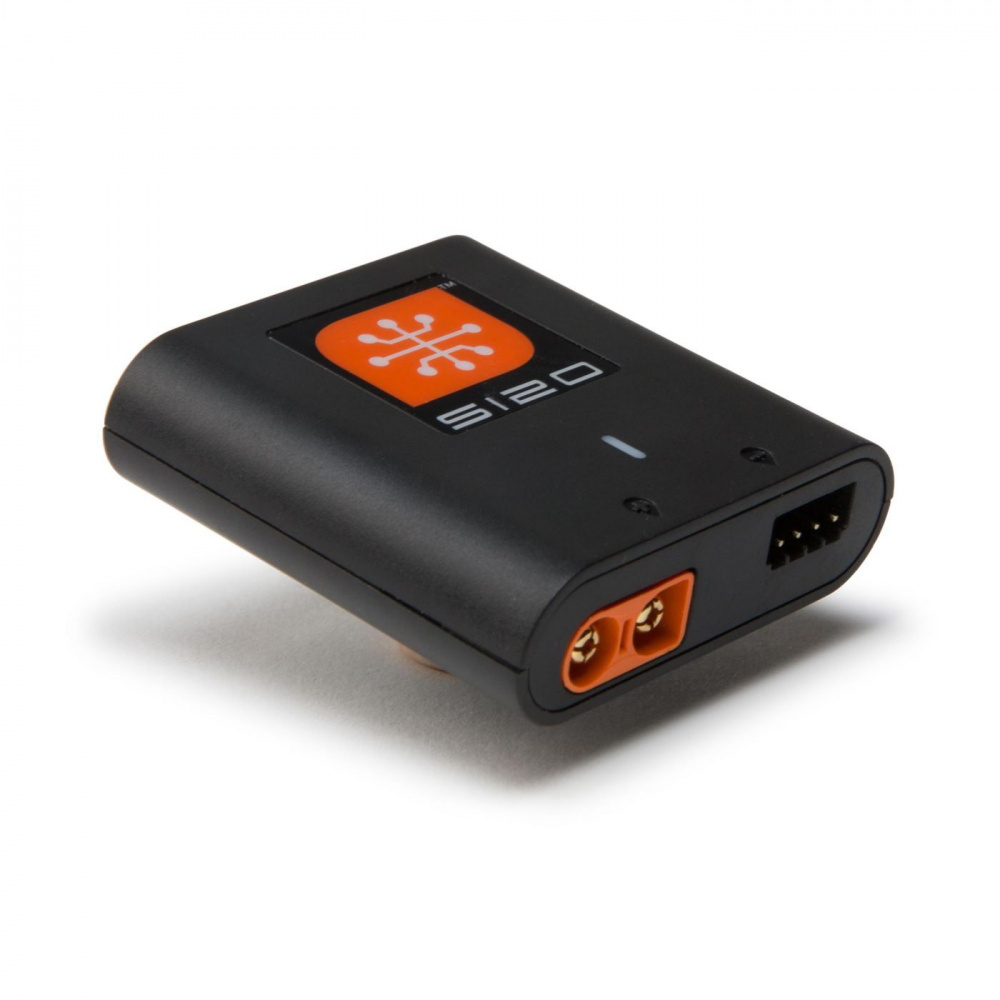

The Spektrum™ S120 USB-C Smart Charger features Spektrum Smart Charging technology in a small and simple to use platform. This 20W charger easily charges compatible Spektrum Smart batteries conveniently from almost any USB power source. When a Spektrum Smart battery is connected, the S120 immediately detects the battery information and automatically begins to charge. Spektrum Smart charging is designed to be safe, intuitive and convenient so you can simply look forward to putting your batteries back to action!
Charging is easy with the Spektrum S120 USB-C Smart Charger. Simply use the included USB cable to supply power to the S120 Smart Charger from a USB power source (not included). Plug in your Spektrum Smart battery (Lipo versions require the balance lead to be connected as well as the main lead) and the charger will automatically start charging. Monitor your charging status via a blinking purple or yellow LED. Once your charging is complete the LED will glow green.
*Please note that the Spektrum S120 Charger will ONLY CHARGE 2-3 cell SPEKTRUM SMART LiPo/LiFe/LiHV and 6-7 cell SMART NiMh Batteries*
Spektrum S120 USB-C Smart Charger 1x20W SPMXC1020 is compatible with BLH5900, EFL3700, EFL3750, HBZ3800, HBZ3850
Specs
| Application: | Only compatible with Spektrum SMART batteries |
| Battery Type: | 2-3 Cell LiPo, 6-7 cell NiMH, 2-3 Cell LiFe, 2-3 Cell LiHV |
| Height: | 0.55" (14mm) |
| Input Voltage: | 5-12VDC USB charge port, USB type C cable included, power supply required |
| Integrated Balancing: | Y - Internal Balancer & External Adapter |
| Length: | 2" (51mm) |
| Maximum Charge Rate: | 4.35V per cell x3 for a 3 cell LiHV, 2A |
| Output Connector: | IC3 |
| Selectable Charge Rate: | No |
| Type: | USB Charger |
| Width: | 2" (51mm) |
In October of 2004, Horizon Hobby rocked the RC world by unveiling one of the most revolutionary products to ever hit the market: Spektrum 2.4GHz Digital Spectrum Modulation Technology. Similar technology in the computer and telephone industries has eliminated interference, increased signal resolution, and provided a stronger link between the base units and the transmitting units. Since then, racers and now pilots have embraced Spektrum technology, and the future is even more promising.
