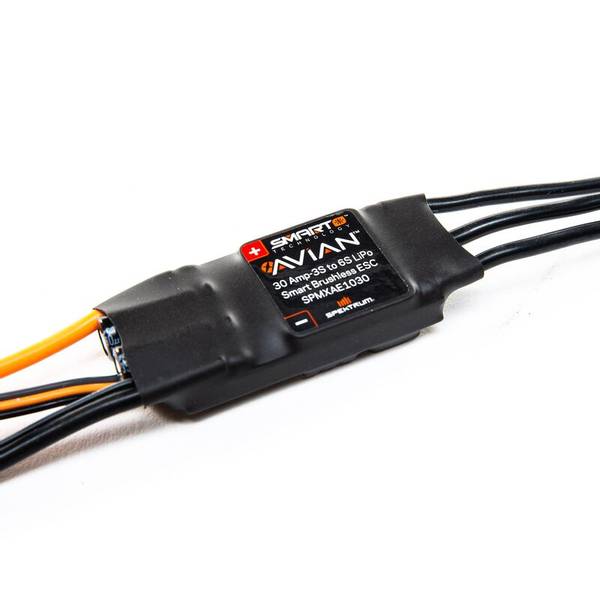

Spektrum 1030 Avian 30 Amp Brushless Smart ESC, 3S-6S

Art.nr: SPMXAE1030
495,-

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

På lager: 2

Avian 30 Amp Brushless Smart ESC, 3S-6S

Product Features

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Multiple options for easy programming:
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
    • Throttle stick programming
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Heat dissipating design
  • Dual BEC power connectors
  • Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  • Limited 1-year warranty

Product Overview

Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Needed to Complete

  • Spektrum™ Aircraft Receiver
  • Spektrum Smart Technology LiPo Battery
  • Spektrum Transmitter

What's in the Box?

  • (1) Spektrum™ Avian™ Smart ESC
  • (1) Spektrum Smart sticker sheet
  • (1) Product Manual

Video Overview



Spektrum™ Smart Technology Video Overview



ONE-WIRE TELEMETRY

ONE-WIRE TELEMETRY

One-Wire Telemetry

No need to connect multiple wires, sensors, modules, and links. With Avian™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including current, voltage, cell balance, temperature and RPM.



EC3™/EC5™ BACKWARDS COMPATIBLE
EC3™/EC5™ Backwards Compatible

Avian™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3™ and EC5™ connectors are also compatible with Avian ESCs for basic operation and ESC telemetry.



SMART TECHNOLOGY BATTERY DATA
Smart Technology Battery Data

When used with a Spektrum™ Smart LiPo battery, your Avian™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!



MULTIPLE PROGRAMMING OPTIONS
Multiple Programming Options

Multiple programming options are available. Throttle stick programming can be used with nothing more needed. Using the Smart ESC Programming Box, you can easily change settings at the field to suit flying conditions. An easy-to-use Smart Link USB Updating and Programmer app is also available.



FAST, POWERFUL M4 PROCESSOR
Fast, Powerful M4 Processor

The Avian ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.



Product Specifications

Auto Cutoff Yes
Battery Connector IC3
Battery Input Lead 3.9" (100mm) 14AWG
BEC Yes
BEC Continous Current 7A
BEC Maximum Burst Current 20A
BEC Type Switch
BEC Voltage 6V/7.2V adjustable
Brakes Yes
Forward Yes
Input Voltage 3S - 6S LiPo
Low-Voltage Cutoff Programmable Yes
Maximum Burst Current 45A
Maximum Continuous Current 30A
Motor Connector 3.5mm Bullet
Motor Output Lead 3.9" (100mm) 14AWG
Overload Protection Yes (Thermal protection as well)
Part Type Electronics
Product Height 0.5" (13mm)
Product Length 2.4 (62mm)
Product Weight 1.8oz (50g)
Product Width 1.1" (28mm)
Programmable Yes
Reverse No
Search Keywords SPMX_ESC_AIR
Smart Technology Smart ESC
Spektrum

Spektrum


In October of 2004, Horizon Hobby rocked the RC world by unveiling one of the most revolutionary products to ever hit the market: Spektrum 2.4GHz Digital Spectrum Modulation Technology. Similar technology in the computer and telephone industries has eliminated interference, increased signal resolution, and provided a stronger link between the base units and the transmitting units. Since then, racers and now pilots have embraced Spektrum technology, and the future is even more promising.
