Savox SV-1272SG Servo 30Kg 0,10s HV Alu Coreless Steel Gear

Art.nr: SV-1272SG
959,-

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Savox
På lager: 2

SAVÖX SV-1272SG - Monster Torque High Voltage Performance Servo
This is the Savox SV-1272SG Monster Torque, High Voltage Digital Servo. A very powerful servo in a standard case, the SV1272SG servo fits many applications.

Features:

  • High Voltage
  • Super strong and precision made unique steel gears provide durability and survive heavy use
  • Extreme amount of torque in a standard case
  • Ideal for large scale aircraft, 1/8 off road buggies and trucks and Monster Trucks


Specifications:

  • Torque @6V: 23kg/cm
  • Torque @7.4V: 30kg/cm
  • Speed @6V: 0.13 sec/60 deg
  • Speed @7.4V: 0.10 sec/60 deg

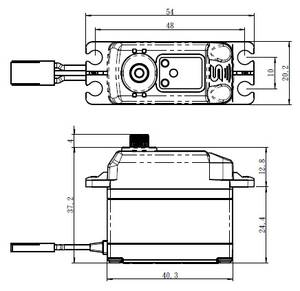

  • Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
  • Weight: 63g


Technical Details:

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 120mA @6.0V, 150mA @7.4V
  • Stall Current (at locked): 4000mA @6.0V, 5000mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
