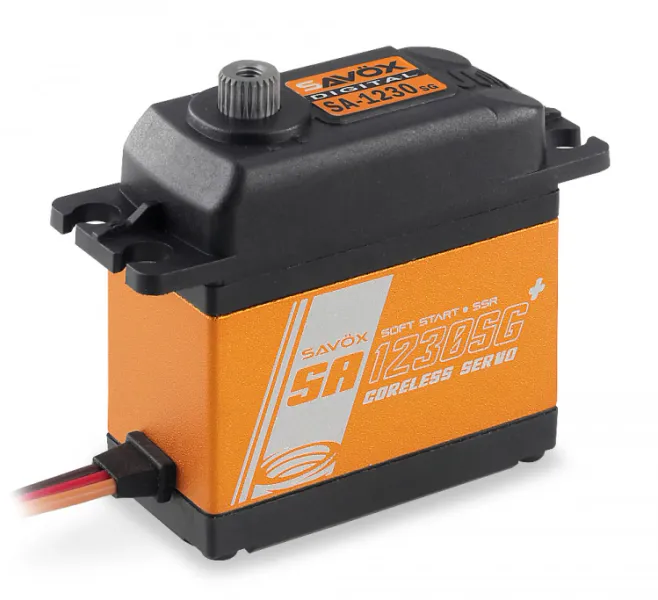

SAVÖX SA-1230SG PLUS - Coreless Steel-Geared High Torque Servo
The Savox SA-1230SG-PLUS Monster Torque Steel-Gear digital servo is the servo that is ideal for those requiring extra torque, but not using high voltage as a power source.
Features:
- New: Soft Start
- New: Sanwa SSR compatible
- Extremely strong unique steel gears ensure long-life and durability
- Ideal for larger aircrafts
- Slightly taller case design
Specifications:
- Line: ORIGINAL LINE
- Application: AIRPLANE
- Servo Size: Standard
- Operating Voltage: 4.8V-6.0V
- Speed @ 4.8V: 0.2 s/60°
- Torque @ 4.8V: 30.0 kg/cm
- Speed @ 6.0V: 0.16 s/60°
- Torque @ 6.0V: 36.0 kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Coreless
- Case Type: Hybrid (Aluminum/Composite)
- Protection: Water Resistant

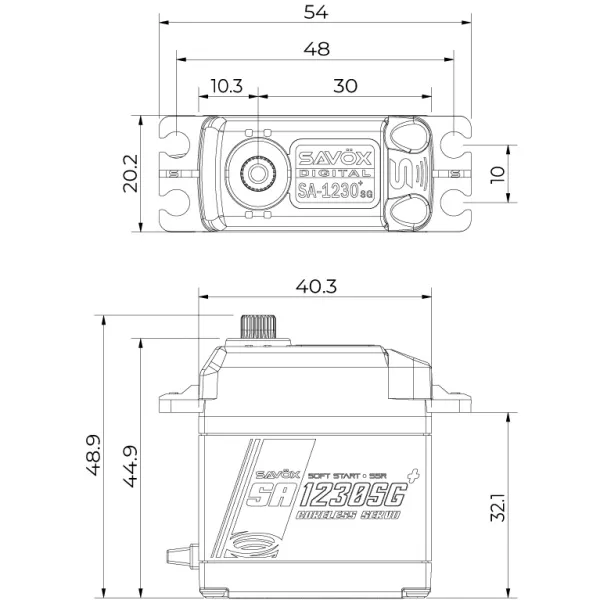

- Dimensions (LxWxH): 40.3x20.2x44.9mm
- Weight: 79g
- Gear Type: Special Steel
- Compatibility: Sanwa SSR
- PCB Board: 12bit 4096, ADC, Softstart, Lock protection
- Horn Gear Spline: 25T (Φ6)
- Rotating Direction: Counterclockwise (when 1000→2000 μsec)
- Max Travel: ~130° (when 900→2100 μsec)
- Operating Travel: 100° (when 1000→2000 μsec)
- Neutral Position: 1500 μsec
- Bearing: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 22AWG
- Cable Length: 200 ±5mm
- Connector: JR
- Stall Current @ 4.8V: 4200mA
- Operating Current @ 4.8V: 220mA
- Stall Current @ 6.0V: 5300mA
- Operating Current @ 6.0V: 250 mA
- Idle Current: 5 mA
- Dead Band Width: 3-5 μsec
- Frequency Range: 50-360 Hz
- Control System: Pulse Width Modification
- Operating Temperature: -10°C to 50°C
