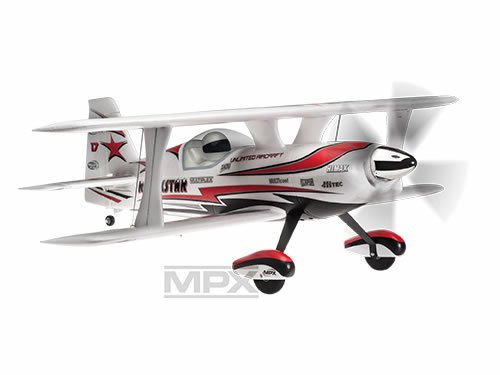

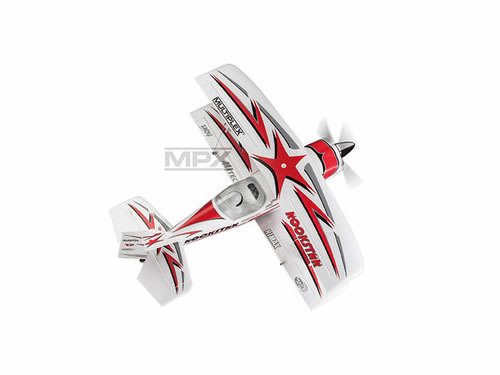

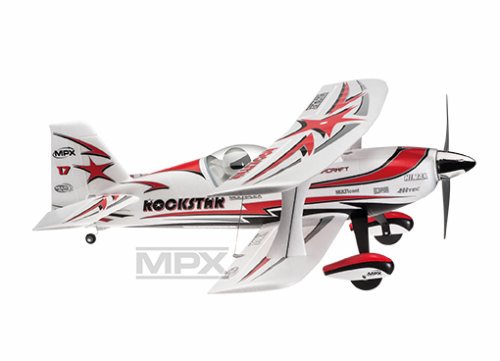

This is the Radio Controlled, Brushless Electric Powered, Receiver Ready Rockstar Biplane from Multiplex.
FEATURES
Construction: Elapor foam, carbon fiber and M-frame technology
Wings: Quick release retainers, fiberglass tubular spar
Ailerons: Prehinged, dual servo controlled
Electronic Speed Control: 60A MULTIcont BL-60
Motor: Himax 4220-0620 brushless
Motor Mount: Aluminum
Servos: Four Hitec HS-82MG metal gear
Canopy: Tinted, detailed cockpit
Propeller: 14x7
Spinner: 2.75" (70mm) diameter chrome plated plastic
Landing Gear: One-piece prebent aluminum
Wheels: Main, 2.8" (71mm) foam construction, 1" (25.4mm) tailwheel
INCLUDES
Assembled Receiver Ready Rockstar Bipe, ESC, Brushless Motor, four Servos, Propeller, Spinner
REQUIREMENTS
Radio: 5-6 channel
LiPo Battery: 14.8V (4S) at least 2600mAh
Charger: Compatible with selected battery
LiPo Charging Bag, Field and maintenance equipment
SPECIFICATIONS
Wingspan: 41" (1050mm)
Overall Length: 42" (1060mm)
Weight: 63oz (1800g)
Wing Area: 743 sq in (48 sq dm)
Wing Loading: 12.45 oz/sq in (38 g/sq dm)
Center of Gravity (CG): 3.9" (100mm) back from leading edge of top wing measured at the fuselage
Control Throws:Classic Aerobatic 3D Aerobatic
Rudder: 1.6" (40mm) 60% EXPO 2.5" (65mm) 60% EXPO
Elevator: 1.6" (40mm) 70% EXPO 2.2" (55mm) 70% EXPO
Ailerons: 0.67" (17mm) 40% EXPO 0.87" (22mm) 50% EXPO
COMMENTS
This model is NOT made of styrofoam and it is not possible to glue the material using white or epoxy glue. Medium CA glue used with an activator is the only method of gluing recommended by the manufacturer.
