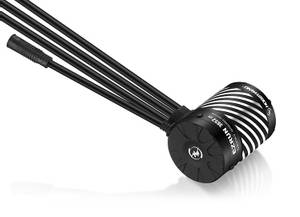

EzRun 3652 G3 Brushless Motor 3300KV

IP67
2-3S LiPo
1/10

Sensorbasert børsteløs motor som blant annet passer 1/10-biler. Denne ESCen skal brukes på 2-3S LiPo. Anbefales i bruk sammen med Hobbywin MAX10 G2 ESC. Leveres med ferdigloddet gullkontakter.


Spesifikasjoner

• The new generation adds performance.
• The evolution of a sensored motor, increases performance.
• The EzRun 3652/3665 SD G3 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve motor temperature protection and perfectly matches the EzRun MAX10 G2 ESC.

Features:

• Chip built in the motor, when matched with Hobbywing EZRUN MAX10 G2 esc, it not only has perfect compatibility, the ESC can automatically identify the motor and build a pure/full sensor mode power system, providing better manipulating performance and more delicate manipulating feel.
• Compared with the previous generation motor, the output power and efficiency are increased by more than 3%. Under the same load, the motor temperature is effectively reduced.
• The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.
• CNC machined aluminum housing, high purity copper windings, advanced rotor structure, 0.2mm silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.
• The innovative new sensor interface and rubber cover bearing have better waterproof and dust-proof effect than the traditional sensor motor.

Powerful hardware configuration, efficiency is greatly improved
The high-precision Hall sensor components ensures that the rotor position output is always accurate and consistent, achieving excellent linearity and a great throttle control. The EzRun 3652/3665 G3 motor adopts a high precision bearing that is waterproof in the front end of the motor. The rear end of the motor uses precision iron cover with a smaller structure to improve the capacity, and at the same time, provides a higher bearing speed while keeping resistance low. The operation is smoother and more reliable.


Compared to the G2 motor:

• The overall efficiency is increased by 3%
• More effective while the maximum output power has increased by 5%
• The motor temperature is greatly reduced under the same load conditions
• The stable power and high output of the motor, makes throttle control for maneuvers (power wheelies, straight line power, and clearing
• jumps) much easier.

Design, quality materials, durable
All the materials used on the EZRUN 3652/3665 G3 motor (Motor casing, bearings, ultra-thin silicon steel sheets, high temperature-resistance copper wire, explosion-proof rotor, high-tolerance alloy shaft) are carefully selected and approved by our in-house engineers. Hobbywing is serious in providing users with an extraordinary performance for a long period of time.


The motor adopts a modular detachable structure design for easy disassembly and daily maintenance.
This helps to prolong the lifespan of the motor and maintaining the efficiency of the motor simple.


Applicable to All Weather & Track Conditions
The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.


Specs:

• Scale: 1/10
• Type: Sensored/Brushless
• Pole Count: 4
• KV Rating: 3300
• LiPo Cells: 2-3S
• No-load Current: ≤3.9A
• Diameter: 37mm
• Length: 53mm
• Shaft Diameter: 3.17mm (1/8”)
• Weight: 228g
• Front Bearing: D13xD5xT4mm
• Rear Bearing: D11xD5xT5mm
• Applications: 1/10; On-road/Off-road, Short Course Truck (Light-duty)
