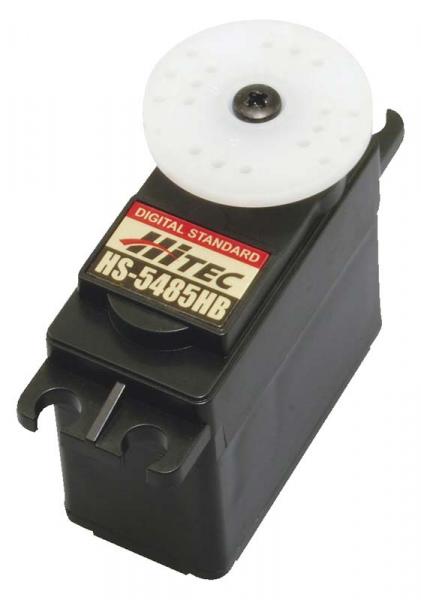

This is a Hitec Programmable Standard Digital Servo
with Hitec "S" Type Connector.
FEATURES: Four heavy duty Karbonite gears
Top ball bearing
Programmable Digital
Designed for .20-.60 Airplanes, Steering & Throttle Servo, and
Trucks and Boats
INCLUDES: One servo with pre-installed round (disk) servo horn
Four grommets
Four brass eyelets
Four round, flanged, phillips head screws 1.5 x 14mm
One adjustable servo horn
One large X servo horn 1.7" (43mm) end to end
One small X servo horn 1.2" (30mm) end to end
One straight servo horn 1.3" (33mm) end to end
SPECS: Speed: 0.20sec/60 degrees at 4.8V
Torque: 5.2 kg-cm (72 oz-in) at 4.8V
Length: 39.8mm (1.57")
Width: 19.8mm (0.78")
Height: 38.0mm (1.49")
Weight: 45g (1.59oz)
