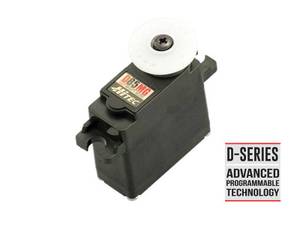

Hitec D-85MG Mighty Micro Servo
Engineered with our state-of-the-art D-Series technology, this “micro but mighty” servo is an upgrade from the popular HS-5085MG. With soft-start enabled circuitry, 4096 high-resolution and a long-life potentiometer, the D85MG allows for smooth and decisive movement and accuracy. Programmable application-specific parameters provide the ultimate in maximum servo performance.
- Ideal for 3m gliders; < 40 oz. 3D airplanes; < 70 oz. scale planes and 1/16 or smaller surface vehicles (no internal combustion engines, electric only)
D85MG Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.17 ~ 0.13 |
| Maximum Torque Range oz. / in. | 50 ~ 60 |
| Maximum Torque Range kg. / cm. | 3.6 ~ 4.3 |
| Current Draw at Idle | 3 mA |
| No Load Operating Current Draw | 290 mA |
| Stall Current Draw | 2,150 mA |
| Dead Band Width | 2 µs |
| Physical Specifications | |

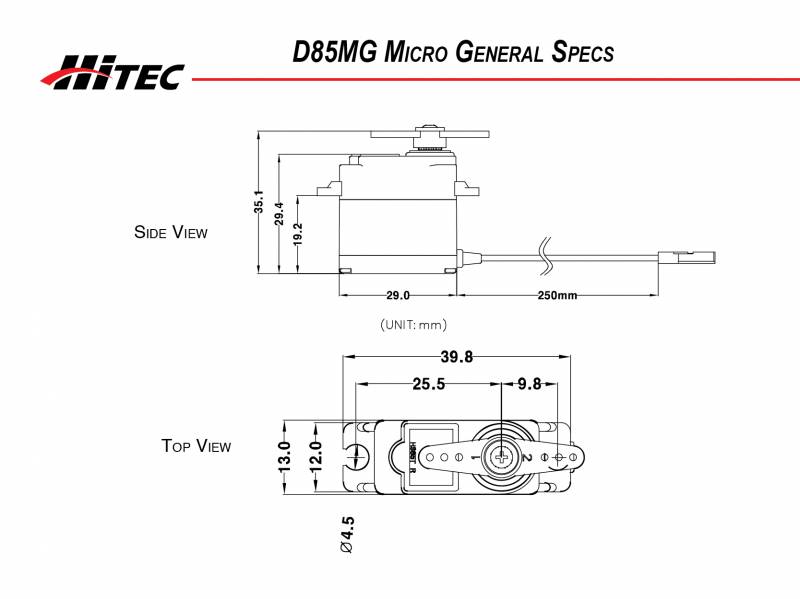

| Dimensions (Inches) | 1.14 x 0.51 x 1.18 |
| Dimensions (Metric) | 29.0 x 13.0 x 30.0 |

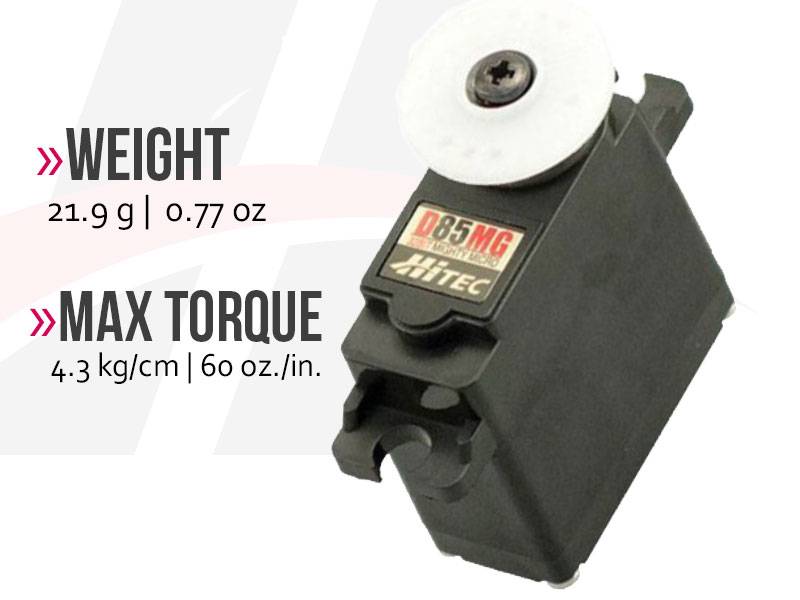

| Weight (Ounces) | 0.77 |
| Weight (Gram) | 21.9 |
| Circuit Type | 32bit Programmable Digital |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Metal |
| Bearing Type | Top Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 28 / 20 |
| Radio Control Applications | |
| Parkflyer | < 50 oz. |
| Sport Plane | 42 - 50 oz. |
| Sailplane | < 2 meters / DLG |
| 3D Performance | N / A |
| Scale | N / A |
| Electric Helicopter | N / A |
| Gas Helicopter | N / A |
| On Road | 1/16th |
| Monster Truck | N / A |
| Buggies | 1/16th |
| Truggies | N / A |
| Short Course / Truck | 1/16th |
| Crawlers | N / A |
| Sail Boat | N / A |
| Power Boat | 1/16th |
