Produktinformasjon

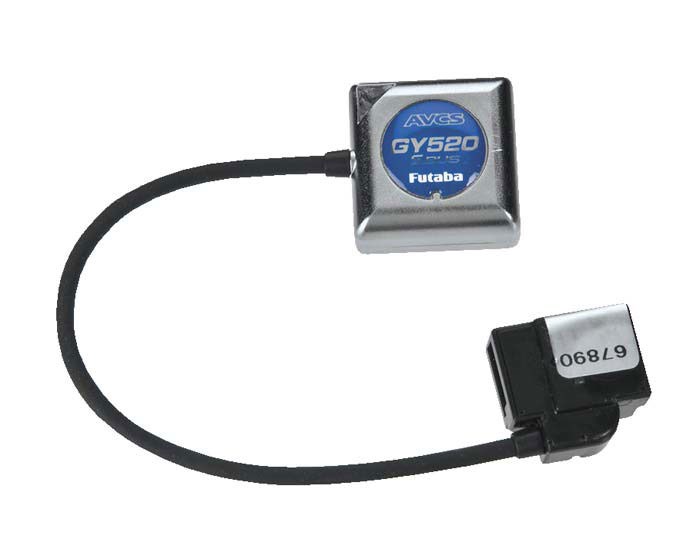

Futaba GY520, meget liten heading hold gyro fra Futaba. Dette er Futabas nyeste gyro og den er så liten at den kan brukes i alt fra 250 helikopter til store bensinhelikopter. Gyroen kan brukes med de fleste type servoer da den har innstilling for 1520uS og 760uS mode.
- Ultra small and light weight gyro contained in one unit-no separate sensor and control unit
- Utilizes a high speed advanced PID (Proportional-Integral- Derivative) control algorithm
- Latest MEMS (Micro-Electro-Mechanical Systems) allows complete control system on one chip
- Delivers superior performance with analog servos and excels with digital servos
- F3C and 3D mode selectable, six programmable parameters
- Operates at very high speed; 280Hz in the 1520uS mode and 506Hz in the 760uS mode
- Programmable through single button and multi-color LED or through a PC using Futaba CIU-2 USB adapter
- Registered AVCS (Angular Velocity Control System) architecture achieves unmatched tail holding ability
- Size: 0.82 x 0.82 x 0.43" (20.8 x 20.8 x 11mm)
- Weight: 0.243 oz (6.9g)
- Voltage Range: 3.8 - 6.0V DC
- Control System: Advanced PID control
- Current Draw: 40mA (without servo)
- Sensor: MEMS vibrating structure gyro
- Operating Temperature: 14°F - 113°F (-10°C - +45°C)
- Sensor Rate Range: +/- 800° sec
- Angular Velocity Range: +- 800 deg/sec
