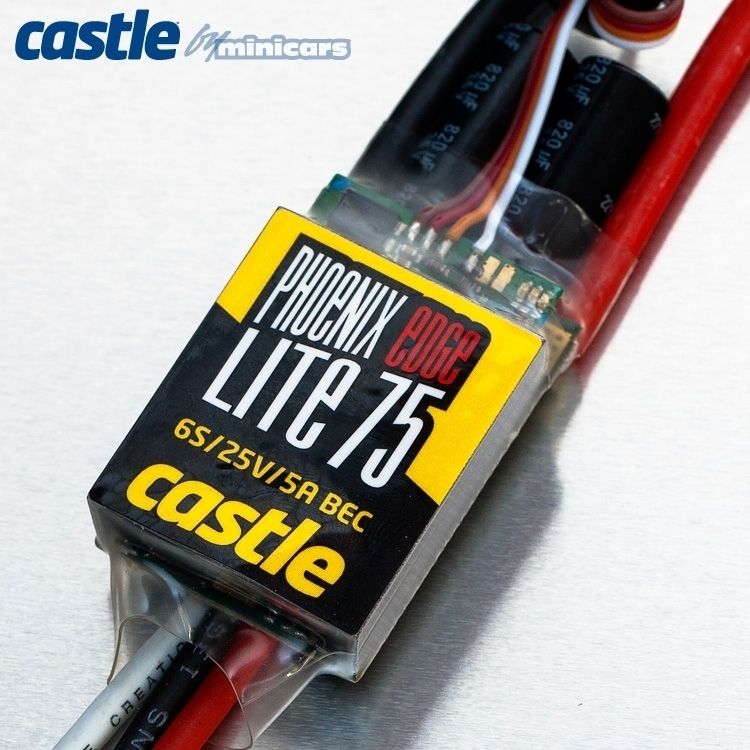

Put your power system on a diet with the Phoenix Edge Lite series of ESCs. With the same amazing features and functionality of the Edge series, the Edge Lite offers a slight weight reduction for applications that are tight for space or weight. Simply put, the same brawn with less body - Phoenix Edge Lite.
With the debut of the Phoenix Edge series of ESCs the next evolution in speed controller technology has arrived. The Edge series introduces a user programmable auxiliary wire capable of functions modelers have only dreamed of, until now. The white auxiliary wire can be used for helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an “unexpected landing”, act as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included) or as a receiver arming lock. Combined with the data logging capability the Edge series of controllers offer, users can enjoy unparalleled versatility.
The Phoenix Edge series is intended for use in helicopters ranging from 450 to 800 size, and fixed wing aircraft up to 1.20 size and larger. As always, the Edge series of controllers offer industry-leading software functions, data logging, and USB programming capability via Castle Link USB adapter.
Technical Specs:
Size and Weight:
Miscellaneous:
*RC HOBBY APPLICATION RATING: 75 amps with appropriate cooling. Phoenix Edge Lite controllers are designed without a heat-sink for applications with extreme air-flow, such as EDF planes, or applications with average current requirements much less than peak current requirements. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature.
**Peak indicates amperage sustainable for 0.5 seconds – long enough for most servos’ current draw transients. Your setup may vary. Always confirm servo current draw before the first flight of the model.
Castle Creations makes the best electronic speed controllers in the industry, possibly the world! Our engineers have spent countless hours integrating features and firmware that no other manufacturers can match.
Speed Controllers enabled with SmartSense use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with electronic timing. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at each. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This combines the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless running. Your motor will produce more power and less heat.
