Blade Fusion 360 BNF Basic

Art.nr: BLH5250
6.395,- 6.595,- -3%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

På lager: 1

Blade Fusion 360 BNF Basic



Key Features

  • BNF Basic Convenience
  • 2221 - 1800Kv Brushless Outrunner Motor
  • Spektrum™ 6250 HX Flybarless Controller With Two Remote Receiver Ports
  • 6S Power System Provides Ballistic 3D Performance
  • Hobbywing 60A Platinum ESC With New IC3 Connector
  • Spektrum 3055 and 3065 Servos
  • Optimized Servo Geometry
  • Fiberglass Canopy and Painted Tail Fin
  • Carbon Fiber Landing Gear
  • Optimized and Lightened Main Frame
  • Forward Programming
  • CNC Main Blade Grips
  • Stunning Black Anodized Hardware
  • Large Tail Boom and New CNC Tail Case
  • High Visibility Fin and Trim Scheme
  • Improved Main Rotor Blade Design

Needed to Complete

  • Full-range 6+ channel Spektrum™ 2.4GHz DSM2®/DSMX® Transmitter
    • Gen2 or iX12 required for Telemetry and Forward Programming Features
  • 22.2V 6S 1300-1800mAh 30C LiPo Flight Battery
  • Suitable LiPo Balancing Charger

What's in the Box?

  • (1) Factory Assembled Blade Fusion 360 helicopter with:
    • (1) 350mm Carbon Fiber Main Rotor Blade
    • (2) 65mm Composite Plastic Tail Rotor Blades
    • (1) Spektrum 6250HX Flybarless Flight Controller
    • (1) Spektrum 4649T 2.4GHz DSMX® Receiver with Telemetry
    • (1) Brushless Outrunner Motor, 1800Kv
    • (1) Brushless 60A ESC
    • (3) Sub-Micro Digital Metal Geared Heli Cyclic Servos
    • (1) Sub-Micro Digital Metal Geared Heli MG Servo
  • (1) Product Manual
  • Everything expertly tuned by our team of pilots and developers!

Overview

Expanding on the Fusion line of helicopters, the Blade® Fusion™ 360 redefines BNF performance in a 300-sized machine. With the popular 360 size, Blade has taken a fresh approach in redeveloping the Fusion 360 by adding high-end hardware, all carbon fiber and aluminum construction, improved power system package, and more.

Cutting-edge Spektrum™ technology is featured throughout this beast from new Spektrum 3055 & 3065 servos with Optimized Servo Geometry to the new ground-breaking Spektrum 6250 HX flybarless system. This new flybarless controller features advanced adaptive flight control algorithms, forward programming, 6-axis M.E.M.S. inertial sensor, low-latency high-speed operation, two remote receiver ports for diversity, and a vibration rejecting aluminum lower case.

Pre-installed and pre-programmed in the Fusion 360 is a HobbyWing 60A Platinum ESC ready for 6S power. The 2221-1800Kv brushless outrunner motor delivers impressive headspeeds via the helical main gear for a powerful and efficient punch that's unlike anything else in this size from Blade. The new all carbon fiber and aluminum design takes frame rigidity to another level for a rock solid flight experience. The new carbon fiber main rotor blades feature an improved aerodynamic design with increases to efficiency and power. A new oversized tail boom eliminates the need for boom supports and is crowned by a new CNC aluminum tail case improving vibration damping and performance. All this combines to give pilots one of the best flying Blade models to date!

Video Overview





6S Power House

Pre-installed and pre-programmed in the Fusion 360 is a HobbyWing 60A Platinum ESC ready for 6S power. The 2221-1800Kv brushless outrunner motor delivers impressive head speeds via the helical main gear for a powerful and efficient punch that's unlike anything else in this size from Blade. The heli also accepts a wide range of 22.2v 6S Lipo batteries from 1300 to 1800mah.

6S Power House

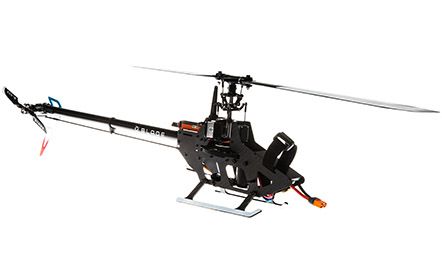

Optimized Fusion Design

The new all carbon fiber and aluminum design takes frame rigidity to another level for a rock solid flight experience. The new carbon fiber main rotor blades feature an improved aerodynamic design with increases to efficiency and power. A new oversized tail boom eliminates the need for boom supports and is crowned by a new CNC aluminum tail case improving vibration damping and performance.

Optimized Fusion Design

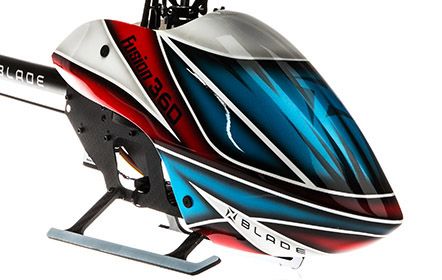

Aggressive and Attractive Trim Scheme

The Fusion 360 features a expertly painted fiberglass canopy and matching tail fin that is both attractive and purposeful. The bright color scheme is easy to see when tearing up the sky and is sure to catch the eye of everyone at the flight line.

Aggressive and Attractive Trim Scheme

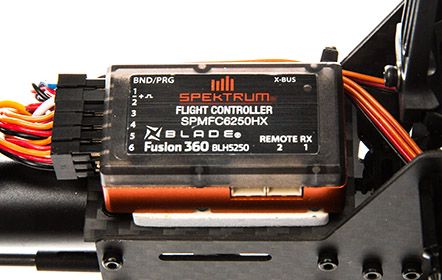

Spektrum 6250HX Flybarless Controller

Cutting-edge Spektrum technology is featured throughout this beast from new Spektrum 3055 & 3065 servos with Optimized Servo Geometry to the new ground-breaking Spektrum 6250 HX flybarless system. This new flybarless controller features advanced adaptive flight control algorithms, forward programming, 6-axis M.E.M.S. inertial sensor, low-latency high-speed operation, two remote receiver ports for diversity, and a vibration rejecting aluminum lower case.

Spektrum 6250HX Flybarless Controller





Blade Fusion 360

Specs



Approximate Assembly Time: No assembly required
Approximate Flight Time: 4 minutes
Battery: 6S 1300 - 1800mAh required
Canopy/Body Material: Fiberglass
Channels: Full range 6-channel DSM2/ DSMX transmitter required
Completion Level: Bind-N-Fly Basic
Flying Weight: 32.3oz (915g)
Height: 7.5" (190mm)
Length: 27" (685mm)
Main Blade Material: Carbon
Main Motor Type: Brushless Outrunner
Main Rotor Blade Length: 13.8" (350mm), Range: 13.8" - 14.2" (360mm)
Main Rotor Diameter: 31.3" (796mm)
Main Rotor Head Type: Collective pitch (CCPM) flybarless
Pinion Size: 11 tooth
Pinion Size (Range): 11 to 12 tooth
Servos: Swash Servos, Spektrum 3055 MG, Tail Servo, Spektrum 3065 MG
Skill Level: Level 3
Swashplate Type: 120 degree CCPM
Tail Drive: Belt Drive
Tail Ratio: 4.59:1
Tail Rotor Diameter: 6.9" (175mm)
Width: 3.5" (90mm)
