Product information "UDI R/C Crawler SUZUKI JIMNY 1/18 Green

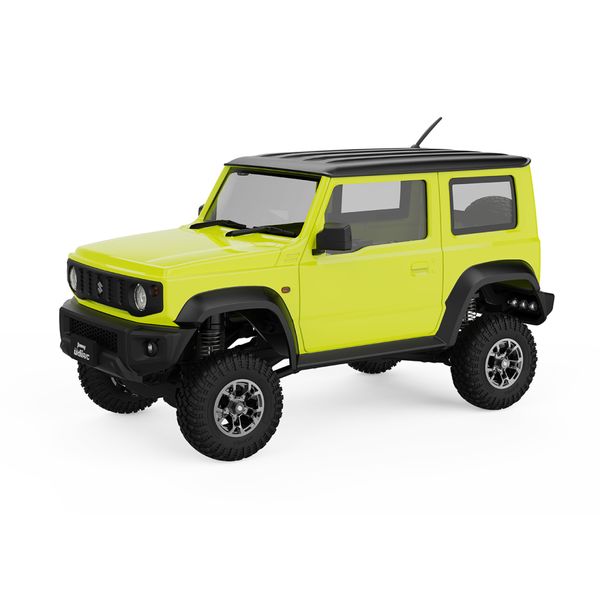

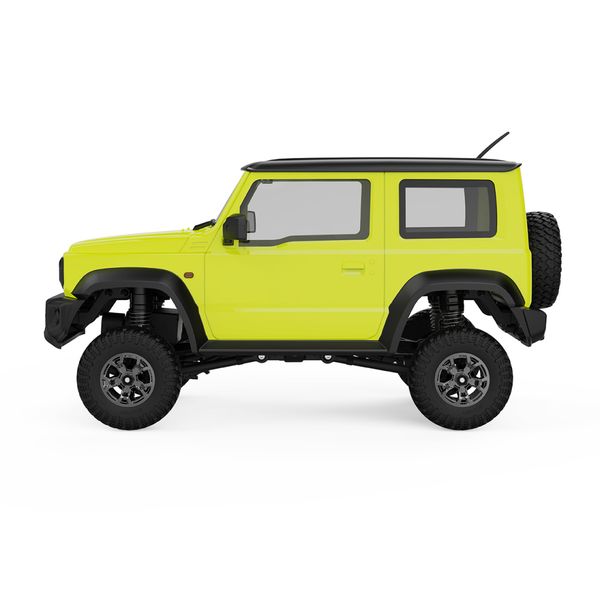

The 1/18 "Suzuki® Jimny UCX2402" by UDIRC brings true off-road character in a compact format. Officially licensed by Suzuki®, this micro crawler combines authentic design with smart technology û perfect for indoor driving or trail adventures.
With a compact length of just 198mm, the Jimny fits easily into a backpack û yet impresses with real 4WD drivetrain, a high-torque KF130WH brushed motor, and precise control. The 0.5kg digital servo and 30° steering angle allow for highly responsive maneuvers even in tight spaces.
The patented 3-speed gearbox (Drive / Neutral / Slow), made of wear-resistant metal, combined with the forward-leaning motor position, ensures optimal center of gravity and excellent climbing performance. The modular 2-in-1 unit (30A ESC & receiver) supports lighting control, crawl mode, and steering functions.
Technical Specifications
| Length: | 198mm |
| Width: | 98mm |
| Height: | 99mm (without antenna) |
| Wheelbase: | 120mm |
| Ground clearance: | 20mm |
| Weight: | approx. 258g (with battery) |
| Motor: | KF130WH brushed |
| ESC/Receiver: | 2-in-1 (30A) |
| Battery: | LiPo 2S 350mAh |
| Steering: | 0.5kg digital servo |
| Transmitter: | 2.4GHz |
Included in the Box

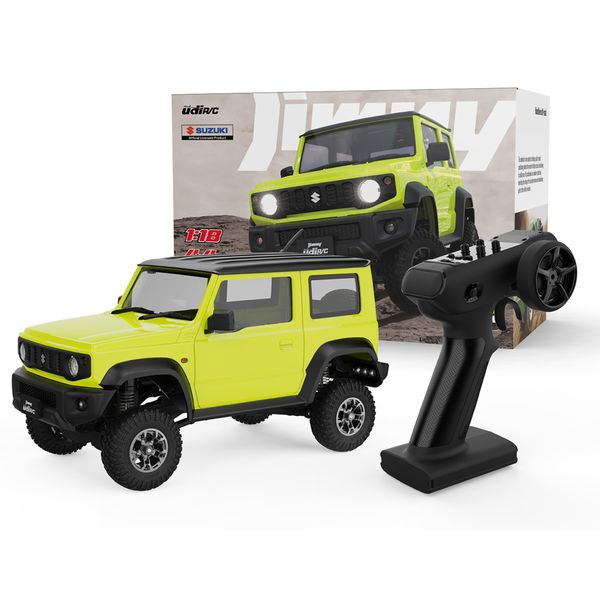

Fully assembled model (RTR), including brushed motor, ESC/receiver, digital servo, LED lighting, LiPo battery, USB charger, 4-channel transmitter, manual, and decal sheet.
