Traxxas TRX105237-4-CPR- 4-Tec Drift 2WD Ford Mustang XL-5 TQi/Link Clipless - COPPER
PRECISE DRIFTING - POWERED BY TSM
Traxxas 4-Tec® Drift delivers the ultimate experience in modern, smooth, drifting action. Advanced TSM® Drift technology makes 4-Tec Drift easy to master and endless fun on the track. Use the included Wireless Module to take advantage of three customizable and powerful drift modes in the Traxxas Link™ app for maximum control. A new rear-wheel-drive 4-Tec 200 mm platform with clipless Mustang body features an all-new front suspension tuned for optimal drift geometry with over 60° of steering angle. Take your Traxxas experience to a new level with the 4-Tec® Drift!
High-Angle Steering
4-Tec Drift Drift provides over 60° of steering angle at full lock to enable big sideways drifts and quick transitions. The front suspension is specially tuned for drifting with new steering blocks, bellcranks and a drag link optimized for maximum throw.
Customizable Drift Modes
Only 4-Tec Drift lets you choose between three customizable drift modes. Innovative TSM Drift technology replaces old-fashioned drift gyros with smooth precise control that can be fine tuned with the Traxxas Link app. New drivers can drift like a pro without specialized knowledge or skills, and advanced enthusiasts will enjoy the refined controls for even smoother performance.
Clipless Ford Mustang Body
4-Tec Drift raises the bar for durability, ease of use, and scale detail with an all-new clipless Ford Mustang body. Beautiful metallic paint contrasts the molded body details for show-stopping looks and modern Mustang styling. Body mounts integrate neatly into the molded hood vents and rear spoiler for extra reinforcement and a seamless look.
TQi Radio with Wireless Module
A Traxxas Link™ Wireless Module is included to harness the full potential of 4-Tec Drift’s powerful TSM drift modes. Use the full-color graphical interface to personalize the 3-channel TQi™ radio’s settings and unlock its advanced tuning features. Tap the handbrake button on the side to initiate rotation and begin your drift.
Hard and Soft Compound Tires Included
4-Tec Drift is designed for maximum versatility with two sets of 1.9" drift tires included in the box. Use the factory-installed hard compound tires on any hard abrasive surface like pavement or cement. The included soft compound tires provide refined drift control on polished surfaces.

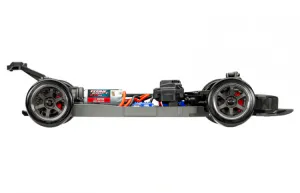

New Rear-Wheel-Drive Platform
4-Tec Drift rides on a new rear-wheel-drive platform based on the responsive 200 mm 4-Tec chassis. The front bulkhead and suspension are all new to provide optimal drift geometry and over 60° of steering angle. Drivers can take advantage of individual settings for caster, roll center, ackerman, track width, and more.
Vehicle Specs:
- Length: 463mm
- Width: 201mm
- Ground Clearance: 12mm
- Weight (no battery): 1.52kg
- Height (overall): 131mm
- Wheelbase: 257mm
- Shock Length: Short (front & rear)
- Tires: Hard compound (installed), soft compound (optional, included)
- Tire Diameter: 69mm
- Wheels (front/rear): 1.9" 6-spoke
- Wheel Width: 26mm (front) / 30mm (rear)
- Speed Control: XL-5™ electronic speed control
- Motor (electric): Titan® Drift 21T brushed
- Overall Drive Ratio: 11.13:1
- Differential Type: Spool
- Gear Pitch: 48
- Chassis Structure/Material: Composite tub
- Drive System: RWD
- Steering: High-angle dual bellcrank
- Radio System: TQi™ 2.4 GHz with Wireless Module
- Servo: Waterproof digital 2075 servo
- Skill Level: 1
- Battery Compartment: L158 x W46 x H23/26mm
Motor Specs:
- Type: High-torque brushed motor
- Length: 78mm overall length, 57mm can length
- Diameter: 36mm
- Shaft Size: 3.17mm
- Connector Type: Bullet
ESC Specs:
- Input Voltage (cells): 6-7 Cells NiMH / 2s LiPo
- BEC Voltage: 6.0v
- BEC Current: 1amp
- Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
- Thermal Protection: Thermal shutdown
- Single-button setup: Traxxas EZ-Set®
Profile Selection:
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode: 50% FWD, 100% brakes, 50% REV
What’s In The Box:
- 4-Tec Drift with XL-5 ESC and Titan Drift motor
- Quick Start Guide
- TQi™ 2.4 GHz radio with Wireless Module
- Front and rear soft-compound tires
- High quality maintenance tools
What You’ll Need:
- Battery: 4-Tec Drift requires a single 7-cell NiMH or a 2S LiPo battery.
- Charger: Traxxas EZ-Peak Live charger (2971) is recommended for easy and fast charging performance.
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
Features List:
- Officially Licensed Ford® Mustang Body
- Clipless body eliminates body post holes
- Injection molded details
- Grille, splitter, hood vents, side mirrors, and spoiler
- Replica brake discs with red calipers
- Clipless Body Mounts
- Clipless Body Mounts
- Quick and easy removal of the body
- Reinforced body mounts integrated into molded details
- Waterproof XL-5™ Electronic Speed Control
- Innovative waterproof design
- Three Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)
- Titan® Drift Motor
- 21-turn brushed 550 motor
- Internal cooling fan
- Virtually maintenance-free operation
- Fixed gear mesh motor plate
- Molded wire retainer keeps motor wires secure
- TQi™ 2.4 GHz Radio System with Wireless Module
- Includes 6511 Traxxas Link™ Wireless Module
- TQi 3-channel transmitter
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Electronic handbrake
- 5-channel micro receiver (6533X) with fail-safe security
- Patented waterproof receiver box with easy-access plug
- Traxxas Stability Management® (TSM) with 3 Drift Modes
- TSM Drift Mode
- Adjustable steering angle
- Adjustable steering reflex
- Adjustable throttle reflex
- Spinout assist
- TSM Mode
- Adjustable steering angle
- Gyro Mode
- Adjustable steering angle
- Adjust angle and reflex by up to 100%
- TSM Drift Mode
- High-Angle Steering
- Over 60° of steering throw at full lock

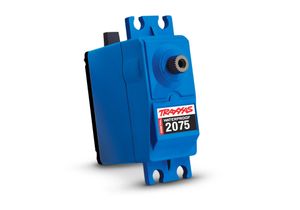

- Digital high-torque ball bearing 2075 servo
- Low Center of Gravity (Low CG) Chassis
- Positions weight low for improved handling
- Smooth underside resists drag and snags
- Modular interlocking chassis pieces
- Improves rigidity and tightens tolerances
- Allows for easy maintenance
- High Performance Suspension
- Geometry tuned for drifting
- Dual rear camber link mounts
- Adjustable droop, camber, toe, ackerman, track, & roll center
- New Rear-Wheel-Drive Layout
- Direct drive, no slipper clutch
- Rear spool with spiral-cut gears
- Smooth and quiet running
- Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- Extra-soft spring rate
- Adjustable Battery Hold Down
- Easy, secure battery installation
- Swivels to allow different height batteries
- Locks securely without pins or parts to lose
- Wheels and Tires
- Six-spoke tuner wheels
- Rubber wheel inserts hold tires securely
- Includes hard and soft compound drift tires
- Replica brake discs incorporate standard 12 mm wheel hexes
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
Vehicle Specs:
| Length: | 18.24 inches (463 mm) |
|---|---|
| Width: | 7.91 inches (201 mm) |
| Front Track: | 7.87 inches (200 mm) |
| Rear Track: | 7.87 inches (200 mm) |
| Ground Clearance: | 0.5 inches (12 mm) |
| Weight (no battery): | 3.35 pounds (1.52 kg) |
| Height (overall): | 5.15 inches (131 mm) |
| Wheelbase: | 10.11 inches (257 mm) |
| Shock Length: | Short (front & rear) |
| Tires: | Hard compound (installed), soft compound (optional, included) |
| Tire Diameter: | 2.7 inches (69 mm) |
| Wheels (front/rear): | 1.9″ 6-spoke |
| Wheel Width: | 1.0 inches (26 mm) (front) 1.2 inches (30 mm) (rear) |
