Tamiya 58713 LANCER EVOLUTION V (TT-02) – NO ESC

Art.nr: 58713
1.495,- 1.595,- -6%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Tamiya
** Ikke på lager

Ett typisk Tamiya RC byggesett  Mitsubishi Lancer Evolution V. Fantastisk kvalitet og en passform ingen andre har.
Tamiya har gjenskapt denne modellen til det ytterste, på TT-02 chassiset, som passer godt for nye og erfarne RC-byggere.
TT-02 chassiset gjør det enkelt for nye RC-byggere å montere og lære seg alt fra bygging, mekanikk, lakering osv. I tillegg til at TT-02 er en ideell plattform å starte på, kan RC-byggere utvide sitt potensial ved å legge til mange oppgraderingsdeler som er tilgjengelige for å øke bilens hastighet og ytelse. Modellen leveres med en kraftig børstemotor.

Behøves utenom som ikke er inkludert:
2-kanals fjernkontroll og mottaker
Batteripakke: 7,2V Ni-Mh eller en 7.4V Lipo pakke (Round case) med Tamiya-kontakt (ikke inkludert)
Egnet lader
Fartsregulator
Styreservo
Hurtiglim
Lakk/maling til karosseriet

Spesifikasjoner:
RC byggesett
Chassis type: TT-02
Skala: 1/10
Lengde: 44,5 cm
Bredde: 18,5 cm
Høyde: 14,5 cm
Terreng: On-road
Drift: 4WD firehjulsdrift
Batteripakke: 7,2V Ni-Mh eller en 7.4V Lipo pakke (Round case) med Tamiya-kontakt (ikke inkludert)
Motor: 540 Børstemotor (inkludert)
Body: Gjennomsiktig polykarbonat (lakk/maling ikke inkludert)

Lakk/maling anbefalt av Tamiya:
PS-12 Silver
PS-31 Smoke
TS-17 Gloss Aluminium

Fra produsenten:

Length: 455mm. Image shows painted and assembled kit.

A Masterful Evolution
The Mitsubishi Lancer Evolution was developed as a base for rally cars, with continuous development since its debut in 1992. This R/C model assembly kit depicts the 5th generation model sold from 1998 which featured a 1,770mm-width body, and achieved both Maker and Driver Championships. The powerful form of the car is captured in style by a polycarbonate body, with stickers included to decorate it. The model is based upon the TT-02 chassis.




★With front blister fenders and rear overfenders, the Lancer Evolution V body is a classic, and recreated here in polycarbonate.


★The front of the car has plenty to catch the eye, with depictions of the oversized bumper with air intakes, and bonnet with outlets.

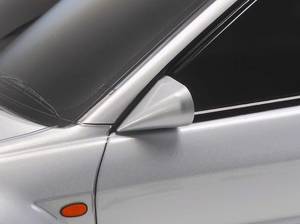

★Separately molded parts recreate side mirrors, and window masking stickers are included to help when painting.




★Stickers are used to recreate the rear emblems and license plate decoration.


★Wing and wicker bill are recreated using a separately molded component.


★Gun metal color 12-spoke wheels are paired with semi-pneumatic tires.



TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color 12-spoke wheels use treaded semi-pneumatic tires.





  ★Left: Resin ball links in the steering linkage joints make for smooth, comfortable motion.

★Right: Wheel hubs are shaped to look like brake discs.





  ★Left: Motor cover includes removable cooling duct (not attached in image).

★Right: This image gives a closer look at the rear double-wishbone suspension with friction dampers.



Specifications
★Length: 445mm, width: 185mm, height: 145mm ★Wheelbase: 257mm ★Tire width/diameter: 27/66mm (front & rear) ★Bathtub-type frame ★Shaft-driven 4WD ★Front/rear 4-bevel plastic differentials ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★Front/rear friction dampers ★Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions) ★Type 540 motor ★Electronic Speed Controller (ESC) is sold separately.



Separately Required Items
★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
