Tamiya 56362 Tungberger Pakke

** Ikke på lager
Art.nr: Tungberger pakke
Fra 24.024,-
10% Rabatt Pris uten pakkerabatt 26.786,-
  • 1

    Produkter

    Skjul detaljer

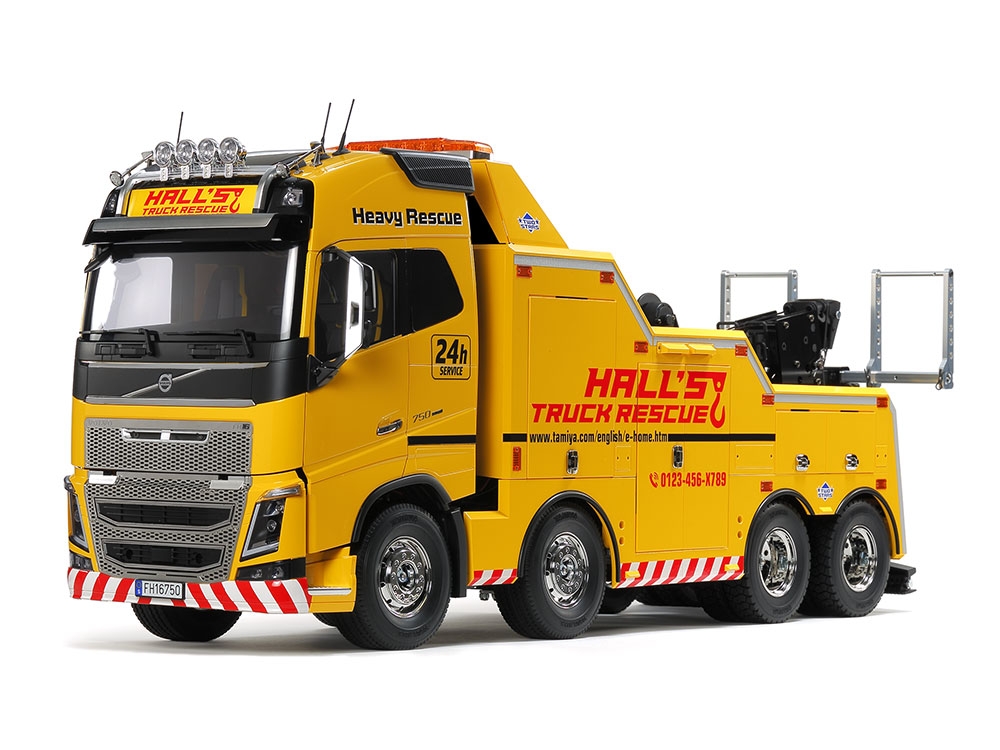

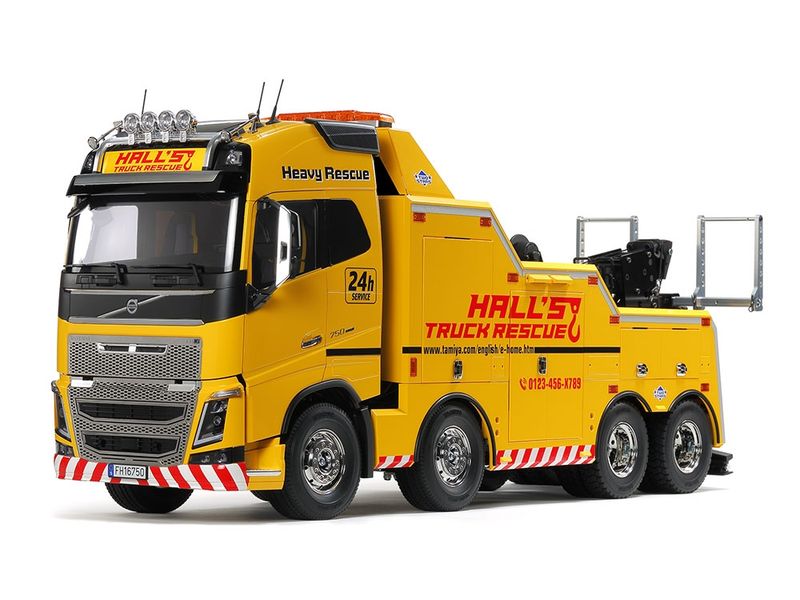

    Tamiya 56362 Volvo FH16 Globetrotter 750 8×4 TungBerger

    Mer informasjon

    Tamiya 56362 - Volvo FH16 Globetrotter 750 8×4 TungBerger

    RC VOLVO FH16 GLOBETROTTER

    Byggesett fra Tamiya

    Description:

    Tamiya’s series of ultra-realistic 1/14 scale R/C trucks has offered fun and realistic driving for the past several decades! This new kit takes that driving fun to the next level with this tow truck, which makes its living towing heavy duty vehicles such as semi-tractor trucks. It promises a completely different element of enjoyment to predecessors in the series.



    The kit seen here recreates the FH16 that is marketed by Volvo, a renowned manufacture in the global commercial vehicle market. The FH Series includes a 750hp 16.1-liter turbocharged inline-6 engine FH16 Globetrotter 750 8x4 tow truck.

    • 1/14 scale R/C model assembly kit. Length: 750mm, width: 195mm, height: 300mm.
    • Features a detailed molded plastic depiction of the cab, with photo-etched front grille and interior detail features.
    • This model’s front axles feature the first twin steering system seen in the Tamiya 1/14 Truck series.
    • Includes metal components for excellent durability.
    • Install the new separately available Actuator Set (Item 56553) to control its actions via your R/C transmitter.
    • Ladder frame has aluminum side channels and resin cross members. Power from the front motor is delivered to the two rear axles via a propeller shaft.
    • A built-in differential gear on each axle enables smooth cornering.
    • Highly realistic suspension utilizes metal leaf springs and friction dampers.
    • The model enjoys easy driving thanks to the float-mounted die-cast front and reinforced resin rear axles.
    • Three-speed transmission allows shifting via the R/C transmitter (Note: only one gear is usable when towing).
    • Headlights and taillights can be lit up with separately sold LEDs, and the model is compatible with Item 56523 Tractor Truck Multi-Function Control Unit "Euro-Style" (MFC-03).
    • Compatible TROP truck option parts: 56523, 56531, 56538, 56548, 56549, 56550, 56551, 56553.
    • Requires: Tamiya 4-Channel R/C system, ESC, 7.2volt battery and compatible charger, and Tamiya TS and acrylic paints

    Specifications:

    • Adjustable Gear Ratio Yes
    • Bearings Metal bearings and bronze bushings
    • Body Material ABS Plastic
    • Body Stickers Included
    • Chassis Material Aluminum and ABS plastic
    • Chassis Type Semi-Truck
    • Construction Type Assembly Kit
    • Differential Type Gear
    • Drive Type 2WD
    • Electronic Speed Control (esc) Not Included (sold separately)
    • Motor Brushed 540 Type
    • Requires A 4-Channel radio, 2 servos, ESC, 7.2volt battery with compatible charger, and Tamiya TS spray and Acrylic bottle paints
    • Scale 1/14
    • Shock Damper Oil-filled damper
    • Terrain Use On-Road
  • 2

    Produkter

    Skjul detaljer

    Tamiya 56553 TOW TRUCK ACTUATOR SET 1/14

    Mer informasjon

    Electric Actuator Set for 1/14 Scale R/C Tow Truck

    Dette settet er nødvendig for å fullt ut operere bergings bilen fra Tamiya. Dette gjør at “brillen” kan opereres fullt ut.

    This set allows control of the winch boom/underlift on our brand new Volvo Globetrotter 750 8×4 Tow Truck model (Item 56362). Fit it, and use your transmitter to raise and lower the boom smoothly and steadily.

    1/14 RC This is an assembly type parts set for raising and lowering the winch boom / underlift of the RC tow truck by RC operation. It consists of a spindle cylinder that expands and contracts with a high-precision geared motor, and an ACU-02 unit that controls the motor. If you put the front wheel of the 1/14 RC trailer head on the tire fork of the underlift and raise the winch boom, you can run in the towed state as it is. It is also equipped with a limit switch that detects the angle of the winch boom and automatically stops, and a clutch mechanism that protects the mechanism from overload. With a manual switch.

    Consists of a geared motor, spindle cylinder, ACU-02 unit that controls the motor, limit switch, power supply branch cord, manual toggle switch, etc.

    Set Contents/Information
    • ACU-01 Actuator Control Unit x1
    • 7.2V Geared Motor (ratio: 64:1)
    • The geared motor moves the spindle shaft and links, which raises the boom at a slow and steady speed. The attached underlift moves in conjunction, too!
    • A toggle switch also allows manual operation.
    • When fitted, this system allows your truck to tow loads such as other tractor truck heads (without trailer).
    • Clutch system is installed to mitigate potential damage from overloads.

  • 3

    Produkter

    Skjul detaljer

    Tamiya 56548 ALU. SHIFT SERVO HORN TRUCK

    Mer informasjon

    Smooth, concise shift changes for your 1/14 scale R/C truck await with this precision aluminum servo horn, which in turn helps lessen wear and tear on gear and clutch components.

    Item Contents/Information

    • Aluminum Shift Servo Horn x1
    • Hi-Torque Servo Saver Spring (Small) x1
    • Hi-Torque Servo Saver Spring (Large) x1
    • Small parts for attachment are also included.
    • Compatible with 1/14 scale R/C truck models.

  • 4

    Produkter

    Skjul detaljer

    Tamiya 56538 REIN. OUTPUT SHAFT SET

    Mer informasjon

    Denne er en forsterket versjon av giraksel B som blir brukt i 1/14 R/C Tamiya sine lastebil modeller. Det forsterkede materialet er mye mere motstandsdyktig mot slitasje, forbedrer kraftoverføring, samtidig som det reduserer motreaksjon og beskytter girene.

    • Forsterket utgående aksel x1
    • Små deler for festing er inkludert.

  • 5

    Produkter

    Skjul detaljer

    Carson 501004 FS Reflex Stick Multi 14Ch LCD 2.4GHz

    Mer informasjon

    Reflex Stick Multi Pro LCD

    Professional, modern and technically high-quality.

    14-Channel remote control system with 15 model memories for universial use in many RC vehicles and vessels.

    You controll these 14 channels independently by the means of 2 control sticks and 10 switches, which has many uses, such as light, sound, horn, winch, support legs, water pump and water monitor, to name a few.

    The Reflex Steck Multi Pro 14 channel LCD System is fully compatible with Tamiya multi-functionunits for Trailers, and Tamiya DMD units.

    Specs:

    • Operating voltage transmitter: 4.8-6V (4 AA batteries)
    • 2.4G FHSS-System (Frequency-hopping spread spectrum)
    • 2.4G servo reverse (reversal of running direction) and trimming function for channels.
    • 4x button ON/OFF/ON, 4x switch ON/OFF/ON, 2x rotary potentiometer
    • Power supply to the receiver: 4.8-6V
    • Plug system Graupner J/R
    • Dual rate for steering (path limitation of the servos
    • EPA (servo travel limit)
    • ABS function
    • EXP (exponential)
    • failsafe function
    What`s in the package:
    1x 14 channel transmitter
    1x 14 channel receiver
    1x manual

    Tamiya 56523 MFC-03 - Truck "Euro Style"

    Mer informasjon

    The popular Multi-Function Control (MFC) unit for R/C tractor trucks, which adds a whole extra layer of realism to driving, receives an update.

    This unit allows transmitter trim levers to be combined with stick control use, meaning you can enjoy lights, sounds and vibrations coordinated with actions while driving your R/C tractor truck model.

    This version of the MFC features engine sounds which were recorded from a real European truck's L6 diesel engine for amazing realism.



    •Features 33 different types of sound, including engine ignition and shutdown, horn, gear changes, brakes, air sound effects and so on. A 60mm-diameter full-range speaker in a resin case provides excellent quality.

    •Up to 21 actions can be controlled using a 4-channel transmitter. Tamiya Attack 2.4 GHZ Radio System 4-channel recommended for best compatibility.

    •Light operation and volume adjustment are also possible using the transmitter.

    •Includes white, red and yellow high brightness LEDs to duplicate truck HID lights with precision.

    •An ESC has been built in to the unit, enabling realistic running at very low speeds.

    •The MFC unit can be run in three modes: R/C mode with Multi-Function (lights and sounds) off; Multi mode, with R/C and multi-function on; Demo mode, which allows display of lights and sounds only.

    •Can be used for support leg operation when employing Item 56505 Motorized Support Legs.

    •Cannot be used together with Item 53909 TLU-01 or Item 53937 TLU-02 LED light units.

    •Requires separately sold 4ch transmitter with slide trims, 4ch receiver and 2 servos (3 if using Item 56505). Tamiya Attack 2.4 GHZ Radio System 4-channel recommended for best compatibility.

    Savox SC-0251MG Plus Servo 16Kg 0,18s Metal Gear

    Mer informasjon

    Savöx SC0251MGPLUS - Larger Standard Digital Servo - 0.18s/60° 16kg/cm @ 6V

    The Savox SC-0251MGP is a high torque, metal-geared, digital servo which is suitable for many applications.

    Features:

    • Soft Start
    • Sanwa SSR compatible
    • Metal gear train ensures durability under harsh situations
    • Slightly taller case design
    • Ideal for aircraft and some car applications


    Specifications:

    • Torque @ 4.8v: 13kg/cm
    • Torque @ 6v: 16kg/cm
    • Speed @ 4.8v: 0.20s/60°
    • Speed @ 6v: 0.18s/60°
    • Dimensions L x W x H: 40.7 x 20 x 42.4mm
    • Weight: 61g
    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 300mA @4.8V, 350mA @6.0V
    • Stall Current (at locked): 2600mA @4.8V, 3200mA @6.0V
    • Idle Current: 5mA @4.8V, 6mA @6.0V
    • Wire Length: 300 +/- 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 120° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 164° (800 → 2200 µ second)
    • Refresh Rate: 240 Hz
    • Motor Type: Brushed

    Savox SC-0252MG PLUS - 0.19speed/10.5kg

    Mer informasjon

    Savöx Digital Servo SC-0252MG


    • 4.8V Speed: 0.23
    • 6.0V Speed: 0.19
    • 4.8V Torque: 7.2 kg-cm
    • 6.0V Torque: 10.5 kg-cm
    • Dimensions: 40.7 x 19.6 x 39.4mm
    • Weight: 49 gram
    • Gear: Metal
    • Ballbearing: 2
  • 6

    Produkter

    Skjul detaljer

    SkyRC e680 Charger LiPo/LiFe/LiHV, NiMH 80W 240VAC

    Mer informasjon

    SkyRC E680 er en computerlader som dekker de fleste ladebehov, den har en makseffekt på 80W og maks ladestyrke er 8.0A. Laderen har også innebygget balanserer og det følger med ladekontakt med XT60-plugg.

    SkyRC E680 er en god multilader som kan lade LiPo, LiHV, LiFe, LiIon, NiHm, NiCd, AGM og Pb batterier. Laderen kan bruke både 12V og 220V kilde inn, så denne laderen vil kunne brukes både i felten på ett bilbatteri og på hobbyrommet plugget rett i veggen. Laderen har max ladestyrke på 80W/8A, så ett 2cell LiPo kan da lades på 8A, 3cell LiPo kan da lades på ca 7A. Ett 6cell LiPo på ca 3,6A.

    SkyRC E680 12/220V 80W Computerlader


    Det følger med 220V strømkabel, kabel med krokodilleklemmer for tilkobling til eksempelvis 12V bilbatteri, XT60-ladeledning og 2-6S XH-balanseringsbrett.(SK-600020-04)

    SkyRC E680 12/220V 80W ComputerladerSpesifikasjoner:

    Vekt 390gram
    Innspenning DC 11-18V
    Innspenning AS 100-240V
    Display LCD
    Størrelse 135x110x60mm
    Backlight Ja
    Antall celler LiPo 1-6S
    Antall celler NiMh/NiCD 1-15
    PB 2-20V
    Ladestyrke 0.1-8,0A
    Maks Ladeeffekt 80W
    Utladeeffekt max 10W
    Minne 10 modellminner


    Skal man lade batterier med andre typer strømkontakt, må tilbehør kjøpes. Skal man balansere LiPo med annen type balanseringskontakt, kjøp eksempelvis SkyRC Multi balanseringskontakt. Se under for tilbehør.

    Viktig info!
    Husk at ved lading av lipo batterier skal man for å oppnå full balansering av pakken kople til begge kontaktene fra batteriet og velge LiPo Balance programmet, ikke LiPo Charge.


    SkyRC e680 Multi-Chemistry Charger/Discharger

    Specifications:

    • AC Input: 100-240Volt AC
    • DC Input: 11-18Volt DC
    • Circuit Power: Max. Charge Power 80W
    • Max. Discharge Power 10W
    • Charge Current Range: 0.1-8A
    • Discharge Current Range: 0.1-2A
    • Current Drain For Balancing LiPo: 300mA/cell
    • NiCd/NiMH Battery Cell Count: 1-15 cells
    • LiPo/LiHV/LiFe/Lilon Cell Count: 1-6 cells
    • Pb battery voltage: 2-20V
    • Net Weight: 390 g
    • Dimensions: 135 x 110 x 60 mm

    Vant 61-1004 3300mAh 7.2v NiMh Tamiya plug

    Mer informasjon

    Kvalitets NiMh pakke med meget høye utladings egenskaper! Rimelig pakke som leverer!

    Kapasitet på 3300 mAh

    Spenning er 7.2V

    TAMIYA CONNECTOR

    Lengde: 135mm

    Høyde:    24mm

    Bredde:   46mm

    Radient 010075 CHARGE LEAD, 4MM BULLET TO TAMIYA MALE, 14AWG, 15

    Mer informasjon

    CHARGE LEAD, 4MM BULLET TO TAMIYA MALE, 14AWG, 150MM (ESC END)

  • 7

    Produkter

    Skjul detaljer

    Tamiya 56550 Led Light For MFC White 1100mm White Cable

    Mer informasjon

    This TAMIYA LED product allows you to light up longer R/C truck models. They are compatible with Tamiya’s famous and super-realistic Multi-Function Control units MFC-01 and MFC-03. LEDs come ready to use, with easy-use connectors and tag stickers included.

    • 1,100mm 3mm White LED Cable x1
    • Features two 3mm diameter white LEDs for use as reverse lights.

    Tamiya 56551 MFC LED (3mm Yellow x2 1,100)

    Mer informasjon

    Tamiya 56551 MFC LED (3mm Yellow x2 1,100)

    Tamiya is delighted to announce the release of these LED products, which will allow you to light up longer truck models. They are of course compatible with Tamiya’s famous and super-realistic Multi-Function Control units MFC-01 and MFC-03. LEDs come ready to use, with easy-use connectors and tag stickers included.

    Contents/Information

    • 1,100mm Yellow LED Cables x2
    • Each cable features a 3mm diameter yellow LED for use as a turn signal.

    Tamiya 56549 MFC LED (3mm Red 1,100)

    Mer informasjon

    Tamiya MFC LED (3mm Red 1,100)

    Tamiya is delighted to announce the release of these LED products, which will allow you to light up longer truck models. They are of course compatible with Tamiya’s famous and super-realistic Multi-Function Control units MFC-01 and MFC-03. LEDs come ready to use, with easy-use connectors and tag stickers included.

    Contents/Information

    • 1,100mm 3mm Red LED Cable x1
    • Features two 3mm diameter red LEDs for use as brake lamps.

⚠ Du har ikke valgt alternativer for alle produktene.

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.
