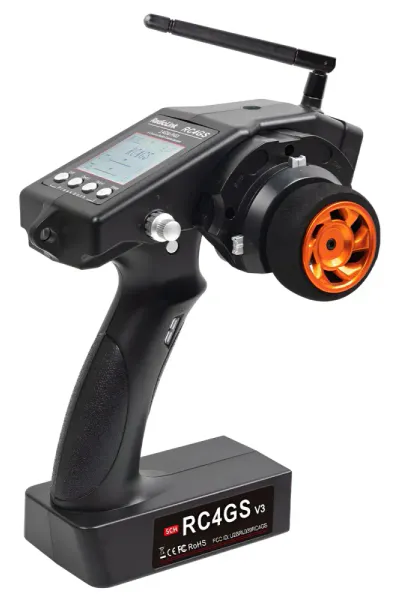

The RadioLink RC4GS V3 is a 5-channel transmitter for RC cars, boats, life buoys, tracked vehicles and robot projects with stable control, long range, telemetry, cruise control, dual mix control and a gyro-integrated receiver; this version comes with two R6FG receivers with an integrated gyro, practical if you want to run several models or expand your RadioLink system right away.
The RC4GS V3 uses FHSS spread spectrum with 67-channel pseudorandom frequency hopping for strong interference protection, and is specified for up to 400 metres of range under open conditions; the actual range varies with the model, installation, antenna placement and surroundings.
The RC4GS V3 suits crawlers, tanks, tracked vehicles, bashers, short course trucks, drift cars, petrol-powered RC cars, mini RC cars, monster trucks, off-road cars, sailboats, trimarans, bait boats and remote-controlled life buoys; CH1 steers, CH2 controls throttle and CH3–CH5 are programmed to suit the model.
The RC4GS V3 supports telemetry for RSSI, receiver voltage (shown after binding) and model voltage (via cable to the ESC and battery); with the R8FGH and R16F the model battery is supported up to 14S, 58.8 V and with the R7FG or R8FG up to 8S, 33.6 V.
The cruise control system is especially useful when driving crawlers, for example downhill where it is hard to keep the throttle steady manually, and provides smoother driving in technical terrain.
The RC4GS V3 stores settings for up to 30 models, so you can easily switch between several cars, boats or projects without setting up the radio again.
The RC4GS V3 can assign any ID numbers to up to 10 bound receivers, useful for rescue, towing or when several models are controlled with the same transmitter – for example when one model boat tows another.
A switch or button can activate D/R during driving so the steering throw is changed quickly without the LCD menu, practical for four-wheel steering or models that require quick adjustment of the steering response.
Two channels of choice can be set as mixed; for logging trucks, for example, front- and rear-wheel steering can be combined for a smaller turning radius and better manoeuvrability.
The DSC port can be used for the simulator function and supports VRC Pro, CarX and Assetto Corsa Competizione, and can also be connected to TBS Crossfire.

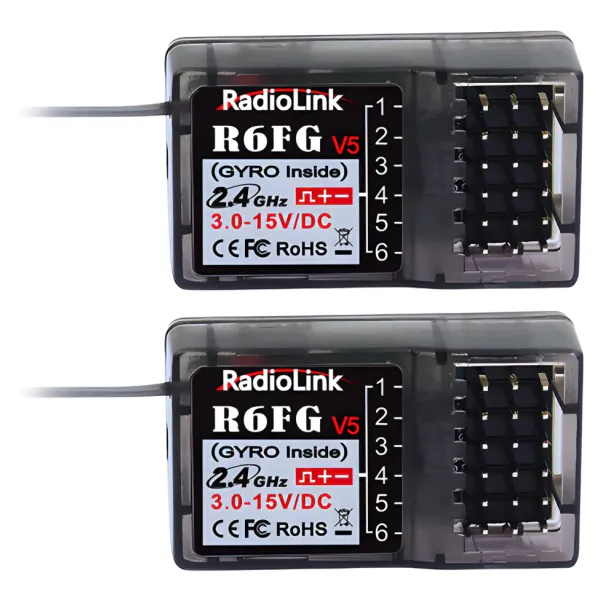

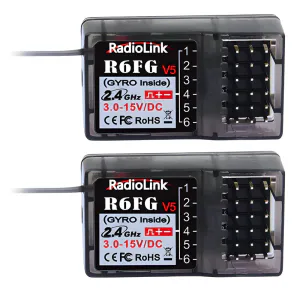

The included R6FG receivers have an integrated gyro and support for high-voltage servos; the gyro helps the vehicle hold its direction and reduces drift at higher speeds, and the gyro sensitivity is adjusted via STD or CH3, by default via the VR switch.
The RC4GS V3 is designed for comfortable use during longer driving sessions, with the throttle control, grip thickness and switch placement providing a more natural and precise control feel.
The RC4GS V3 is updated via computer with a USB cable and the software guides you through the process; the USB port is for upgrading only, not charging.
The RC4GS V3 comes with two R6FG receivers and is also compatible with several other RadioLink receivers.
The maximum range is tested in open areas without interference and the actual range can vary with the model, installation, antenna placement, surroundings and signal conditions; telemetry for the model battery requires a compatible receiver and a correct connection, the USB port is for upgrading only, and always check that the receiver, model type, channel settings, gyro sensitivity and telemetry are configured correctly before use.
