Informasjon

HPI Venture pakke med motor,esc og servo oppgradering. Og en god lader og lipobatteri.

HPI Venture pakke

** Ikke på lager

Fra 5.995,-

41% Rabatt Pris utenom pakke 10.171,-

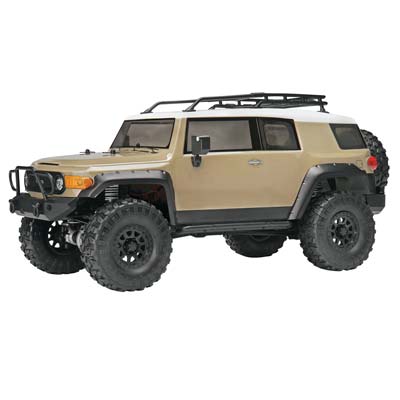

HPI Racing 117165 1/10 Venture Toyota FJ Cruiser 4WD RTR Beige

Mer informasjon

This is the 1/10 scale Electric Powered, 2.4GHz Radio Controlled Ready to Run Toyota FJ Cruiser Venture Crawler in Sandstorm Beige from HPI.

FEATURES

Chassis: Steel C-channel chassis rails and cross braces, adjustable side sliders

Drive: Four wheel with central transfer case, telescoping driveshafts and solid axles with metal diff covers

Differentials: Full-time locked, aluminum pumpkin size cover for best ground clearance

Transfer Case: Straightens and lowers center drive shafts for efficient power transfer, prevents motor stall for best climbing action

Motor: Front mounted 35 turn crawler spec

ESC: HPI waterproof SC-3sWP2 Crawler Edition

Radio: HPI TF-40 2.4GHz 3-channel system with waterproof receiver, and HPI water-resistant SS-20WR steering servo

Body: Trimmed and painted officially licensed Toyota FJ Cruiser with functional roof rack, mirrors, front bumper with brush guard, light mounts and D-ring shackles, rear bumper with swing away spare tire mount and D-ring shackles, adjustable body mounts for any style off-road body, full braced rear mounts

Shocks: Oil-filled, aluminum body, dual stage springs

Shock Towers: Composite plastic

Steering: BTA (Behind the Axle) linkage for improved approach and departure angles, CMS (Chassis Mounted Servo) realistic setup

Zero Ackermann high steer knuckle design for better clearance and tighter turning radius, Ackermann refers to the effect of the inner front wheel turning faster that the outer front wheel during turns

Suspension: 3-link front and triangulated 3-link rear suspension, aluminum panhard mounts

Wheels: CR-10 beadlock style multi-spoke 1.9" 12mm hexes

Tires: 1.9" Rockthorn 38mm soft S-Compound tires with chunky treadblocks, 4.3 x 1.5" (109 x 38mm)

Ball Bearings: Full set

INCLUDES

Preassembled Toyota FJ Cruiser Venture Crawler with Motor, ESC, Radio System, Trimmed & Painted Body, NiMH Battery, Charger, four AA Batteries, Instruction Manual

REQUIREMENTS

Track and maintenance equipment

SPECIFICATIONS

Vehicle;

Length: 20.7" (527mm)

Width: 9" (227mm)

Height: 9.4" (238mm) with roof rack, 8.5" (217mm) without

Wheelbase: 12.3" (311mm)

Front Overhang: 3.9" (101mm)

Rear Overhang: 5.3" (135mm)

Running Weight: 5.3lbs (2.4kg)

Weight without Body: 4.7lbs (2.1kg)

Break-over angle: 44.5°

Approach Angle: 55°

Departure Angle: 45.5°

Max Climb Angle: 49°

Max Tilt Angle: 28°

Axle Articulation: 30°

Ground Clearance 2.7" (68mm)

Ground Clearance at Standard Ride Height: 2.4" (60mm)

Axle Ground Clearance: 1.3" (32mm)

Drivetrain Ratio: 7.6:1

Transmission Gearing: 1.53:1

Axle Gearing: 3.31:1

Transfer Case Gearing: 1.5:1

Castle Creations MAMBA Micro X2 16,8V WP Sensored ESC 4mm

Mer informasjon

CASTLE CREATIONS MAMBA MICRO X2 1/18 SENSORED ESC WITH 4MM BULLETS

The Mamba Micro X2 is a refresh of our popular 1:18 scale Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT. This is the perfect upgrade for 1:18th scale 2WD or 4WD vehicles up to 2.25 lbs. The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing). You can now purchase the Mamba Micro X2 Crawler Edition ESC paired with our Slate Crawler motors.

Important Product Update, 8/2/2022.

Due to ongoing supply chain disruptions, we have been unable to manufacture the Micro X2. The parts in question are integral to the onboard 2-amp BEC. In an effort to provide the Micro X2 for sale again, we have removed the internal BEC and are including our external 10-amp CC BEC (a $24 value) with every Micro X2 purchase. This upgraded BEC has a wider range of BEC voltages and much higher current capacity. The retail price for the ESC and combos has not changed. For instructions on how to install the CC BEC, please visit www.castlecreations.com/microx2BEC.

Input Voltage range 2S-4S
Waterproof design; included CC BEC is not waterproof.
Sensored Motor capable (with optional sensor harness)
Convenient transmitter programming for six common adjustable settings.
Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
Audible Alerts that will notify you of possible issues with calibrations and error conditions.
Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.

Mamba Micro X2 ESC Purchase Includes:

Mamba Micro X2 ESC with 3.5mm connectors
External 10-amp CC BEC
Coupon for free Castle Link USB adapter
Quick Start Guide
Castle Decals

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

Specs:

Input Voltage Range: 2S-4S LiPo (16.8V Max)
Operating Environment: Waterproof* design allows for use in nearly any environment
Brake: Proportional
Reversible: Yes, but may be disabled
On/Off Switch: Yes, waterproof
Cooling Fan: Not included
Size (L x W x H): 41.6 x 29.4 x 21.3 mm
Weight (with wires): 47 gr
Connectors: 4 mm bullets
Items Needed for Operation: Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended

Product Use Statements:

Applying voltages higher than 16.8 volts will cause irreparable damage to your controller
Minimum recommended battery capacity for 1/18 scale vehicles is 1500mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell
Mamba Micro X2 has 4mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.

Application Guidelines:

1/14 scale RC vehicles weighing up to 1.3kg and 1/10 scale low speed crawler vehicles up to 4kg
Recommended Motors:
- Castle 1406-1900Kv Sensored Motor
- Castle 1406-2280Kv Sensored Motor
- Castle 1406-2850Kv Sensored Motor
Programmability: Additional settings and software updates available via Windows®-based Castle Link software and USB adapter or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters

Tech Notes:

*Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

Castle Creations Crawler 4-Pole Sensored BL Slate 1406-2280kV

Mer informasjon

This is the Castle Creations 1406-2280Kv Brushless Sensored Motor.

FEATURES

Ideal for 1/10 scale rock crawlers, trail rigs, touring cars, stadium
trucks and buggies powered by 2-4S LiPo batteries with appropriate
gearing
ROAR standard sensor port and labeled connections
SMARTSENSE uses sensors to provide smooth starts, excellent torque
and low speed driveability
CNC machined 6061-T6 aluminum can, slate gray in color
High performance 0.2mm steel lamination stacked stator
High strength 180°C grade neodymium sintered magnets with Kevlar wrap
Oversize NMB grade ball bearings
Rebuildable

INCLUDES

1406-2280Kv Brushless Sensored Motor with Sensor Wire
Three 4mm Female Castle Bullet Connectors

REQUIREMENTS

ESC such as the Castle Creations Mamba Max Pro, Mamba X and Mamba
Micro X

SPECIFICATIONS

Input Voltage Range: 2-4S LiPo
Kv Rating: 2280
Max RPM: 100.000
Can Length: 1.9" (49.5mm)
Can Diameter: 1.4" (36mm)
Weight: 6.9oz (197g) with wires
Shaft Diameter: 1/8" (3.17mm)
Shaft Length: 0.59" (15mm)
Mounting Hole Specifications: M3 @ 25mm
Wire Lead: Castle 13 AWG silicone insulated wire
Connectors: 4mm male Castle Bullet Connectors

SkyRC e680 Charger LiPo/LiFe/LiHV, NiMH 80W 240VAC

Mer informasjon

SkyRC E680 er en computerlader som dekker de fleste ladebehov, den har en makseffekt på 80W og maks ladestyrke er 8.0A. Laderen har også innebygget balanserer og det følger med ladekontakt med XT60-plugg.

SkyRC E680 er en god multilader som kan lade LiPo, LiHV, LiFe, LiIon, NiHm, NiCd, AGM og Pb batterier. Laderen kan bruke både 12V og 220V kilde inn, så denne laderen vil kunne brukes både i felten på ett bilbatteri og på hobbyrommet plugget rett i veggen. Laderen har max ladestyrke på 80W/8A, så ett 2cell LiPo kan da lades på 8A, 3cell LiPo kan da lades på ca 7A. Ett 6cell LiPo på ca 3,6A.

SkyRC E680 12/220V 80W Computerlader

Det følger med 220V strømkabel, kabel med krokodilleklemmer for tilkobling til eksempelvis 12V bilbatteri, XT60-ladeledning og 2-6S XH-balanseringsbrett.(SK-600020-04)

SkyRC E680 12/220V 80W Computerlader Spesifikasjoner:

Vekt	390gram
Innspenning DC	11-18V
Innspenning AS	100-240V
Display	LCD
Størrelse	135x110x60mm
Backlight	Ja
Antall celler LiPo	1-6S
Antall celler NiMh/NiCD	1-15
PB	2-20V
Ladestyrke	0.1-8,0A
Maks Ladeeffekt	80W
Utladeeffekt	max 10W
Minne	10 modellminner

Skal man lade batterier med andre typer strømkontakt, må tilbehør kjøpes. Skal man balansere LiPo med annen type balanseringskontakt, kjøp eksempelvis SkyRC Multi balanseringskontakt. Se under for tilbehør.

Viktig info!
Husk at ved lading av lipo batterier skal man for å oppnå full balansering av pakken kople til begge kontaktene fra batteriet og velge LiPo Balance programmet, ikke LiPo Charge.

SkyRC e680 Multi-Chemistry Charger/Discharger

Specifications:

AC Input: 100-240Volt AC
DC Input: 11-18Volt DC
Circuit Power: Max. Charge Power 80W
Max. Discharge Power 10W
Charge Current Range: 0.1-8A
Discharge Current Range: 0.1-2A
Current Drain For Balancing LiPo: 300mA/cell
NiCd/NiMH Battery Cell Count: 1-15 cells
LiPo/LiHV/LiFe/Lilon Cell Count: 1-6 cells
Pb battery voltage: 2-20V
Net Weight: 390 g
Dimensions: 135 x 110 x 60 mm

Vant 5000352 7,4V 5000mAh 35C Wire Lead Hard Case Battery With D

Mer informasjon

Merke
Vant

Spenning
7.4V

Form
Hardcase

Type
LIPO

Kontakt
Deans/T-plugg

Størrelse
140*48*26mm

Power HD LW-20MG Waterproof Servo 20kg/0.16s

Mer informasjon

The Power HD LW-20MG is the latest servo that features an all-aluminum case, copper and aluminum gears, a powerful coreless motor and it pulls up to 20kg-cm of torque at a speed of 0.16s. The standard sized servo is also waterproof making this a great servo for crawlers, 1/8 scale trucks and buggies. It comes black anodized and with laser-etched graphics.

Spesifications:

Torque(4.8V):	18.0 kg-cm (250.0 oz/in)
Torque(6.0V):	23.0 kg-cm (319.4 oz/in)
Speed:	0.14 sec (4.8V) ? 0.12 sec (6.0V)
Operating Voltage	4.8 ~ 6.0 DC Volts
Weight:	60.0 g (2.12 oz)
Bearing Type	Ball Bearing x 2
Motor Type	Coreless Motor
Gear Type	Copper & Aluminum
Working frequence	1520 s / 333hz
Size:	40.7 x 20.5 x 39.5 mm ( 1.6 x 0.80 x 1.55 in)

Bronto Ladekabel - XT60 til T-Plugg (Deans)

Mer informasjon

Bronto ladekabler er et must for RC-entusiasten. Ladekabelen er utstyrt med kvalitets 14AWG ledninger. Ladeledningen har en praktisk lengde på 30cm, noe som er godt egnet når du f.eks skal legge batteriet trygt i en sikker ladebag mens det lades.

Ladekabel med T-plug til XT60-plugger. Benyttes for lading av batterier med T-plugg, og kobles rett i ladere med XT60 tilkobling.
