This is the Electric Powered, Radio Controlled, 1/10 Scale
RTR HPI Crawler King with the Ford Raptor Body.
FEATURES
Chassis: Plastic ladder frame-style TVP (Twin Vertical Plate)
Drive: Four wheel shaft, authentic straight axle design allows each
tire to contact the ground at exactly 90° for maximum contact
Motor: HPI 55 turn Saturn high torque crawler
Radio: HPI TF-11 2.4GHz with HPI SF-10W waterproof steering servo,
waterproof receiver box, four AA batteries for transmitter

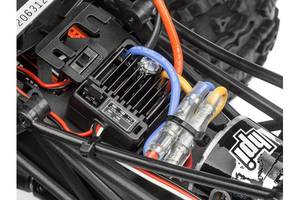

Electronic Speed Control: HPI SC-3SWP2
Shocks: Oil-filled, composite body
Body: Trimmed and painted Ford SVT Raptor pickup with custom
"digital mud" design
Body Mounts: Fit all HPI monster truck bodies and adjust up or down
to fit SUV and pick-up bodies
Suspension: Three link off-road, with over 6" (152mm) of travel
Tires: HB Crawler 2.7" (79mm) wide, 5.3" (135mm) diameter
Wheels: Eight spoke beadlock style. black in color
Spur Gear: 90T 48 pitch plastic
Pinion Gear: 21T 48 pitch steel
Battery: 6-cell 7.2V 2000mAh NiMH with Standard connector
Battery Charger: wall type
Ball Bearings: Full set included
INCLUDES
RTR HPI Crawler King Rock w/Ford Raptor Body, 2.4GHz Radio System,
Motor ESC, Battery, Charger, four AA Batteries, Decals and
Instruction Manual
REQUIREMENTS
Track and maintenance equipment
SPECIFICATIONS
Vehicle-
Length: 17" (432mm)
Width: 11.7" (297mm)
Height: 10" (254mm)
Suspension Travel: 6" (152mm)
Body-
Length: 18.3" (465mm)
Width: 7.5" (190mm) measured at wheel wells
Height: 4.7" (120mm)
