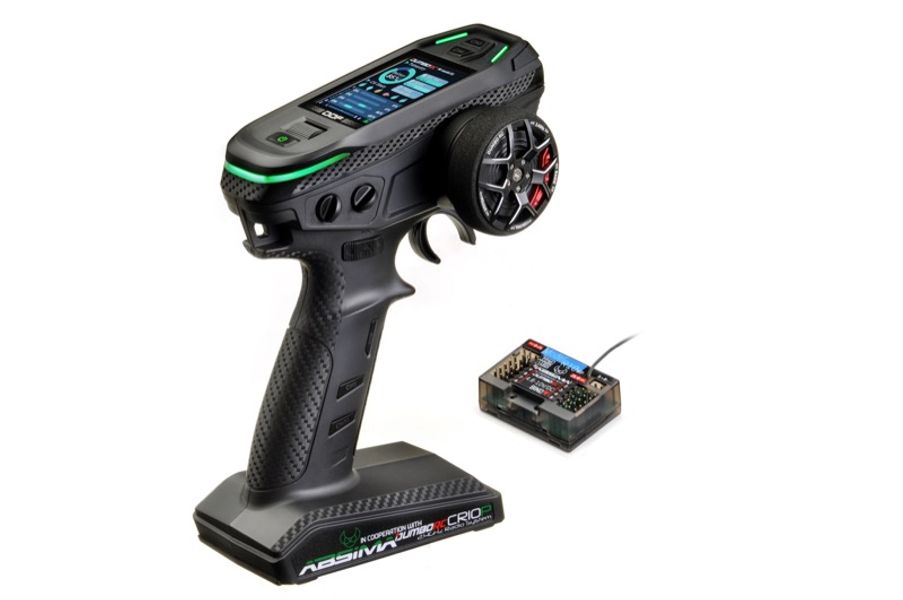

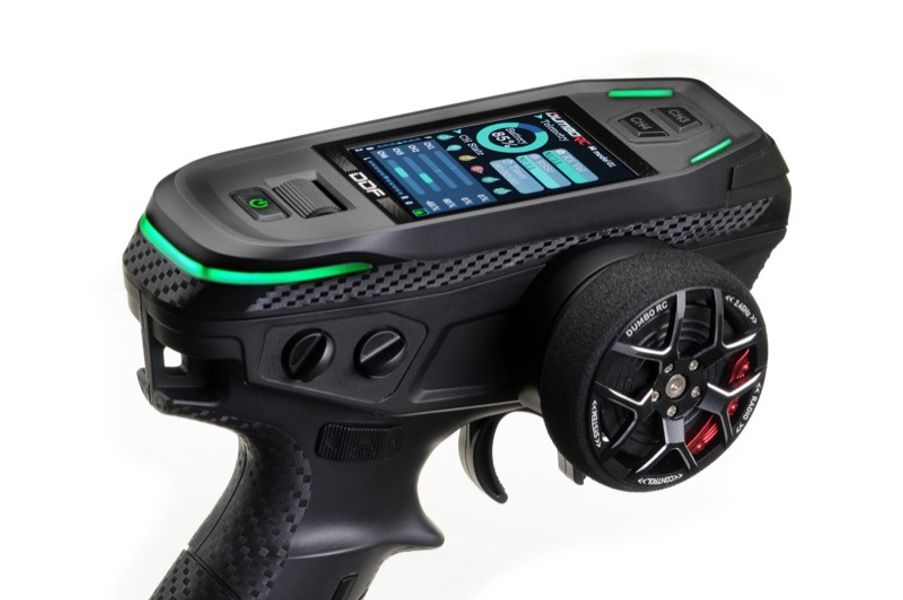

This 10-channel remote control set consists of a transmitter and a waterproof receiver and uses the latest 2.4 GHz frequency communication technology. The system is ideal for crawlers, on-road cars, off-road cars, drift cars and boats.

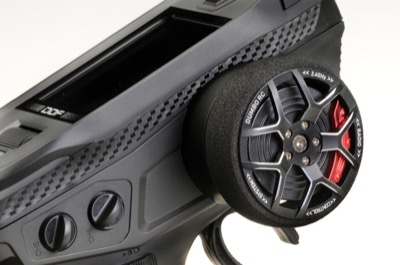

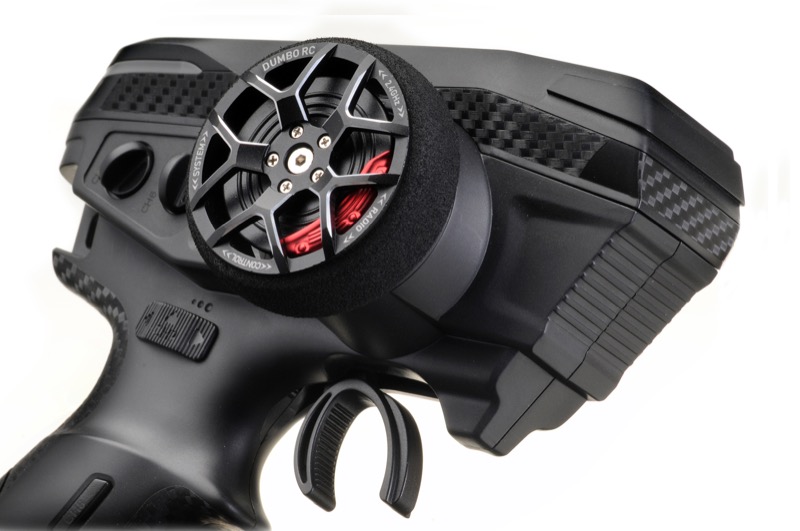

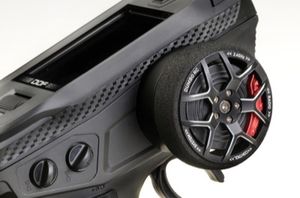

- Aluminum steering wheel with foam rubber cover

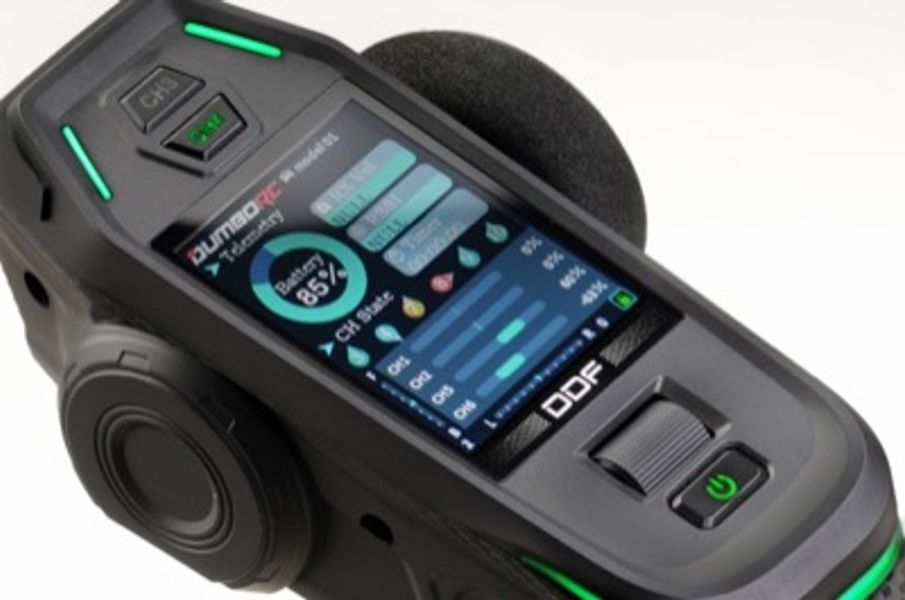

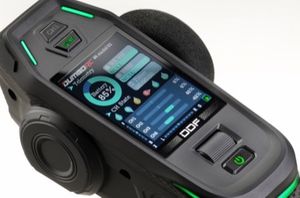

- 4,0 x 5,3cm color display
- Super easy operation with "Push&Spin" button
- 10 model memory

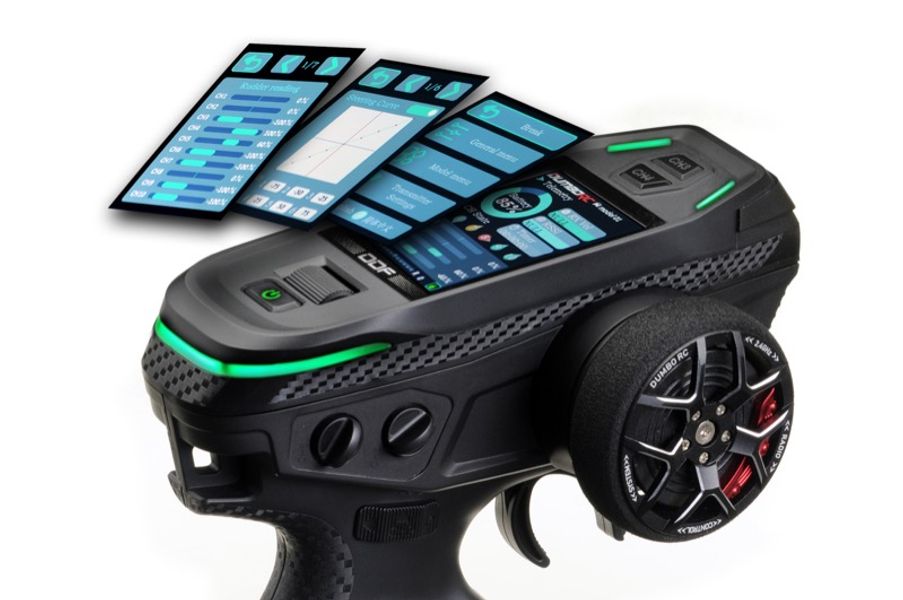

- Simple menu can be operated using just 2 buttons (push&spin wheel and power button)
- Supports tank mix mode and user-defined mix functions
- Independent setting of the servo direction and limitation of all channels
- Steering and acceleration curve can be adjusted
- Gyro and winch mode (separate accessory)
- Operating voltage display on the main screen
- 10 model memory
- Range of up to 350 meters

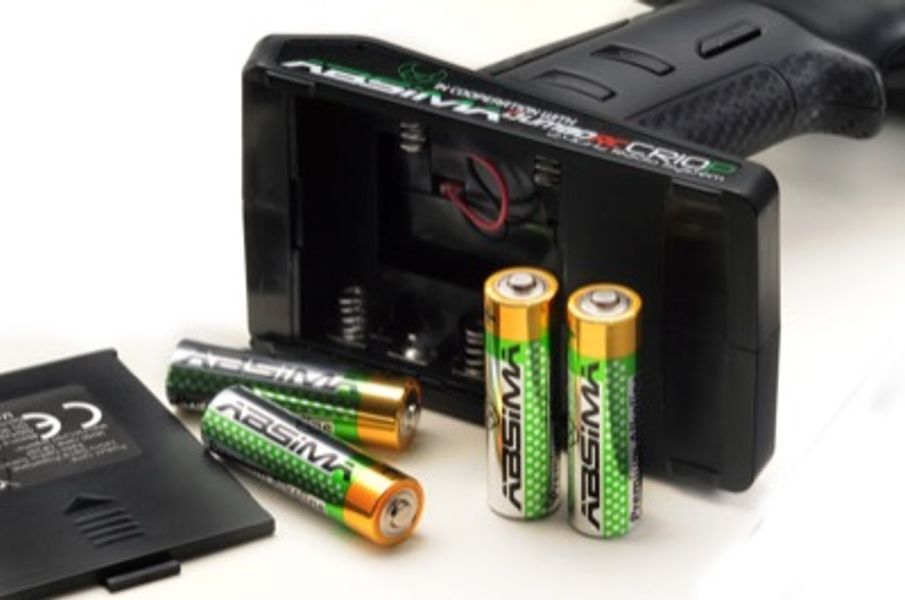

- Transmitter supports 4* AA batteries or 2S LiPo battery (Art. 4140015) as power supply
- Timer
- Various alarm and security functions

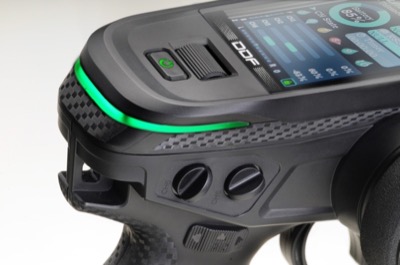

- LED lighting
- Suitable for on-road cars, off-road cars, crawler, tanks, boats
Description of the channels:
CH1: Steering
CH2: Trigger (acceleration/brake)
CH3/CH4: Button

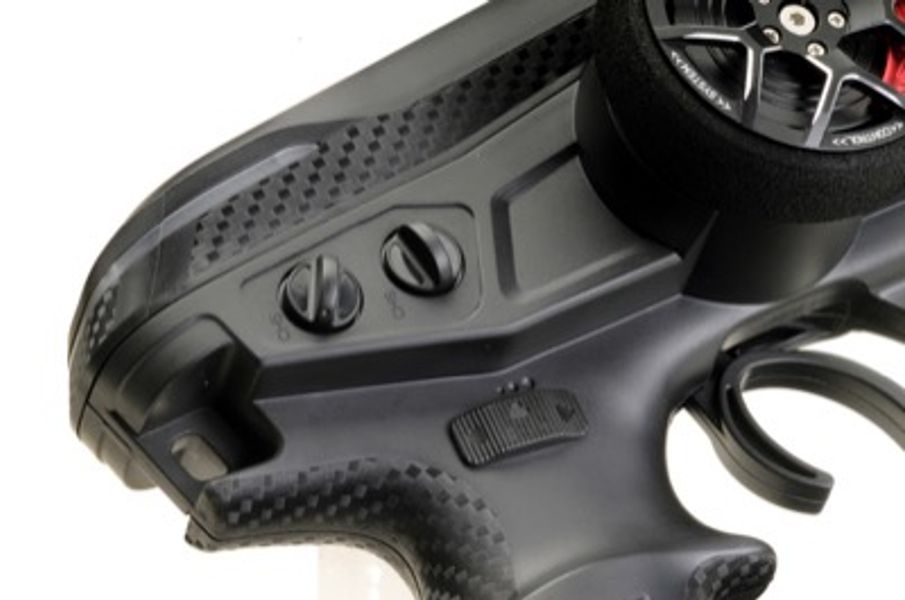

CH5/CH6: Rotary control
CH7: 3-way switch

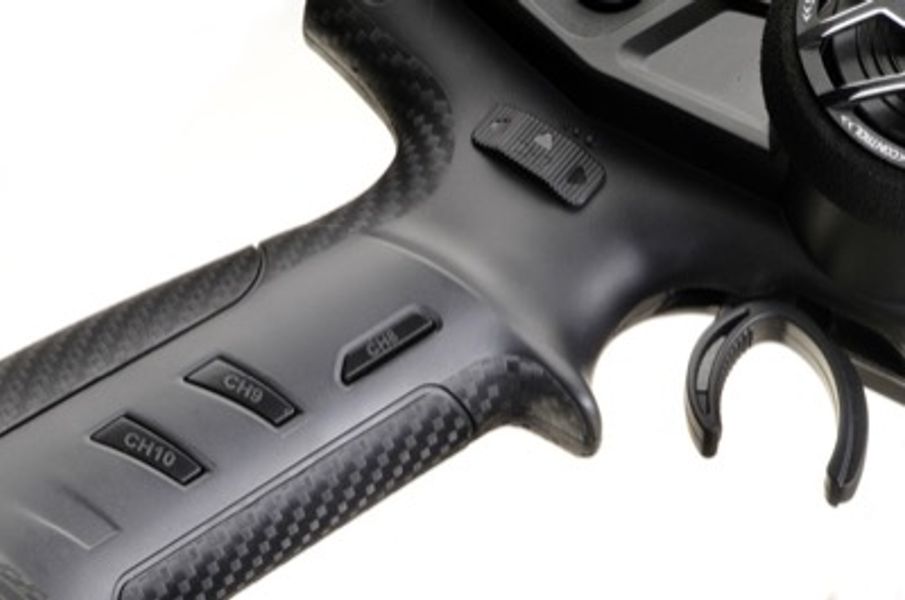

CH8/CH9/CH10: Button
RADIO:
Channels: 10
Frequene: 2.4GHz FHSS
Battery voltage: 4.8V-11.1V (4* AA Mignon / 2/3S LiPo)
Battery size: 50*50*14mm
Temperature range: -10°~+60°
Size(H/B/T): 200x85x150 mm
Weight(without batteries): 285g
RECEIVER:
Item number: 2020025
Model: R10WP
Frequency: 2.4GHz
Channels: 10
Waterproof: Yes
HF-Frequency: 2.4 GHz FHSS
Input power: 4.8–10 V/DC
Weight: 10g
Dimensions: 40*27*13mm
Whats in the box:
1* CR10P radio
1* R10WP receiver
1* Quick start guide (DE/ENG/FR)
